| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57950cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57950cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,374,591,680 | 485,354,880 |
| Size | 2.2 GB | 462.9 MB |
| Events in quadrant A | 15,217,424 | 3,275,368 |
| Events in quadrant B | 18,307,433 | 3,461,068 |
| Events in quadrant C | 23,303,984 | 2,986,025 |
| Events in quadrant D | 28,453,693 | 2,647,807 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70267 | 5 |
| B | 0 | 78458 | 5 |
| C | 0 | 93396 | 5 |
| D | 0 | 109024 | 6 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 686 | 0 |
| B | 0 | 686 | 0 |
| C | 0 | 686 | 0 |
| D | 0 | 686 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 33853 | 179 | 0.528757% |
| B | 33854 | 1057 | 3.122231% |
| C | 33854 | 1773 | 5.237195% |
| D | 33853 | 3688 | 10.894160% |

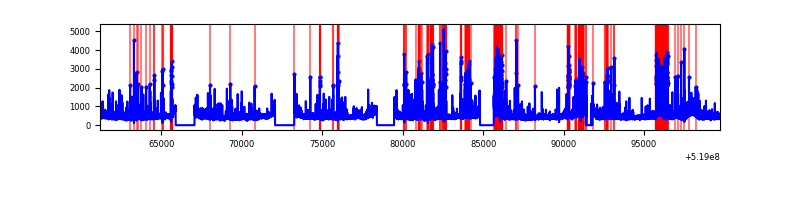

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38523 | 33860 | 19 | 19 | 0.05% | 0.06% |  |
| B | 38524 | 33861 | 456 | 456 | 1.18% | 1.35% |  |
| C | 38524 | 33860 | 1291 | 1291 | 3.35% | 3.81% |  |
| D | 38523 | 33859 | 3451 | 3451 | 8.96% | 10.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 246750 | 265.21 | 3739 | 3647 | 916.6 |
| A | 3 | 14 | 189229 | 202.46 | 3739 | 3647 | 916.6 |
| A | 13 | 248 | 68579 | 70.84 | 3739 | 3647 | 916.6 |
| B | 5 | 185 | 1704074 | 2172.43 | 3664 | 3517 | 782.8 |
| B | 3 | 238 | 783092 | 995.89 | 3664 | 3517 | 782.8 |
| B | 10 | 247 | 313121 | 395.51 | 3664 | 3517 | 782.8 |
| C | 15 | 224 | 7988238 | 8285.05 | 3543 | 3510 | 963.8 |
| C | 14 | 254 | 406654 | 418.31 | 3543 | 3510 | 963.8 |
| C | 12 | 252 | 382968 | 393.73 | 3543 | 3510 | 963.8 |
| D | 12 | 110 | 11965964 | 12419.11 | 3413 | 3267 | 963.2 |
| D | 8 | 240 | 854587 | 883.8 | 3413 | 3267 | 963.2 |
| D | 2 | 249 | 682494 | 705.14 | 3413 | 3267 | 963.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

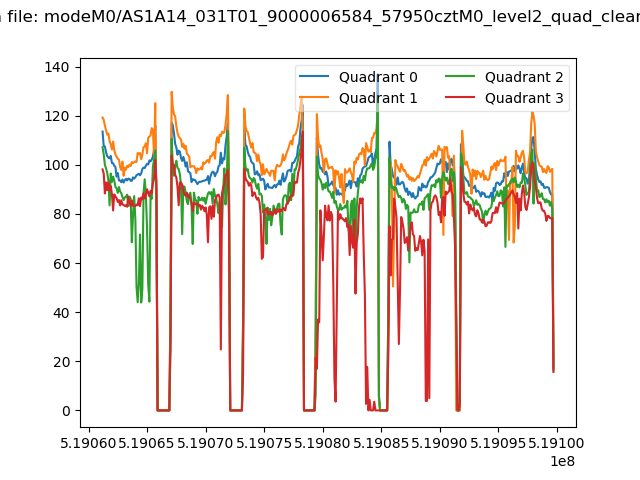

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

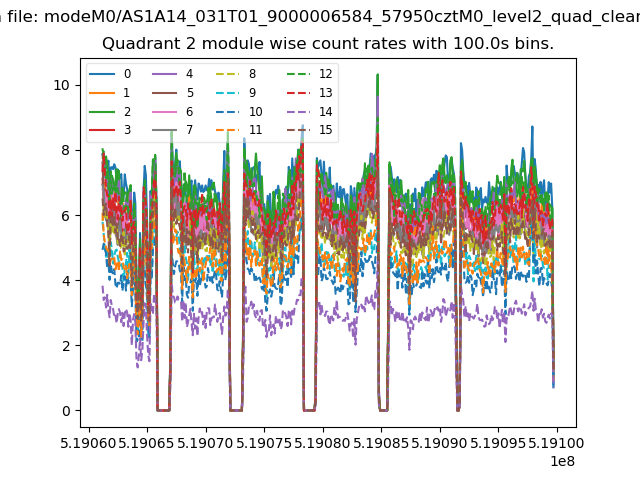

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

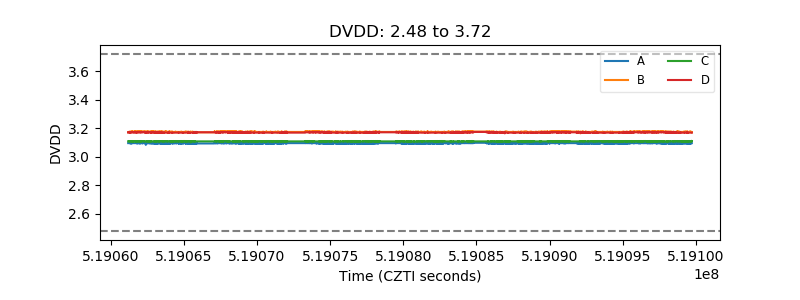

| D_VDD |  |
| Temperature 1 |  |

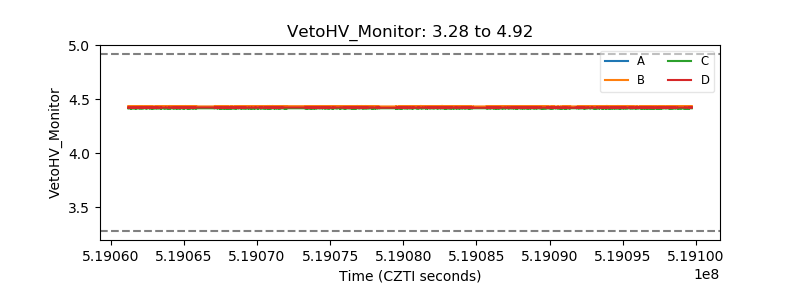

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

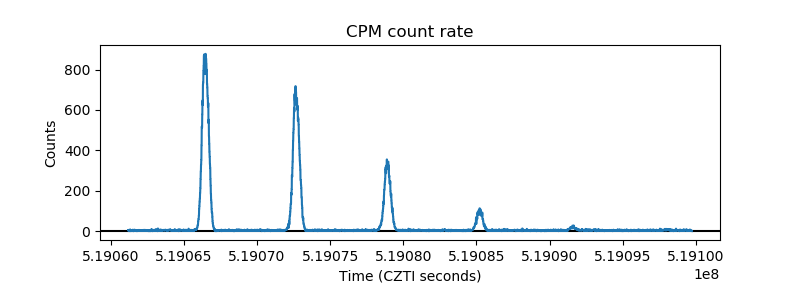

| _CPM_Rate |  |
| CZT Counter |  |

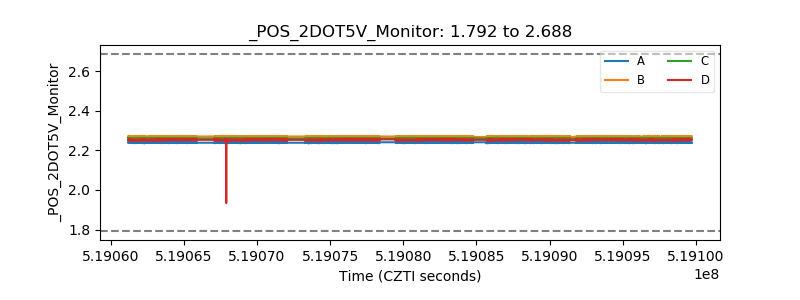

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

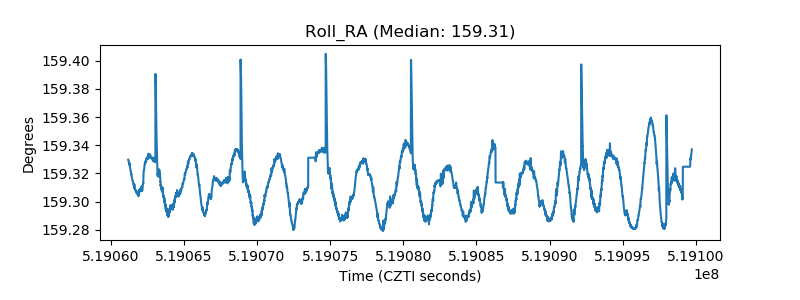

| _Roll_RA |  |
| Veto Counter |  |
