| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57956cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57956cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,847,040 | 97,197,120 |
| Size | 493.9 MB | 92.7 MB |
| Events in quadrant A | 3,116,708 | 652,482 |
| Events in quadrant B | 3,939,627 | 677,014 |
| Events in quadrant C | 4,297,892 | 610,407 |
| Events in quadrant D | 7,292,511 | 534,266 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14159 | 1 |
| B | 0 | 16227 | 1 |
| C | 0 | 17515 | 1 |
| D | 0 | 26486 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6728 | 82 | 1.218787% |
| B | 6727 | 331 | 4.920470% |
| C | 6728 | 199 | 2.957788% |
| D | 6728 | 800 | 11.890606% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7663 | 6728 | 11 | 11 | 0.14% | 0.16% |  |
| B | 7662 | 6728 | 194 | 194 | 2.53% | 2.88% |  |
| C | 7663 | 6729 | 122 | 122 | 1.59% | 1.81% |  |
| D | 7663 | 6729 | 653 | 653 | 8.52% | 9.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 114518 | 608.68 | 752 | 732 | 186.9 |
| A | 3 | 245 | 31140 | 162.66 | 752 | 732 | 186.9 |
| A | 3 | 14 | 29476 | 153.76 | 752 | 732 | 186.9 |
| B | 10 | 246 | 631034 | 4086.39 | 723 | 696 | 154.3 |
| B | 5 | 185 | 58533 | 374.95 | 723 | 696 | 154.3 |
| B | 6 | 51 | 58177 | 372.64 | 723 | 696 | 154.3 |
| C | 15 | 224 | 803895 | 4053.92 | 718 | 711 | 198.1 |
| C | 6 | 223 | 548300 | 2763.85 | 718 | 711 | 198.1 |
| C | 14 | 254 | 58345 | 290.9 | 718 | 711 | 198.1 |
| D | 12 | 110 | 2711565 | 13615.21 | 703 | 673 | 199.1 |
| D | 2 | 249 | 797196 | 4000.46 | 703 | 673 | 199.1 |
| D | 8 | 160 | 377174 | 1890.94 | 703 | 673 | 199.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

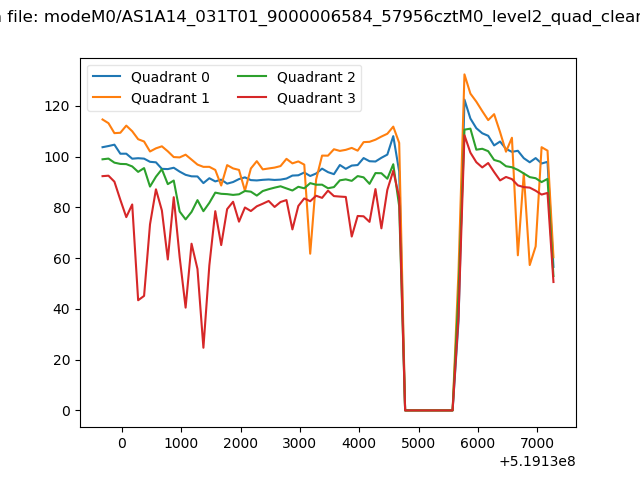

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

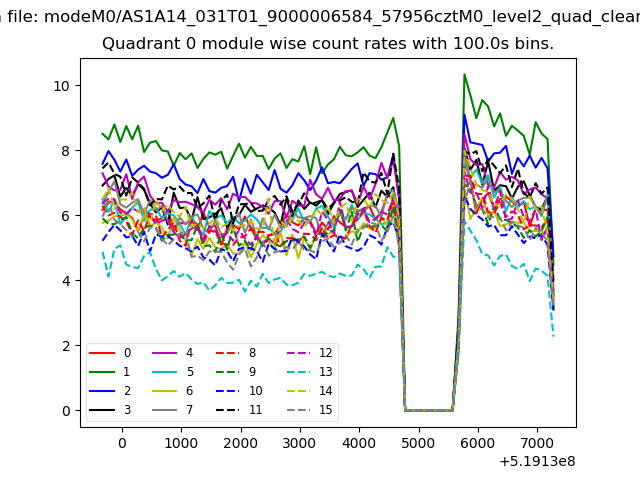

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

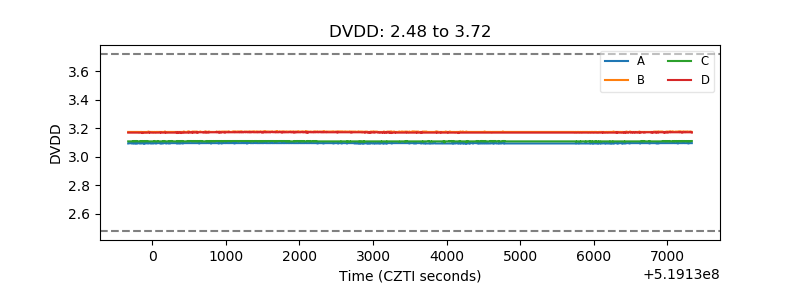

| D_VDD |  |

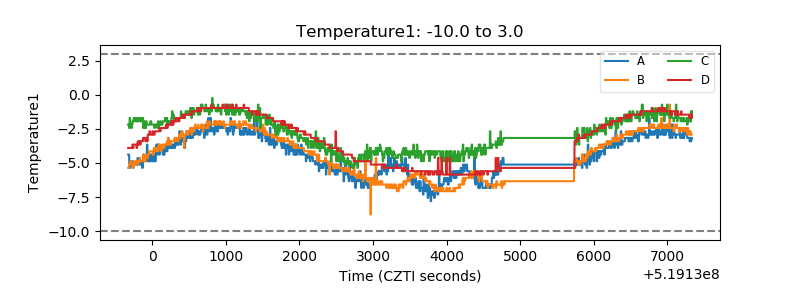

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

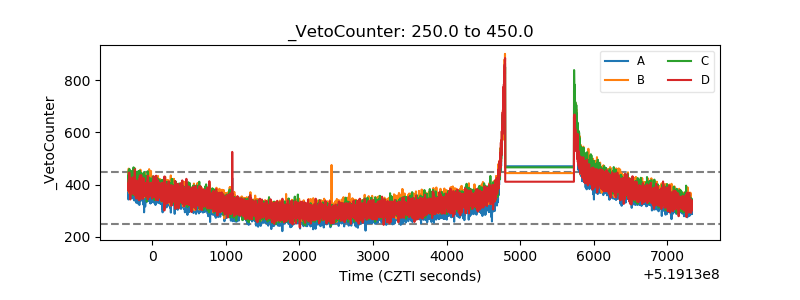

| Veto Counter |  |
