| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57960cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57960cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,661,120 | 94,613,760 |
| Size | 491.8 MB | 90.2 MB |
| Events in quadrant A | 2,947,539 | 657,831 |
| Events in quadrant B | 3,381,276 | 697,486 |
| Events in quadrant C | 3,764,265 | 610,604 |
| Events in quadrant D | 8,493,567 | 448,612 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13345 | 2 |
| B | 0 | 14479 | 2 |
| C | 0 | 15817 | 2 |
| D | 0 | 29678 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6451 | 35 | 0.542552% |
| B | 6451 | 136 | 2.108200% |
| C | 6451 | 173 | 2.681755% |
| D | 6451 | 1723 | 26.709037% |

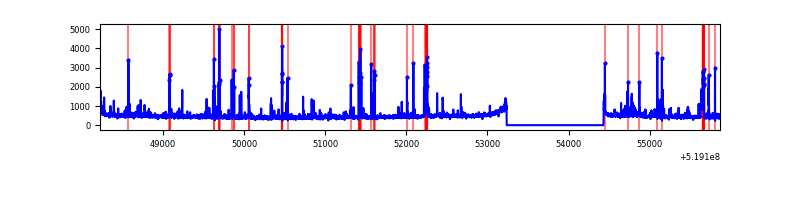

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7646 | 6452 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7646 | 6452 | 64 | 64 | 0.84% | 0.99% |  |
| C | 7646 | 6452 | 121 | 121 | 1.58% | 1.88% |  |
| D | 7646 | 6452 | 1670 | 1670 | 21.84% | 25.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 42410 | 229.74 | 730 | 710 | 181.5 |
| A | 7 | 64 | 30703 | 165.24 | 730 | 710 | 181.5 |
| A | 3 | 245 | 19840 | 105.4 | 730 | 710 | 181.5 |
| B | 10 | 247 | 142521 | 927.33 | 715 | 690 | 152.9 |
| B | 7 | 252 | 115725 | 752.13 | 715 | 690 | 152.9 |
| B | 15 | 32 | 57554 | 371.79 | 715 | 690 | 152.9 |
| C | 15 | 224 | 866971 | 4560.76 | 690 | 684 | 189.9 |
| C | 1 | 16 | 53184 | 276.4 | 690 | 684 | 189.9 |
| C | 14 | 254 | 51643 | 268.29 | 690 | 684 | 189.9 |
| D | 12 | 110 | 5225026 | 28722.61 | 637 | 608 | 181.9 |
| D | 2 | 249 | 388137 | 2130.54 | 637 | 608 | 181.9 |
| D | 8 | 240 | 139393 | 763.01 | 637 | 608 | 181.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

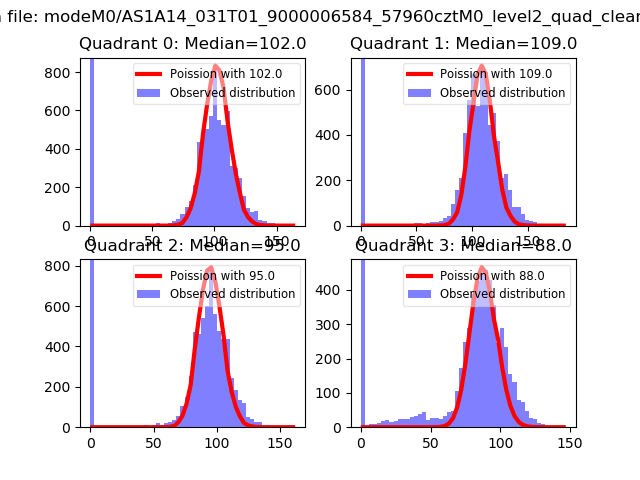

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

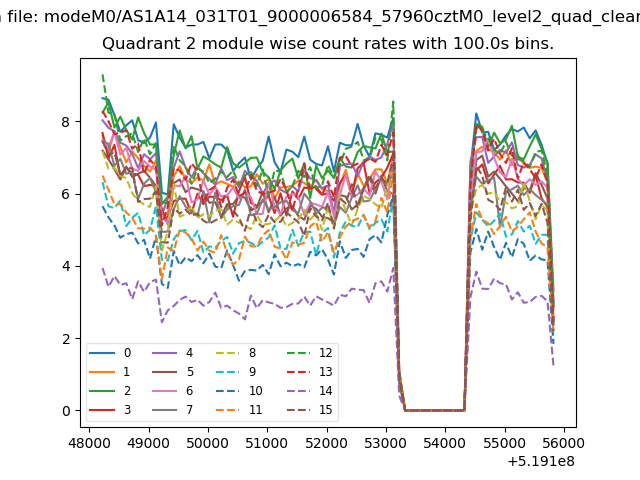

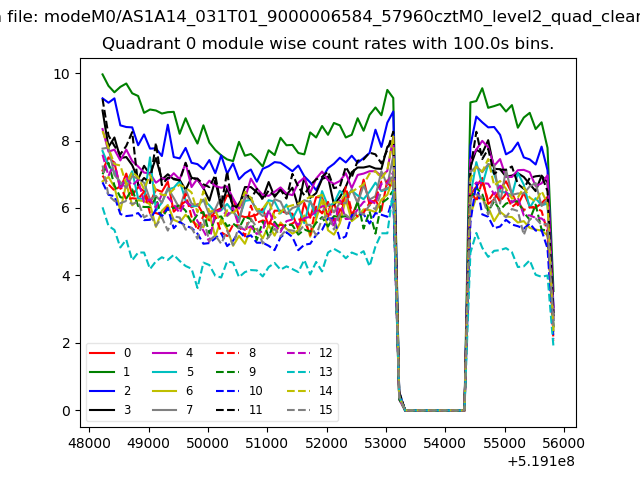

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

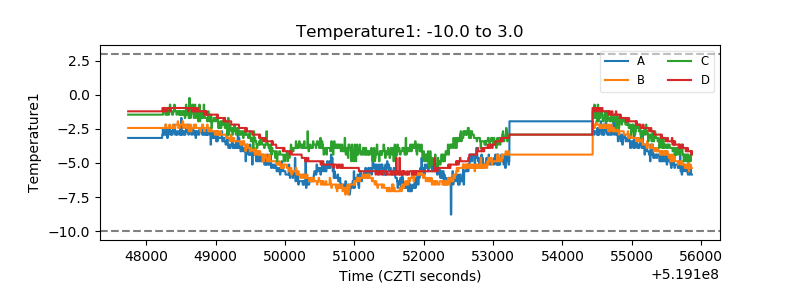

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

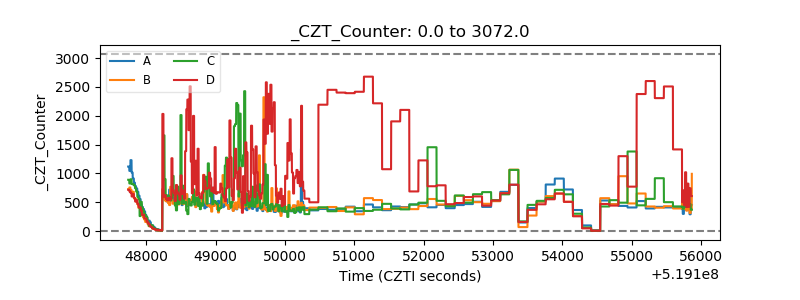

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

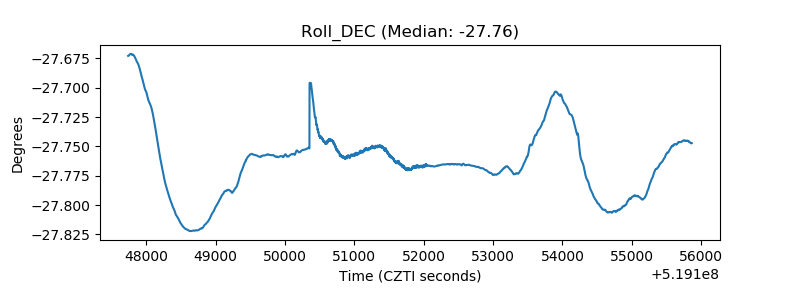

| _Roll_DEC |  |

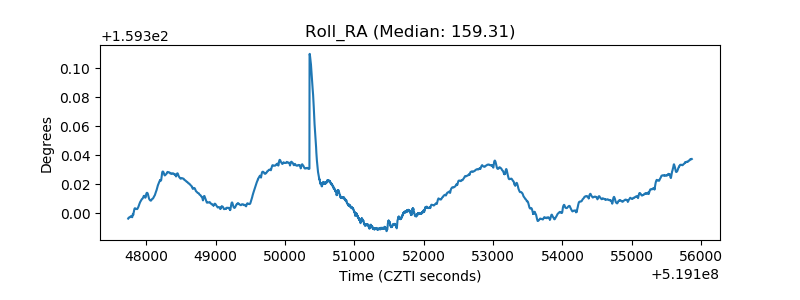

| _Roll_RA |  |
| Veto Counter |  |
