| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57961cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57961cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,859,200 | 92,937,600 |
| Size | 467.2 MB | 88.6 MB |
| Events in quadrant A | 3,577,514 | 626,125 |
| Events in quadrant B | 4,647,979 | 640,470 |
| Events in quadrant C | 3,349,009 | 601,099 |
| Events in quadrant D | 6,063,121 | 500,924 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15166 | 2 |
| B | 0 | 18254 | 2 |
| C | 0 | 14461 | 2 |
| D | 0 | 22461 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6377 | 164 | 2.571742% |
| B | 6377 | 540 | 8.467932% |
| C | 6377 | 55 | 0.862475% |
| D | 6377 | 733 | 11.494433% |

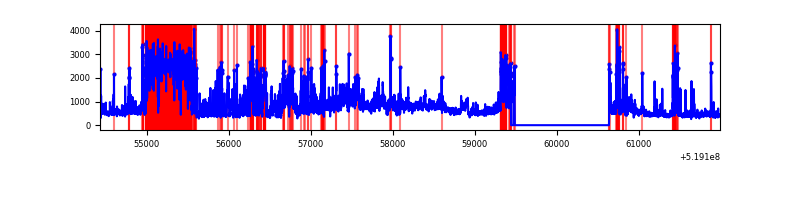

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7557 | 6379 | 96 | 96 | 1.27% | 1.50% |  |
| B | 7557 | 6379 | 395 | 395 | 5.23% | 6.19% |  |
| C | 7557 | 6379 | 37 | 37 | 0.49% | 0.58% |  |
| D | 7557 | 6377 | 686 | 686 | 9.08% | 10.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 711027 | 4091.78 | 701 | 684 | 173.6 |
| A | 3 | 14 | 50327 | 285.96 | 701 | 684 | 173.6 |
| A | 3 | 245 | 37666 | 213.03 | 701 | 684 | 173.6 |
| B | 10 | 128 | 1464287 | 9929.93 | 684 | 659 | 147.4 |
| B | 15 | 32 | 134153 | 905.69 | 684 | 659 | 147.4 |
| B | 5 | 185 | 50424 | 337.63 | 684 | 659 | 147.4 |
| C | 15 | 224 | 480279 | 2574.04 | 678 | 673 | 186.3 |
| C | 12 | 252 | 75980 | 404.17 | 678 | 673 | 186.3 |
| C | 1 | 16 | 71877 | 382.15 | 678 | 673 | 186.3 |
| D | 12 | 110 | 2952362 | 16126.99 | 641 | 611 | 183.0 |
| D | 8 | 240 | 198223 | 1079.66 | 641 | 611 | 183.0 |
| D | 2 | 249 | 133021 | 723.43 | 641 | 611 | 183.0 |

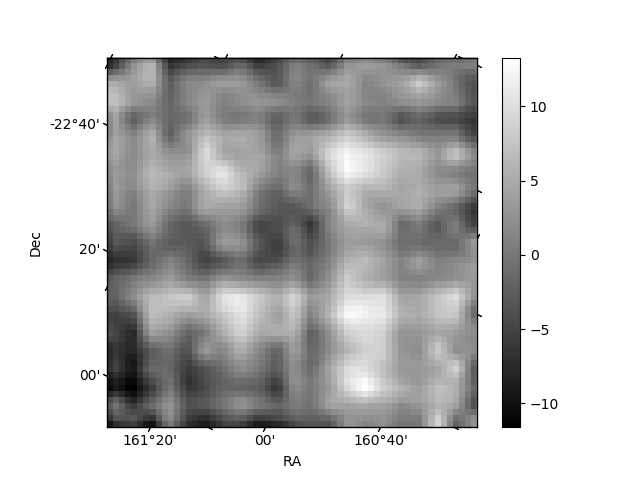

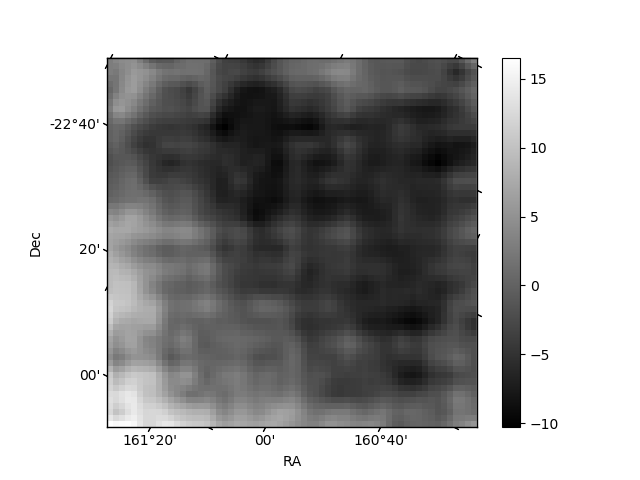

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

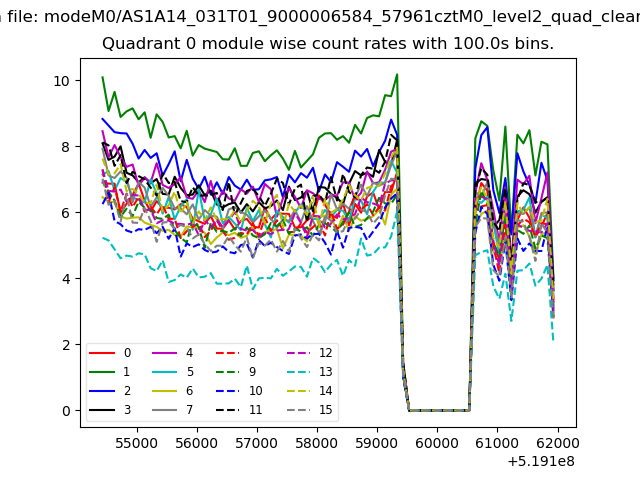

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

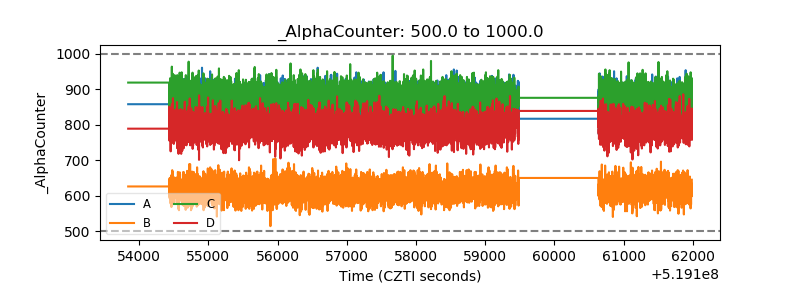

| Alpha Counter |  |
| _CPM_Rate |  |

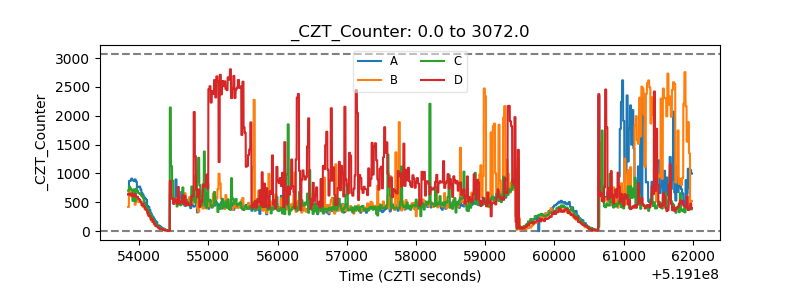

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

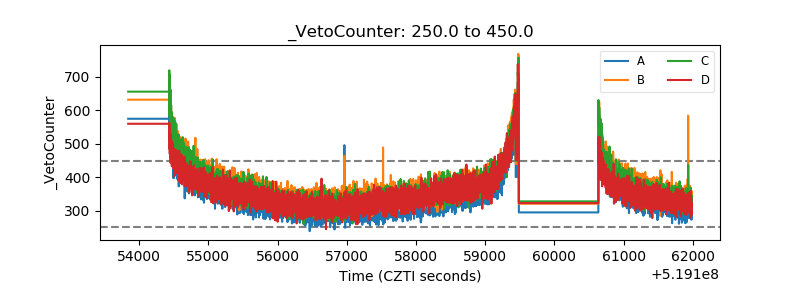

| Veto Counter |  |
