| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57962cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57962cztM0_level2_quad_clean.evt |
| Size (bytes) | 647,902,080 | 90,717,120 |
| Size | 617.9 MB | 86.5 MB |
| Events in quadrant A | 7,841,432 | 537,578 |
| Events in quadrant B | 5,198,325 | 640,674 |
| Events in quadrant C | 3,281,849 | 615,857 |
| Events in quadrant D | 7,142,732 | 486,054 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28005 | 2 |
| B | 0 | 19968 | 3 |
| C | 0 | 14730 | 2 |
| D | 0 | 26088 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6690 | 1493 | 22.316891% |
| B | 6689 | 667 | 9.971595% |
| C | 6689 | 24 | 0.358798% |
| D | 6689 | 1236 | 18.478098% |

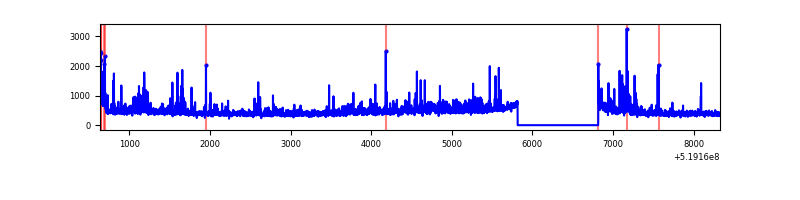

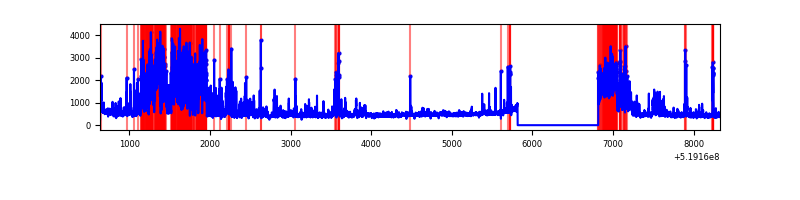

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7690 | 6690 | 1076 | 1076 | 13.99% | 16.08% |  |
| B | 7689 | 6690 | 466 | 466 | 6.06% | 6.97% |  |
| C | 7689 | 6690 | 11 | 11 | 0.14% | 0.16% |  |
| D | 7689 | 6690 | 1101 | 1101 | 14.32% | 16.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 5189810 | 31490.32 | 665 | 648 | 164.8 |
| A | 3 | 14 | 44617 | 266.82 | 665 | 648 | 164.8 |
| A | 2 | 143 | 12413 | 71.4 | 665 | 648 | 164.8 |
| B | 10 | 128 | 1501877 | 9857.39 | 703 | 678 | 152.3 |
| B | 5 | 185 | 431687 | 2830.15 | 703 | 678 | 152.3 |
| B | 0 | 213 | 128203 | 837.37 | 703 | 678 | 152.3 |
| C | 15 | 224 | 257322 | 1326.36 | 704 | 698 | 193.5 |
| C | 1 | 16 | 114086 | 586.04 | 704 | 698 | 193.5 |
| C | 12 | 252 | 70852 | 362.59 | 704 | 698 | 193.5 |
| D | 12 | 110 | 3873045 | 20940.53 | 652 | 625 | 184.9 |
| D | 8 | 240 | 178739 | 963.17 | 652 | 625 | 184.9 |
| D | 3 | 12 | 158541 | 853.95 | 652 | 625 | 184.9 |

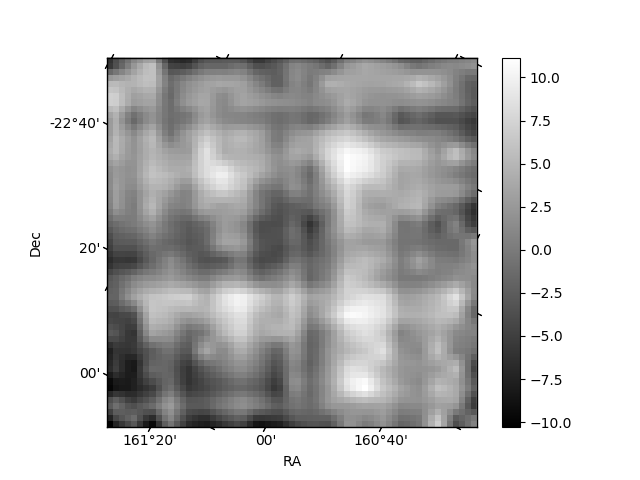

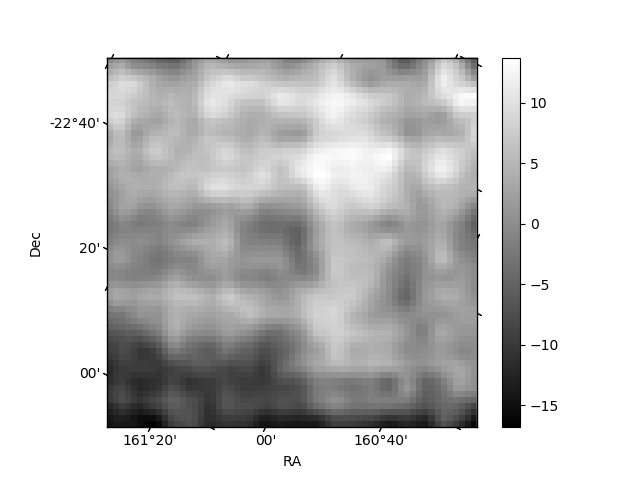

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

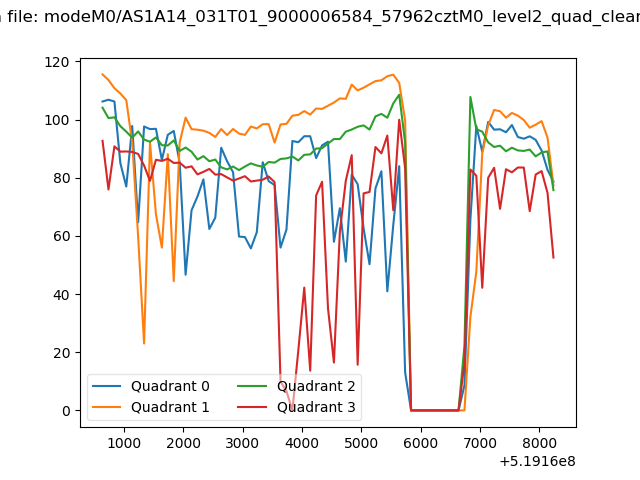

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

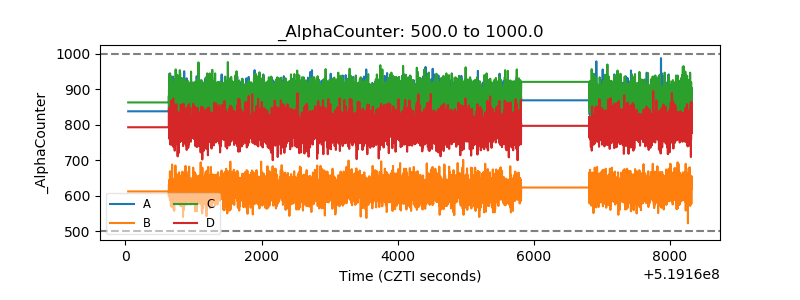

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

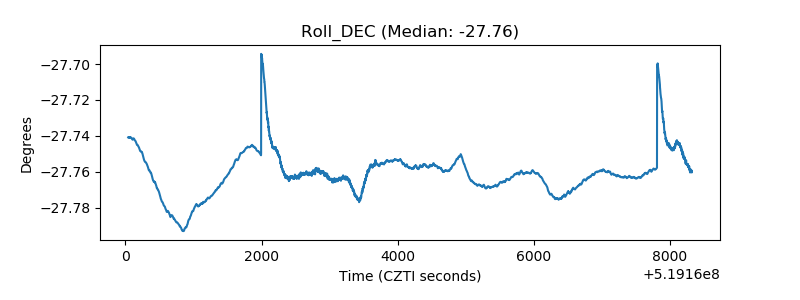

| _Roll_DEC |  |

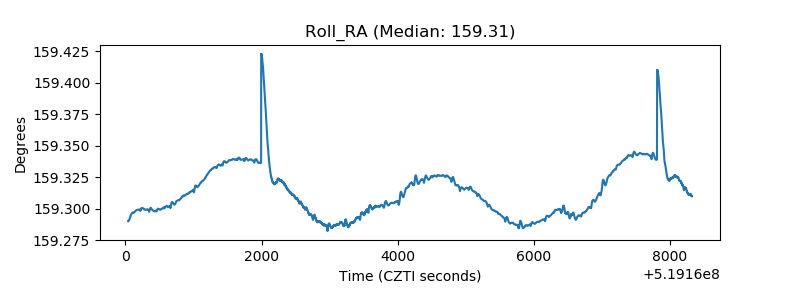

| _Roll_RA |  |
| Veto Counter |  |
