| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57963cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57963cztM0_level2_quad_clean.evt |
| Size (bytes) | 652,481,280 | 97,871,040 |
| Size | 622.3 MB | 93.3 MB |
| Events in quadrant A | 5,489,198 | 657,950 |
| Events in quadrant B | 4,127,448 | 713,668 |
| Events in quadrant C | 4,020,776 | 646,169 |
| Events in quadrant D | 9,957,009 | 444,171 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21404 | 2 |
| B | 0 | 17338 | 2 |
| C | 0 | 17176 | 2 |
| D | 0 | 34511 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7198 | 500 | 6.946374% |
| B | 7198 | 301 | 4.181717% |
| C | 7198 | 119 | 1.653237% |
| D | 7199 | 2155 | 29.934713% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

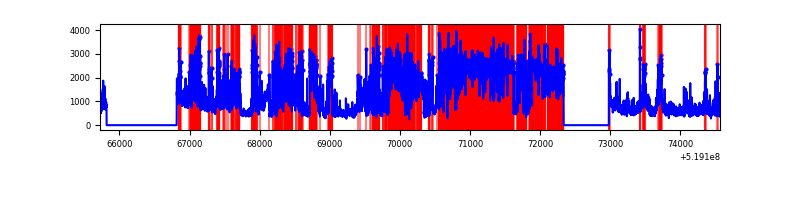

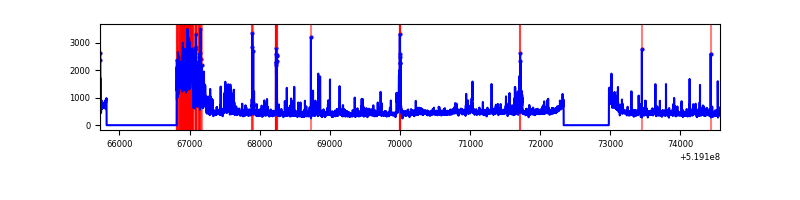

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8843 | 7199 | 332 | 332 | 3.75% | 4.61% |  |
| B | 8843 | 7200 | 128 | 128 | 1.45% | 1.78% |  |
| C | 8843 | 7200 | 86 | 86 | 0.97% | 1.19% |  |
| D | 8844 | 7201 | 1960 | 1960 | 22.16% | 27.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 2451922 | 12885.1 | 769 | 749 | 190.2 |
| A | 3 | 14 | 20281 | 102.67 | 769 | 749 | 190.2 |
| A | 3 | 245 | 13844 | 68.84 | 769 | 749 | 190.2 |
| B | 5 | 185 | 561889 | 3346.1 | 773 | 745 | 167.7 |
| B | 0 | 213 | 143868 | 853.44 | 773 | 745 | 167.7 |
| B | 10 | 128 | 132782 | 787.34 | 773 | 745 | 167.7 |
| C | 15 | 224 | 739768 | 3551.0 | 758 | 749 | 208.1 |
| C | 1 | 16 | 168073 | 803.99 | 758 | 749 | 208.1 |
| C | 11 | 244 | 56201 | 266.45 | 758 | 749 | 208.1 |
| D | 12 | 110 | 6814483 | 36051.24 | 660 | 632 | 189.0 |
| D | 8 | 240 | 144850 | 763.04 | 660 | 632 | 189.0 |
| D | 3 | 12 | 115452 | 607.5 | 660 | 632 | 189.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

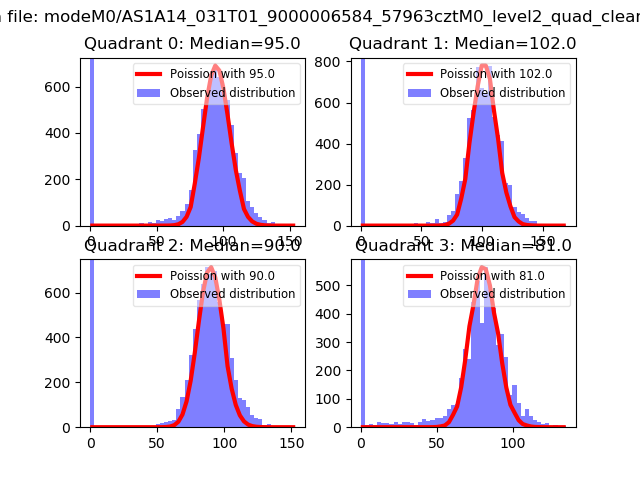

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

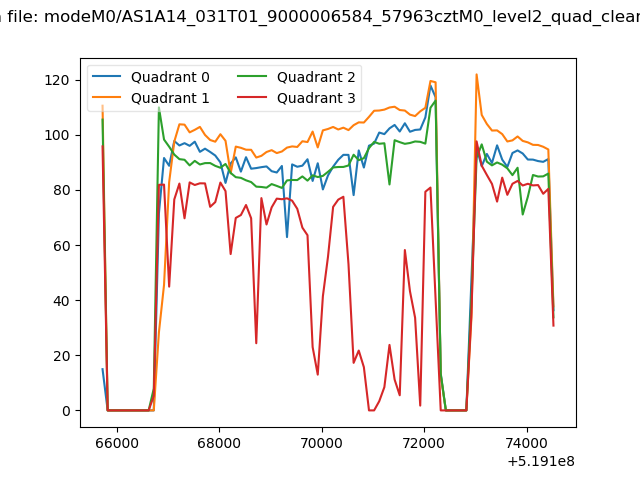

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

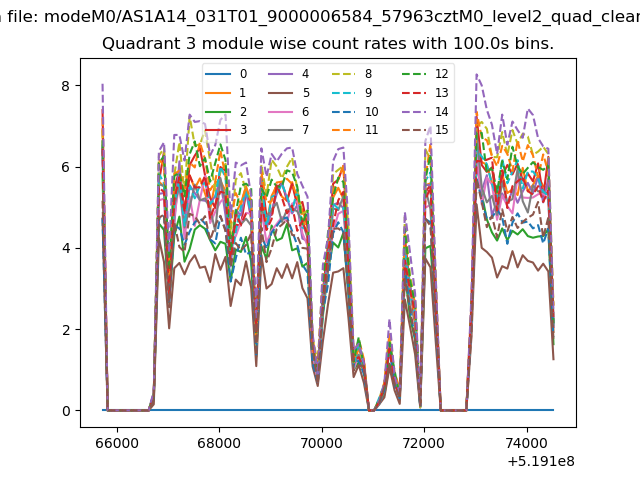

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

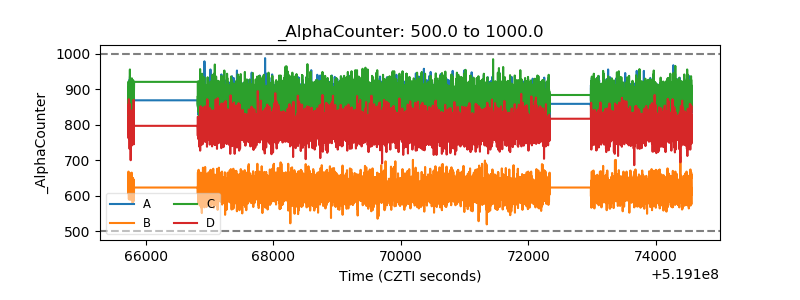

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

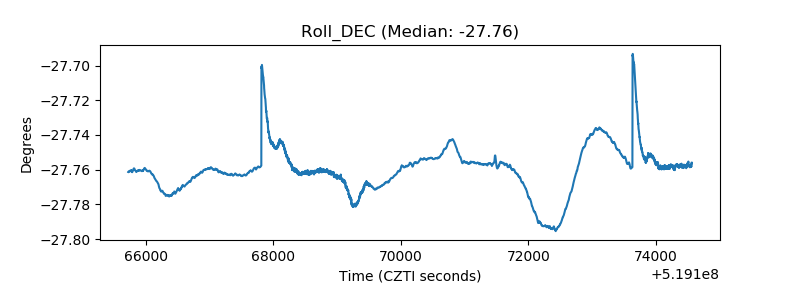

| _Roll_DEC |  |
| _Roll_RA |  |

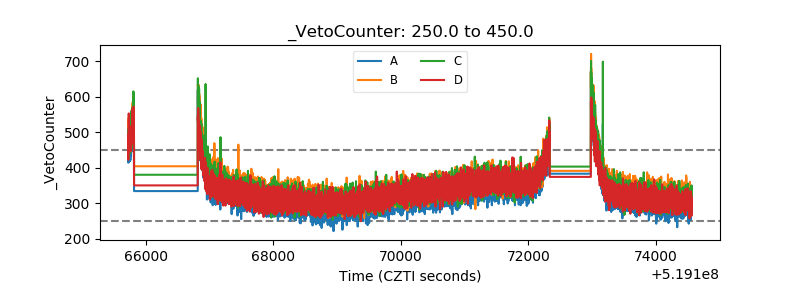

| Veto Counter |  |
