| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57964cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57964cztM0_level2_quad_clean.evt |
| Size (bytes) | 613,656,000 | 121,599,360 |
| Size | 585.2 MB | 116.0 MB |
| Events in quadrant A | 4,818,834 | 808,893 |
| Events in quadrant B | 4,255,627 | 864,081 |
| Events in quadrant C | 5,621,835 | 734,082 |
| Events in quadrant D | 7,357,656 | 682,653 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20576 | 1 |
| B | 0 | 18738 | 1 |
| C | 0 | 22826 | 1 |
| D | 0 | 27749 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8526 | 233 | 2.732817% |
| B | 8526 | 232 | 2.721088% |
| C | 8526 | 459 | 5.383533% |
| D | 8527 | 663 | 7.775302% |

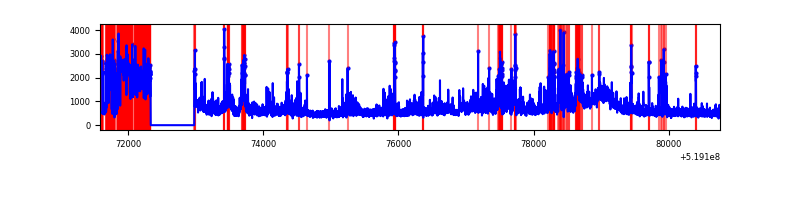

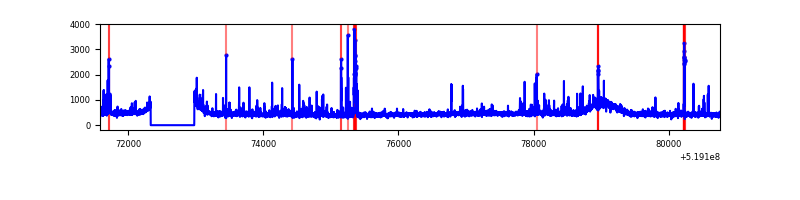

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9171 | 8527 | 144 | 144 | 1.57% | 1.69% |  |
| B | 9171 | 8527 | 36 | 36 | 0.39% | 0.42% |  |
| C | 9171 | 8527 | 325 | 325 | 3.54% | 3.81% |  |
| D | 9172 | 8528 | 535 | 535 | 5.83% | 6.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1001459 | 4191.59 | 967 | 940 | 238.7 |
| A | 3 | 245 | 36117 | 147.37 | 967 | 940 | 238.7 |
| A | 3 | 14 | 18239 | 72.47 | 967 | 940 | 238.7 |
| B | 7 | 252 | 165782 | 789.0 | 960 | 923 | 208.9 |
| B | 0 | 213 | 45112 | 211.48 | 960 | 923 | 208.9 |
| B | 0 | 153 | 42424 | 198.62 | 960 | 923 | 208.9 |
| C | 15 | 224 | 882988 | 3499.39 | 922 | 913 | 252.1 |
| C | 3 | 248 | 795200 | 3151.12 | 922 | 913 | 252.1 |
| C | 1 | 16 | 141374 | 557.24 | 922 | 913 | 252.1 |
| D | 12 | 110 | 2680928 | 10341.57 | 906 | 866 | 259.2 |
| D | 3 | 12 | 566564 | 2182.86 | 906 | 866 | 259.2 |
| D | 8 | 240 | 196544 | 755.06 | 906 | 866 | 259.2 |

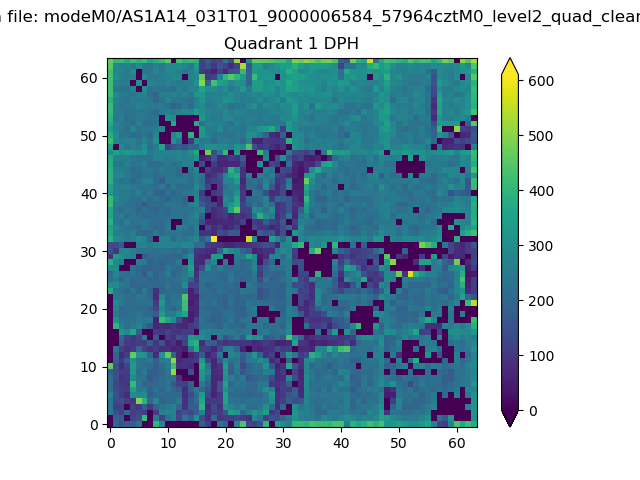

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

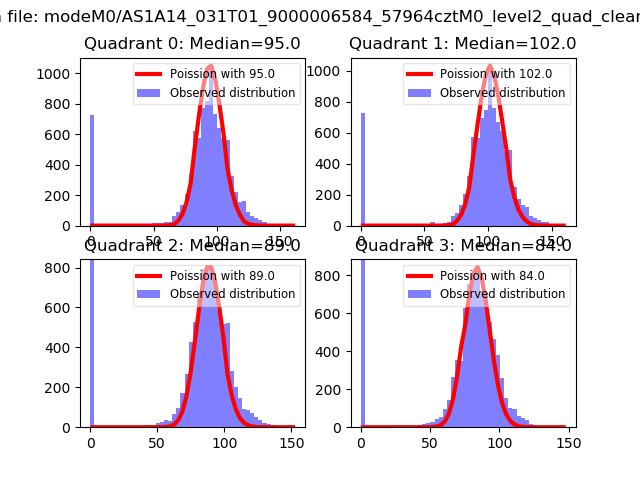

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

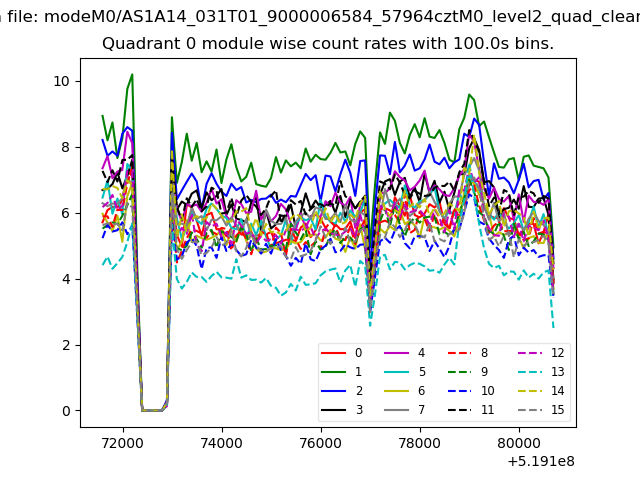

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

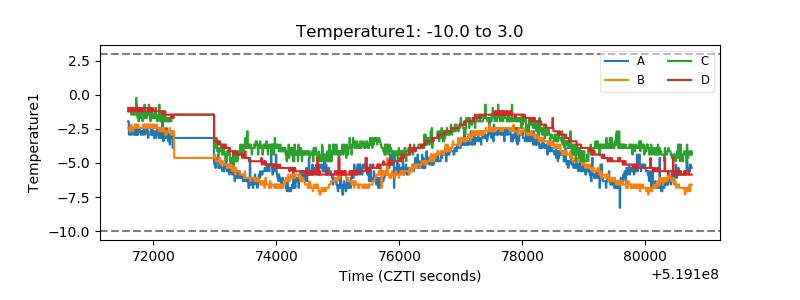

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

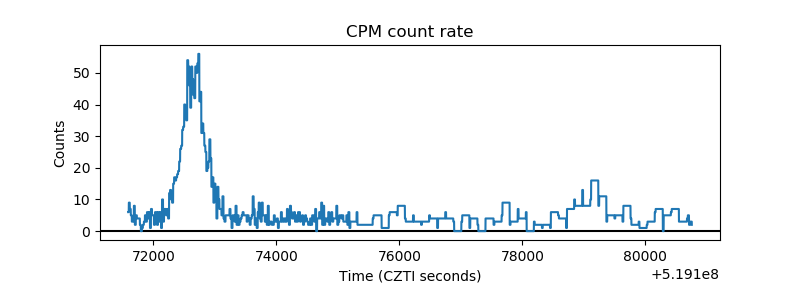

| _CPM_Rate |  |

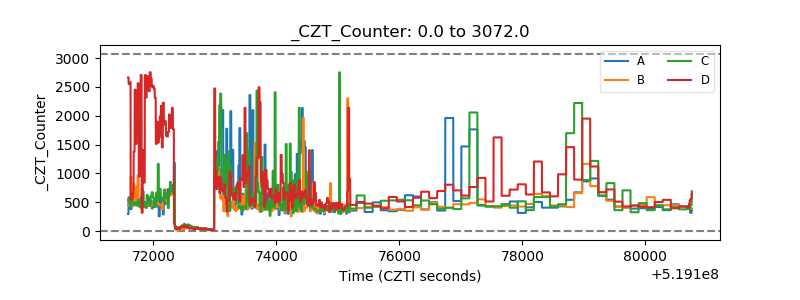

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
