| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57969cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57969cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,774,477,440 | 208,535,040 |
| Size | 1.7 GB | 198.9 MB |
| Events in quadrant A | 21,353,132 | 1,140,797 |
| Events in quadrant B | 7,948,328 | 1,615,705 |
| Events in quadrant C | 12,658,347 | 1,325,232 |
| Events in quadrant D | 22,473,172 | 1,109,677 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74680 | 2 |
| B | 0 | 35173 | 2 |
| C | 0 | 49092 | 2 |
| D | 0 | 78149 | 8 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 328 | 0 |
| B | 0 | 328 | 0 |
| C | 0 | 328 | 0 |
| D | 0 | 328 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16260 | 4485 | 27.583026% |
| B | 16259 | 366 | 2.251061% |
| C | 16259 | 1625 | 9.994465% |
| D | 16259 | 3099 | 19.060213% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17055 | 16260 | 3462 | 3462 | 20.30% | 21.29% |  |
| B | 17054 | 16259 | 46 | 46 | 0.27% | 0.28% |  |
| C | 17054 | 16259 | 1297 | 1297 | 7.61% | 7.98% |  |
| D | 17055 | 16260 | 2742 | 2742 | 16.08% | 16.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 14726691 | 37643.3 | 1586 | 1547 | 391.2 |
| A | 3 | 245 | 131537 | 332.31 | 1586 | 1547 | 391.2 |
| A | 13 | 248 | 127180 | 321.17 | 1586 | 1547 | 391.2 |
| B | 10 | 128 | 342855 | 904.88 | 1759 | 1689 | 377.0 |
| B | 7 | 252 | 138473 | 362.79 | 1759 | 1689 | 377.0 |
| B | 10 | 247 | 125518 | 328.43 | 1759 | 1689 | 377.0 |
| C | 15 | 224 | 5193006 | 11487.58 | 1659 | 1643 | 451.9 |
| C | 12 | 252 | 467035 | 1029.83 | 1659 | 1643 | 451.9 |
| C | 15 | 208 | 203615 | 446.93 | 1659 | 1643 | 451.9 |
| D | 12 | 110 | 14994439 | 32924.77 | 1622 | 1553 | 455.4 |
| D | 8 | 240 | 319272 | 697.72 | 1622 | 1553 | 455.4 |
| D | 12 | 251 | 183489 | 399.54 | 1622 | 1553 | 455.4 |

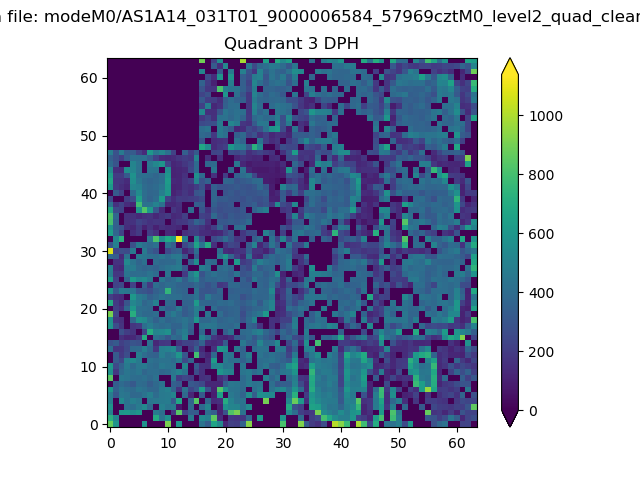

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

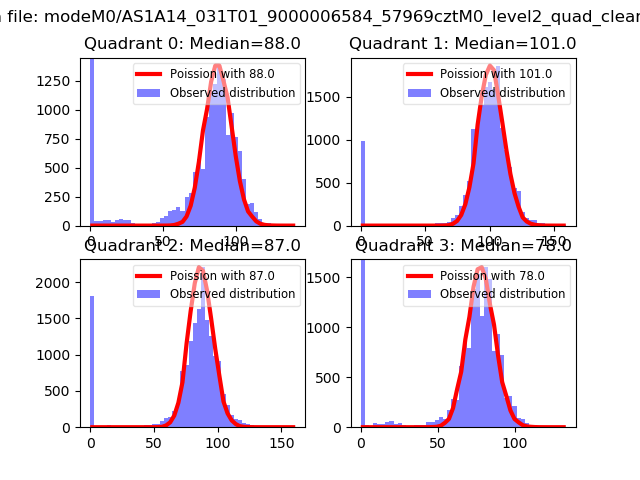

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

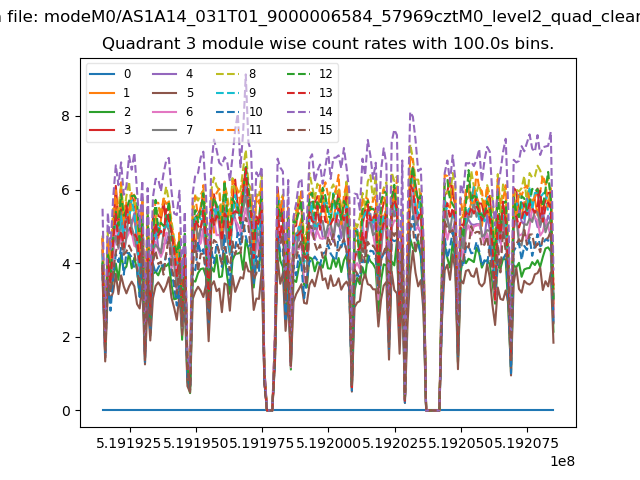

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

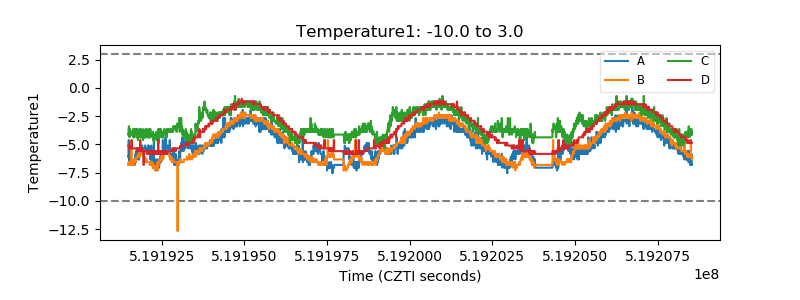

| Temperature 1 |  |
| Veto HV Monitor |  |

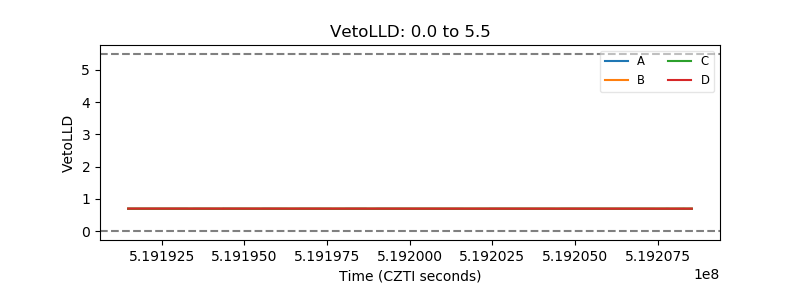

| Veto LLD |  |
| Alpha Counter |  |

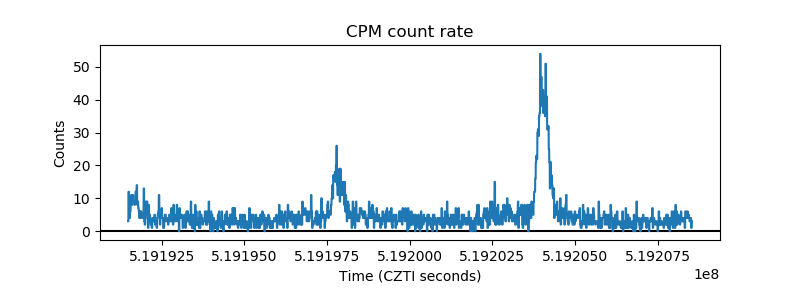

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

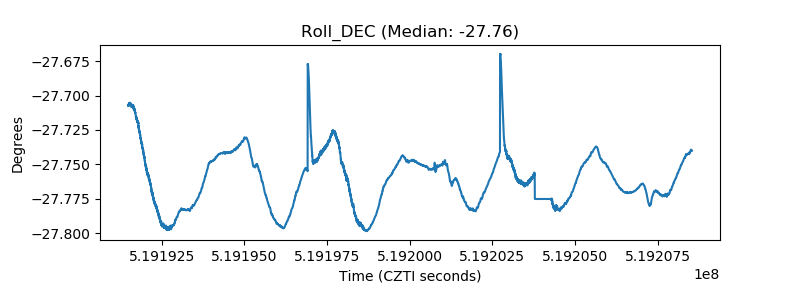

| _Roll_DEC |  |

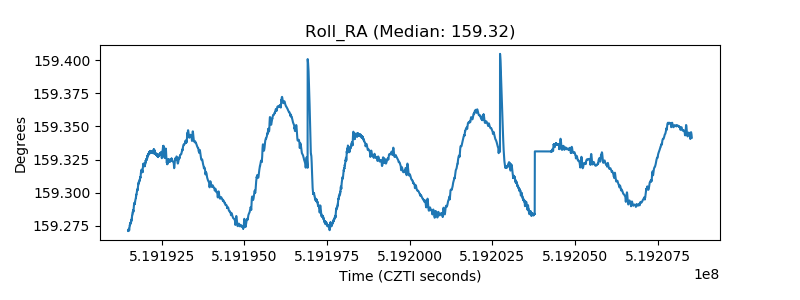

| _Roll_RA |  |
| Veto Counter |  |
