| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57970cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57970cztM0_level2_quad_clean.evt |
| Size (bytes) | 872,418,240 | 75,686,400 |
| Size | 832.0 MB | 72.2 MB |
| Events in quadrant A | 7,065,732 | 553,184 |
| Events in quadrant B | 3,336,129 | 662,430 |
| Events in quadrant C | 6,008,224 | 517,232 |
| Events in quadrant D | 15,384,571 | 108,457 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25461 | 1 |
| B | 0 | 14306 | 1 |
| C | 0 | 22257 | 1 |
| D | 0 | 49902 | 9 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6447 | 1055 | 16.364200% |
| B | 6448 | 98 | 1.519851% |
| C | 6448 | 948 | 14.702233% |
| D | 6447 | 5427 | 84.178688% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7312 | 6447 | 861 | 861 | 11.78% | 13.36% |  |
| B | 7313 | 6448 | 19 | 19 | 0.26% | 0.29% |  |
| C | 7313 | 6448 | 843 | 843 | 11.53% | 13.07% |  |
| D | 7311 | 6446 | 5231 | 5231 | 71.55% | 81.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 4341174 | 25699.22 | 681 | 664 | 168.9 |
| A | 3 | 14 | 21329 | 122.35 | 681 | 664 | 168.9 |
| A | 12 | 3 | 20184 | 115.57 | 681 | 664 | 168.9 |
| B | 10 | 128 | 286242 | 1874.41 | 701 | 674 | 152.4 |
| B | 7 | 252 | 50297 | 325.71 | 701 | 674 | 152.4 |
| B | 6 | 51 | 41423 | 267.47 | 701 | 674 | 152.4 |
| C | 15 | 224 | 3297234 | 18647.51 | 645 | 640 | 176.8 |
| C | 12 | 252 | 63195 | 353.85 | 645 | 640 | 176.8 |
| C | 6 | 223 | 56523 | 316.11 | 645 | 640 | 176.8 |
| D | 13 | 138 | 12515371 | 116048.14 | 380 | 362 | 107.8 |
| D | 12 | 110 | 1183901 | 10974.62 | 380 | 362 | 107.8 |
| D | 8 | 240 | 53065 | 488.7 | 380 | 362 | 107.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

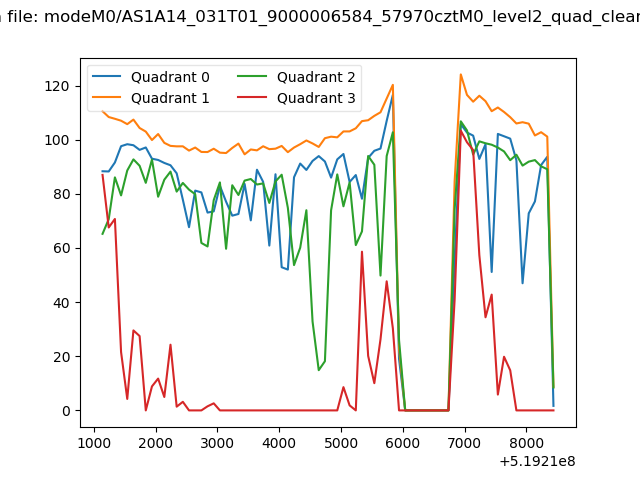

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

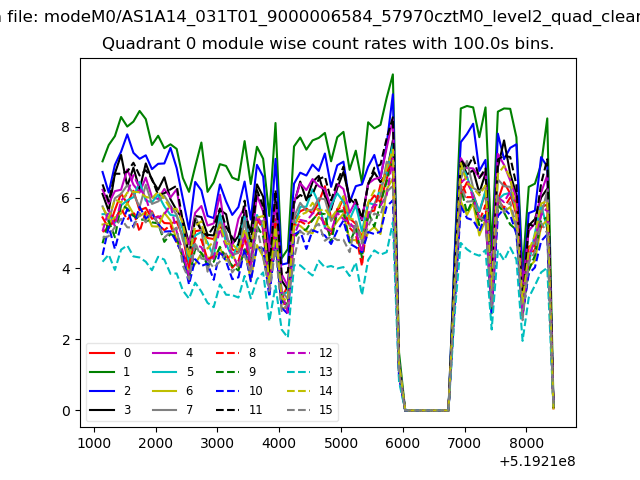

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

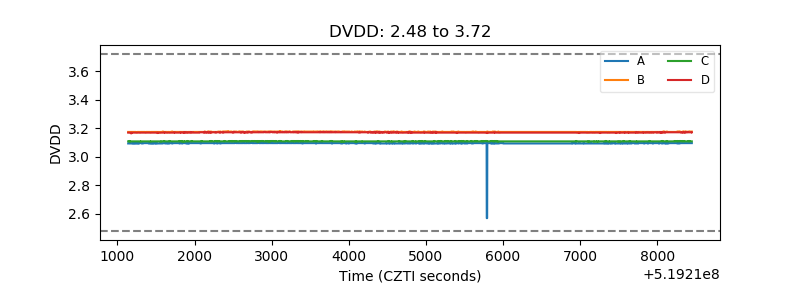

| D_VDD |  |

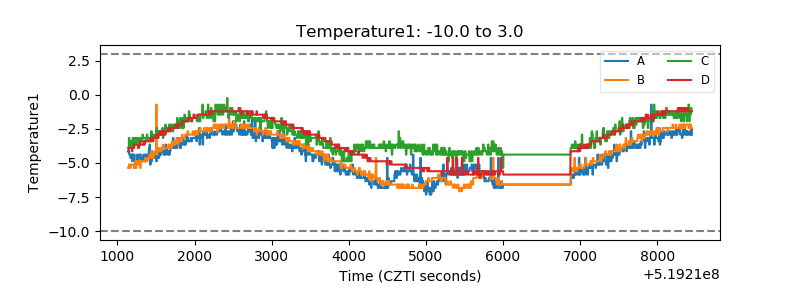

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
