| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57976cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57976cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,048,320 | 93,409,920 |
| Size | 516.0 MB | 89.1 MB |
| Events in quadrant A | 3,472,102 | 625,521 |
| Events in quadrant B | 4,578,003 | 674,191 |
| Events in quadrant C | 6,382,660 | 521,180 |
| Events in quadrant D | 5,092,392 | 555,238 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15090 | 2 |
| B | 0 | 18001 | 2 |
| C | 0 | 23449 | 3 |
| D | 0 | 19661 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6480 | 220 | 3.395062% |
| B | 6480 | 263 | 4.058642% |
| C | 6479 | 1128 | 17.410094% |
| D | 6479 | 177 | 2.731903% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7605 | 6481 | 177 | 177 | 2.33% | 2.73% |  |
| B | 7605 | 6481 | 199 | 199 | 2.62% | 3.07% |  |
| C | 7604 | 6480 | 956 | 956 | 12.57% | 14.75% |  |
| D | 7604 | 6480 | 170 | 170 | 2.24% | 2.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 549073 | 3128.63 | 708 | 691 | 175.3 |
| A | 7 | 64 | 35824 | 200.44 | 708 | 691 | 175.3 |
| A | 13 | 248 | 32326 | 180.48 | 708 | 691 | 175.3 |
| B | 10 | 128 | 1503394 | 9955.41 | 702 | 676 | 150.9 |
| B | 0 | 63 | 56068 | 366.97 | 702 | 676 | 150.9 |
| B | 15 | 32 | 36944 | 240.27 | 702 | 676 | 150.9 |
| C | 15 | 224 | 3738161 | 21424.16 | 634 | 627 | 174.5 |
| C | 12 | 252 | 60081 | 340.8 | 634 | 627 | 174.5 |
| C | 6 | 223 | 33418 | 187.96 | 634 | 627 | 174.5 |
| D | 12 | 110 | 1998218 | 10321.36 | 678 | 650 | 193.5 |
| D | 2 | 31 | 109827 | 564.11 | 678 | 650 | 193.5 |
| D | 8 | 240 | 84150 | 431.44 | 678 | 650 | 193.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

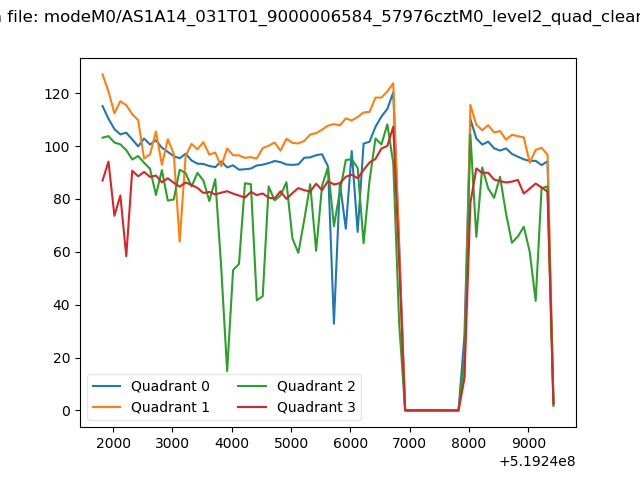

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

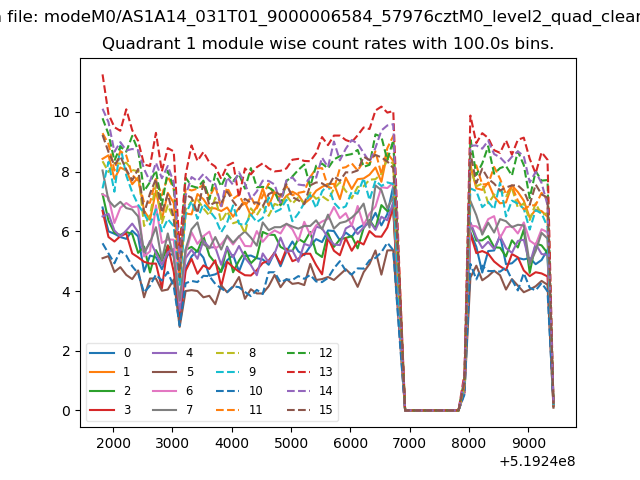

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

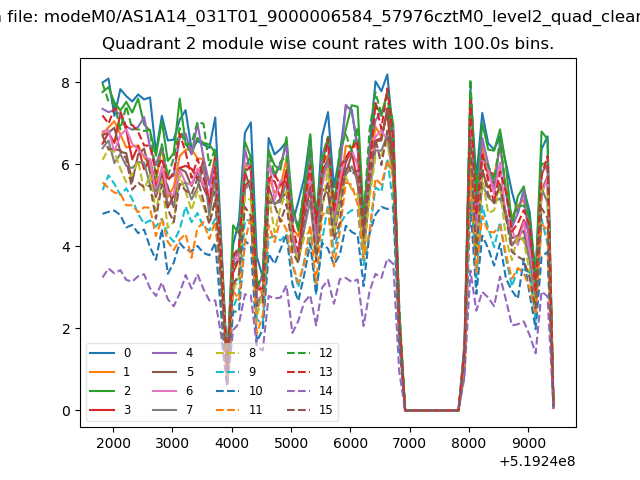

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

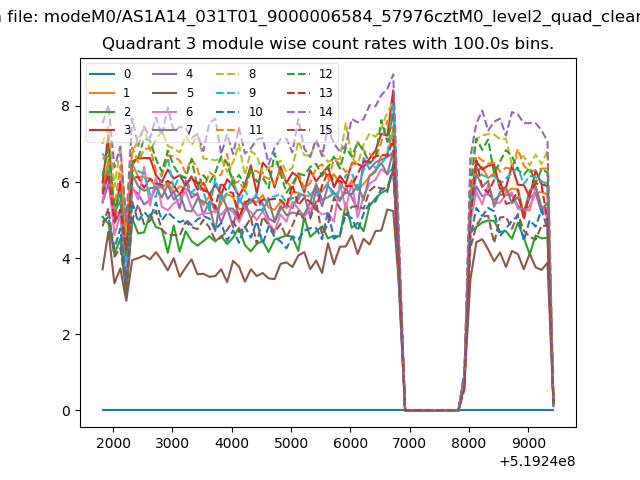

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

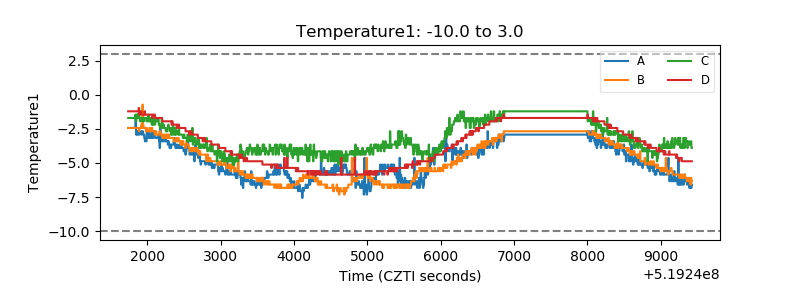

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

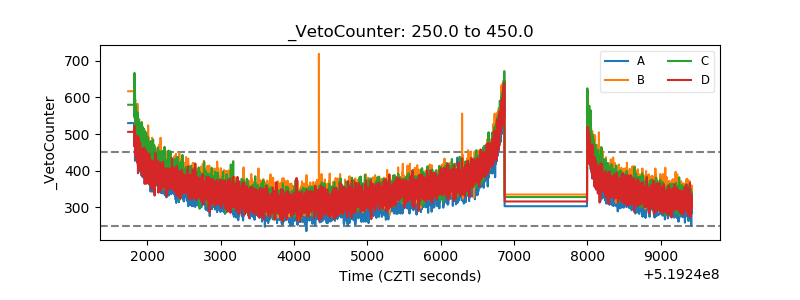

| Veto Counter |  |
