| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57979cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57979cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,960,320 | 114,814,080 |
| Size | 522.6 MB | 109.5 MB |
| Events in quadrant A | 4,918,170 | 746,186 |
| Events in quadrant B | 5,043,728 | 795,531 |
| Events in quadrant C | 4,807,819 | 717,561 |
| Events in quadrant D | 4,886,973 | 656,606 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20576 | 1 |
| B | 0 | 20556 | 1 |
| C | 0 | 19968 | 1 |
| D | 0 | 20325 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8075 | 324 | 4.012384% |
| B | 8075 | 355 | 4.396285% |
| C | 8075 | 156 | 1.931889% |
| D | 8075 | 342 | 4.235294% |

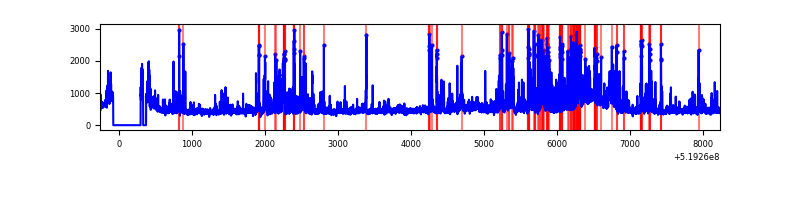

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8490 | 8076 | 254 | 254 | 2.99% | 3.15% |  |
| B | 8490 | 8076 | 152 | 152 | 1.79% | 1.88% |  |
| C | 8490 | 8077 | 126 | 126 | 1.48% | 1.56% |  |
| D | 8490 | 8077 | 285 | 285 | 3.36% | 3.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1322401 | 6022.46 | 892 | 867 | 219.4 |
| A | 7 | 64 | 73104 | 329.2 | 892 | 867 | 219.4 |
| A | 8 | 6 | 23163 | 101.61 | 892 | 867 | 219.4 |
| B | 10 | 128 | 982673 | 5081.22 | 884 | 850 | 193.2 |
| B | 4 | 171 | 125677 | 646.02 | 884 | 850 | 193.2 |
| B | 5 | 185 | 89269 | 457.59 | 884 | 850 | 193.2 |
| C | 15 | 224 | 1187482 | 4984.84 | 868 | 861 | 238.0 |
| C | 12 | 252 | 146723 | 612.75 | 868 | 861 | 238.0 |
| C | 14 | 254 | 42522 | 175.01 | 868 | 861 | 238.0 |
| D | 12 | 110 | 601900 | 2514.73 | 846 | 811 | 239.0 |
| D | 13 | 138 | 530881 | 2217.61 | 846 | 811 | 239.0 |
| D | 8 | 240 | 174522 | 726.74 | 846 | 811 | 239.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

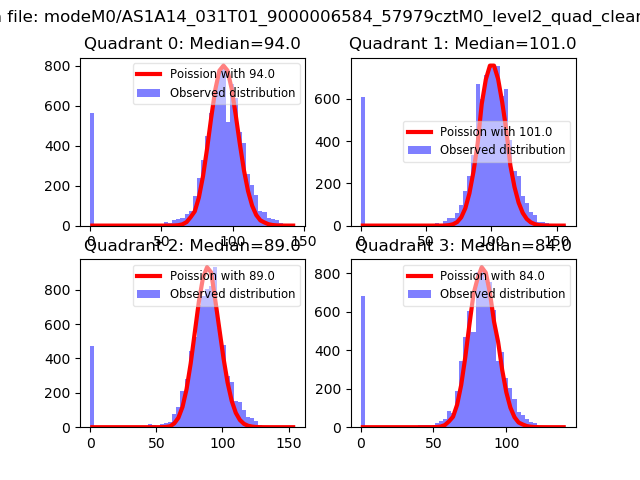

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

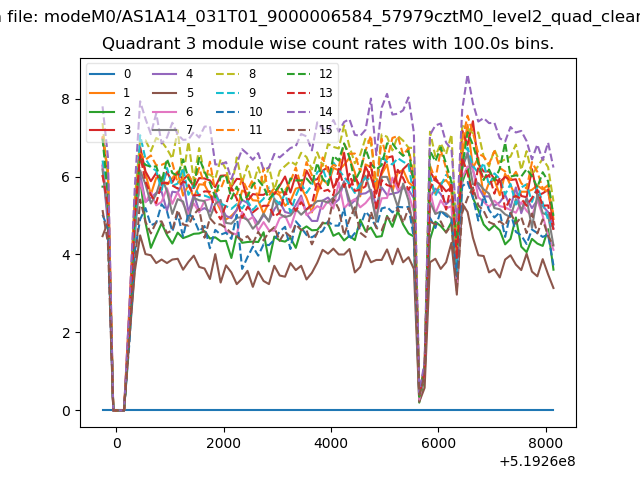

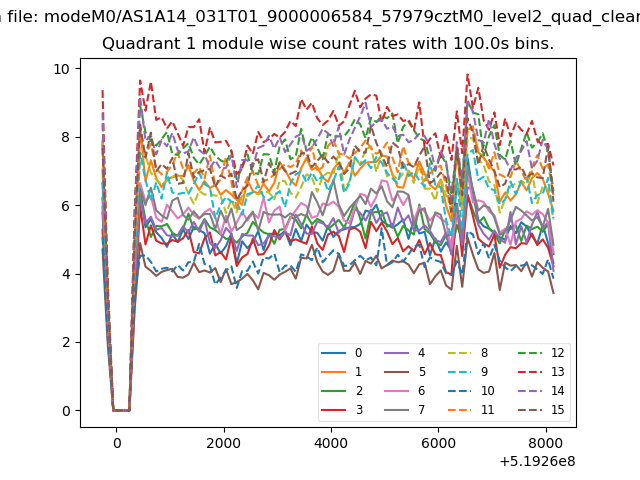

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
