| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57980cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57980cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,622,080 | 118,589,760 |
| Size | 541.3 MB | 113.1 MB |
| Events in quadrant A | 4,827,403 | 766,206 |
| Events in quadrant B | 6,074,917 | 808,182 |
| Events in quadrant C | 5,101,511 | 730,583 |
| Events in quadrant D | 4,343,845 | 691,453 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20686 | 0 |
| B | 0 | 23987 | 0 |
| C | 0 | 21177 | 0 |
| D | 0 | 19151 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8554 | 224 | 2.618658% |
| B | 8554 | 402 | 4.699556% |
| C | 8554 | 200 | 2.338087% |
| D | 8554 | 130 | 1.519757% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

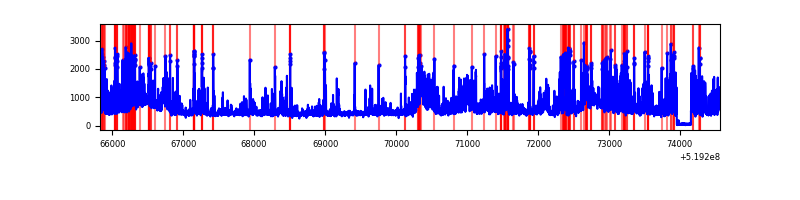

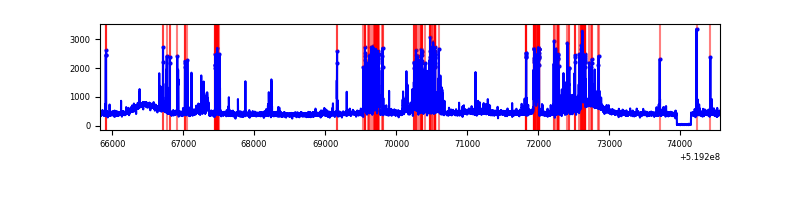

| A | 8736 | 8736 | 185 | 185 | 2.12% | 2.12% |  |

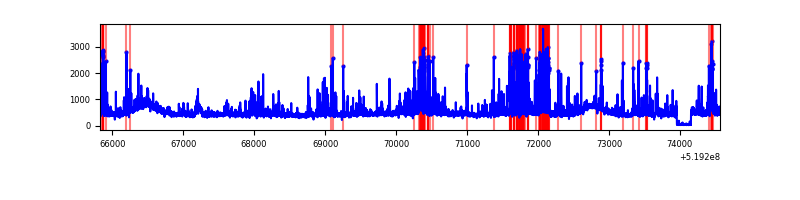

| B | 8736 | 8736 | 238 | 238 | 2.72% | 2.72% |  |
| C | 8736 | 8736 | 187 | 187 | 2.14% | 2.14% |  |
| D | 8736 | 8736 | 104 | 104 | 1.19% | 1.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1103336 | 4713.09 | 945 | 920 | 233.9 |
| A | 3 | 14 | 22864 | 93.81 | 945 | 920 | 233.9 |
| A | 8 | 6 | 21314 | 87.19 | 945 | 920 | 233.9 |
| B | 10 | 128 | 1647633 | 8077.38 | 934 | 898 | 203.9 |
| B | 5 | 185 | 162429 | 792.32 | 934 | 898 | 203.9 |
| B | 6 | 51 | 160186 | 781.32 | 934 | 898 | 203.9 |
| C | 15 | 224 | 1256864 | 4994.54 | 918 | 911 | 251.5 |
| C | 12 | 252 | 203486 | 805.58 | 918 | 911 | 251.5 |
| C | 14 | 254 | 28983 | 111.63 | 918 | 911 | 251.5 |
| D | 12 | 110 | 275056 | 1072.88 | 911 | 871 | 255.6 |
| D | 13 | 138 | 120478 | 468.02 | 911 | 871 | 255.6 |
| D | 8 | 240 | 104724 | 406.37 | 911 | 871 | 255.6 |

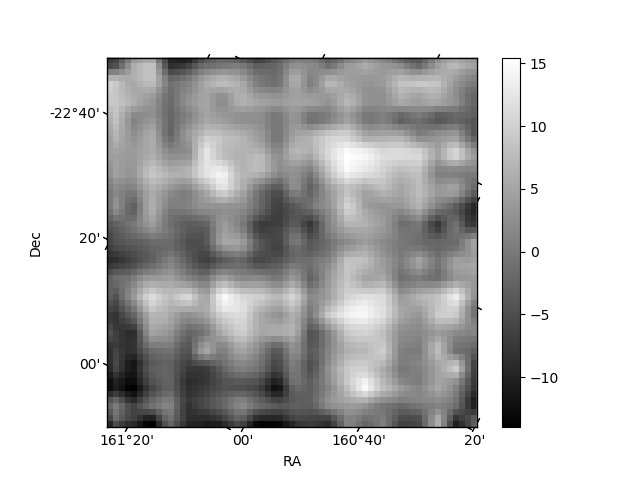

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

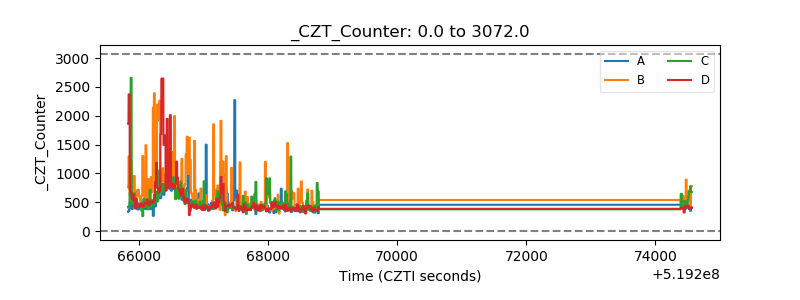

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

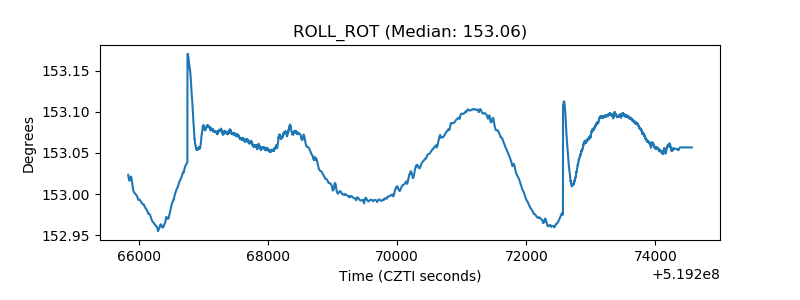

| _ROLL_ROT |  |
| _Roll_DEC |  |

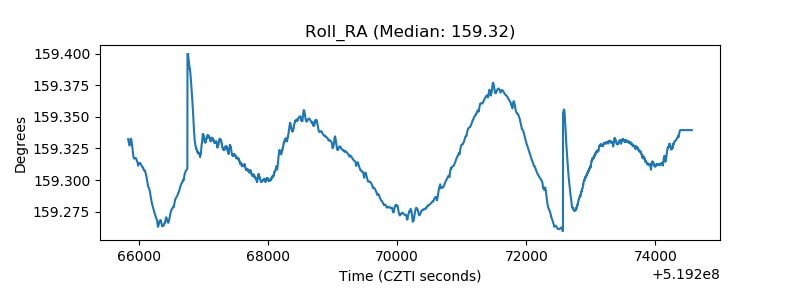

| _Roll_RA |  |
| Veto Counter |  |
