| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57984cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57984cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,350,400 | 102,962,880 |
| Size | 435.2 MB | 98.2 MB |
| Events in quadrant A | 3,523,053 | 676,332 |
| Events in quadrant B | 5,008,980 | 709,943 |
| Events in quadrant C | 4,274,443 | 632,495 |
| Events in quadrant D | 3,536,514 | 606,366 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15371 | 2 |
| B | 0 | 19594 | 2 |
| C | 0 | 17606 | 2 |
| D | 0 | 15205 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7073 | 102 | 1.442104% |
| B | 7073 | 372 | 5.259437% |
| C | 7073 | 261 | 3.690089% |
| D | 7073 | 91 | 1.286583% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

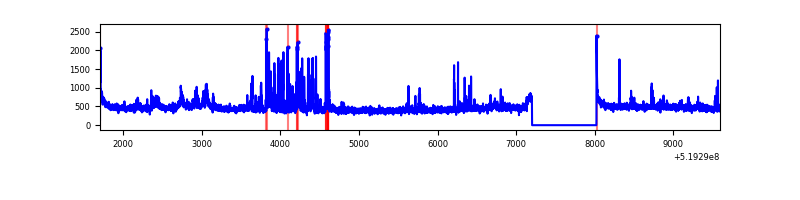

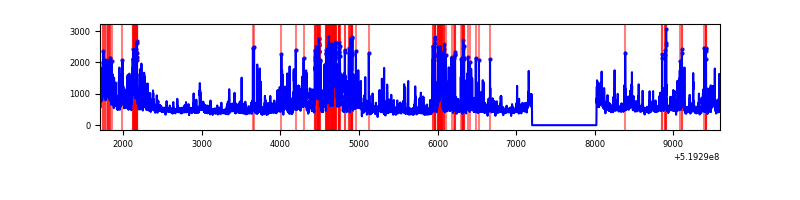

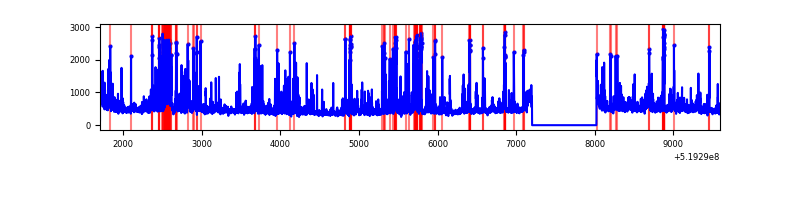

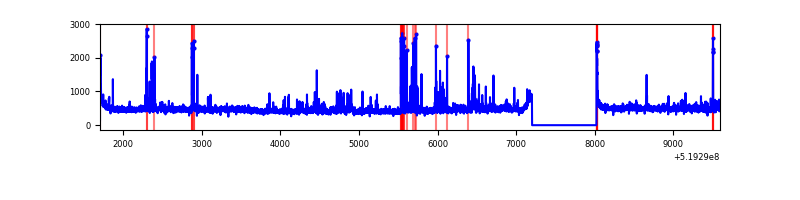

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7893 | 7073 | 17 | 17 | 0.22% | 0.24% |  |
| B | 7893 | 7073 | 193 | 193 | 2.45% | 2.73% |  |
| C | 7893 | 7073 | 177 | 177 | 2.24% | 2.50% |  |
| D | 7893 | 7073 | 37 | 37 | 0.47% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 260385 | 1343.66 | 790 | 768 | 193.2 |
| A | 12 | 3 | 102691 | 527.51 | 790 | 768 | 193.2 |
| A | 3 | 14 | 26179 | 131.52 | 790 | 768 | 193.2 |
| B | 10 | 128 | 1640084 | 9894.37 | 768 | 738 | 165.7 |
| B | 5 | 185 | 71108 | 424.72 | 768 | 738 | 165.7 |
| B | 10 | 247 | 67293 | 401.7 | 768 | 738 | 165.7 |
| C | 15 | 224 | 1074043 | 5188.21 | 758 | 750 | 206.9 |
| C | 6 | 223 | 93273 | 447.25 | 758 | 750 | 206.9 |
| C | 12 | 252 | 59838 | 285.63 | 758 | 750 | 206.9 |
| D | 12 | 110 | 111615 | 514.64 | 766 | 734 | 215.5 |
| D | 2 | 249 | 95484 | 439.77 | 766 | 734 | 215.5 |
| D | 8 | 240 | 68044 | 312.41 | 766 | 734 | 215.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

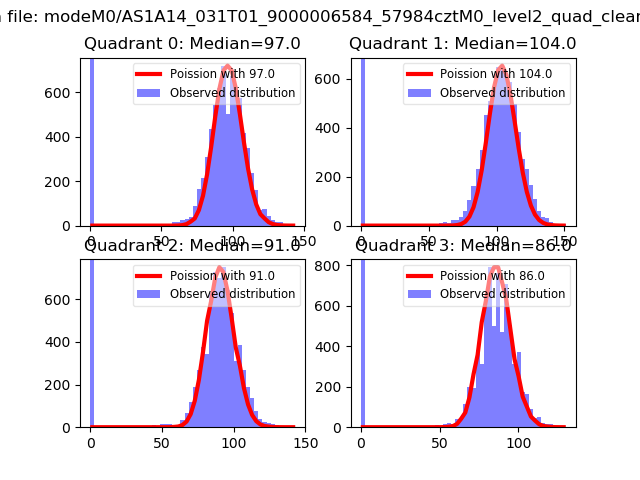

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

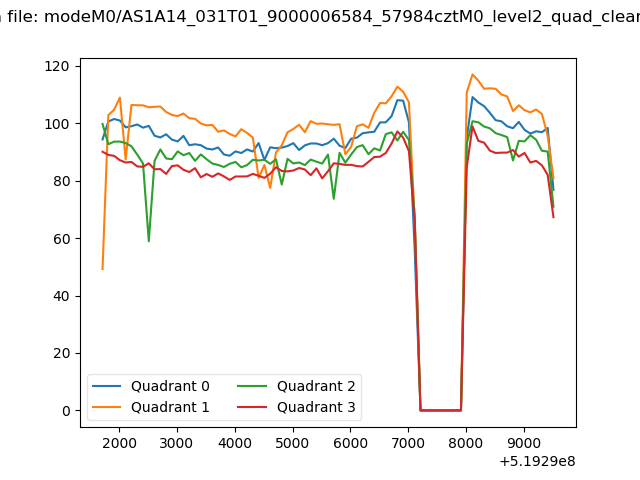

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

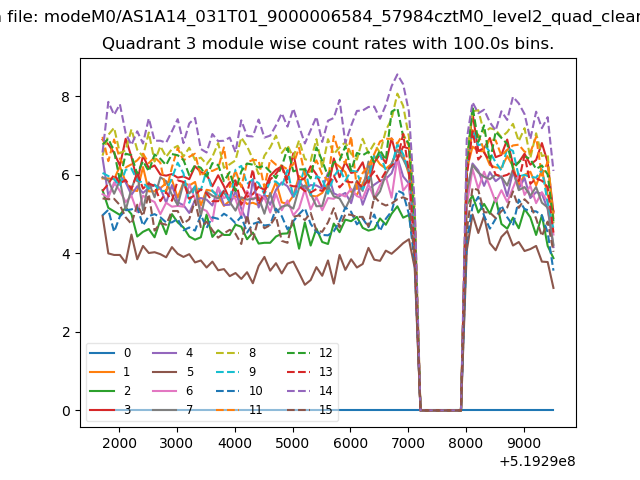

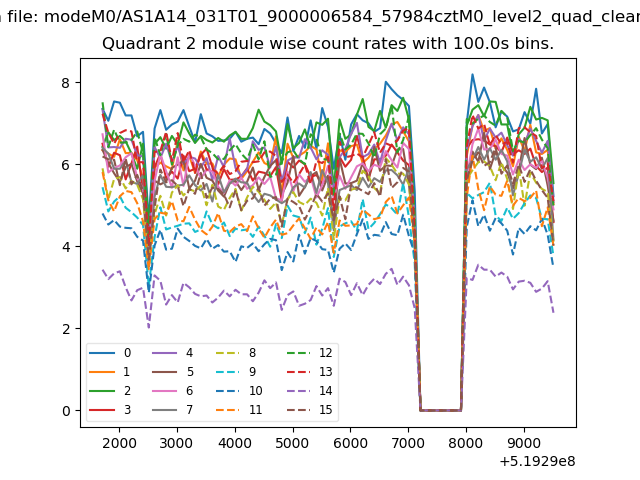

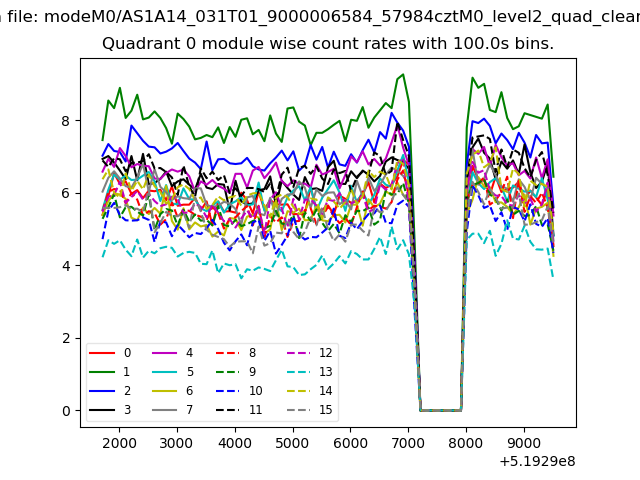

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

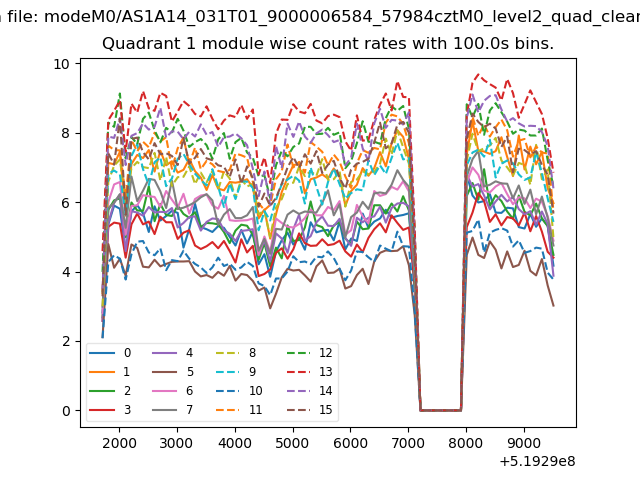

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

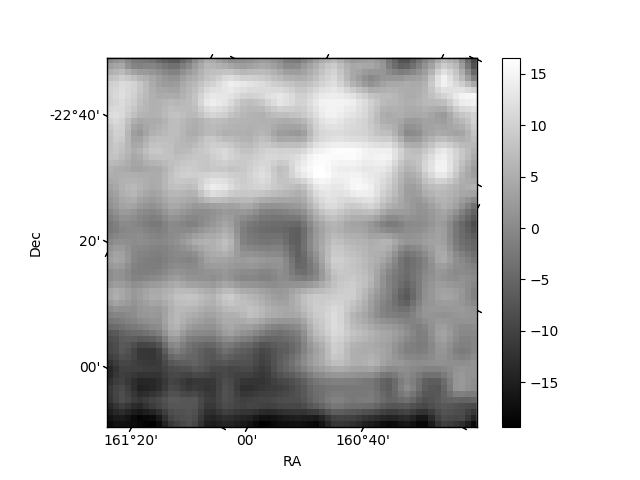

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

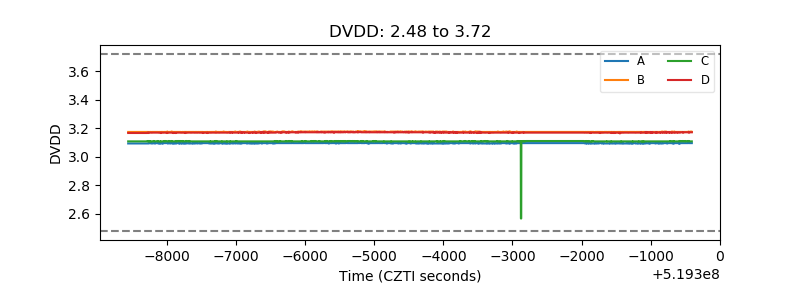

| D_VDD |  |

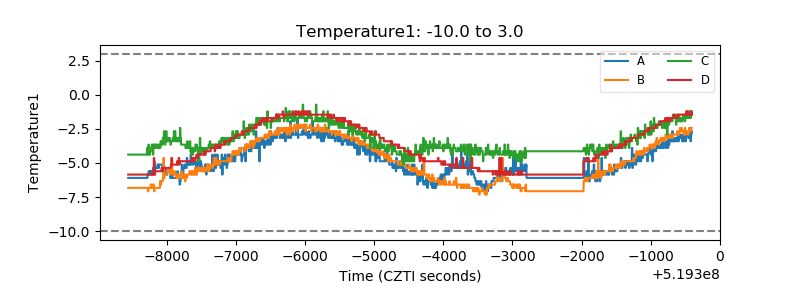

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

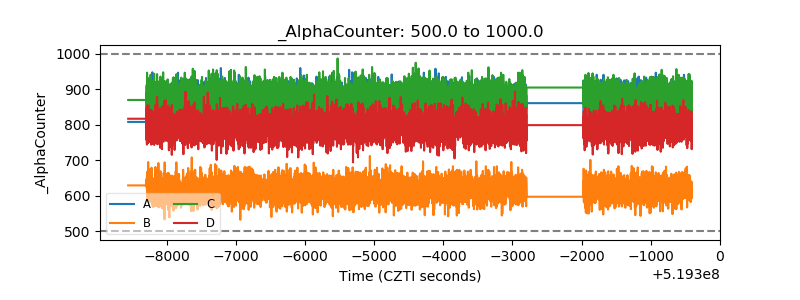

| Alpha Counter |  |

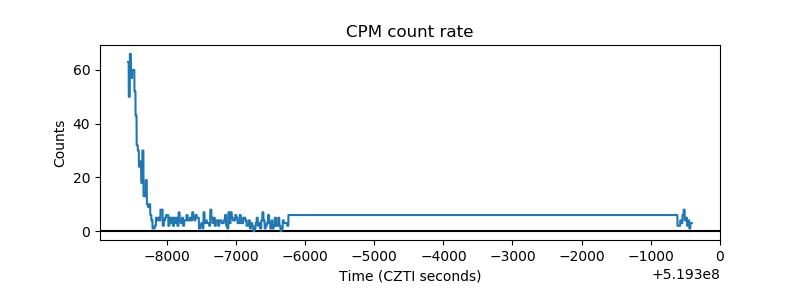

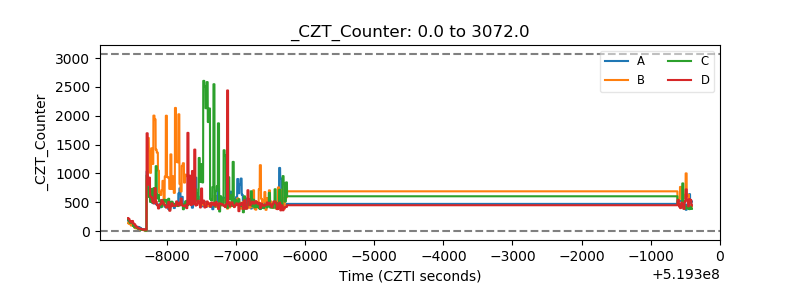

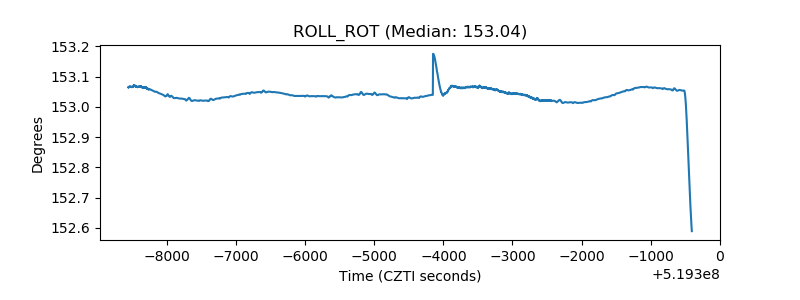

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

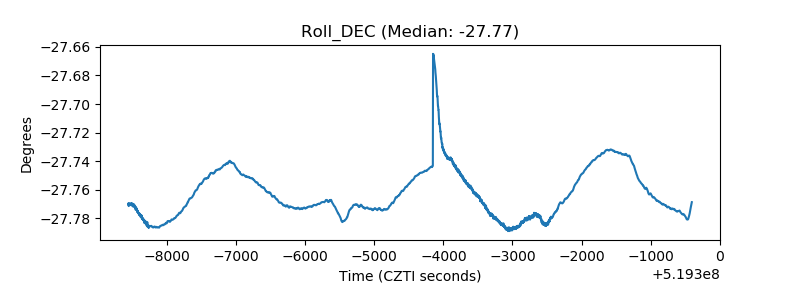

| _Roll_DEC |  |

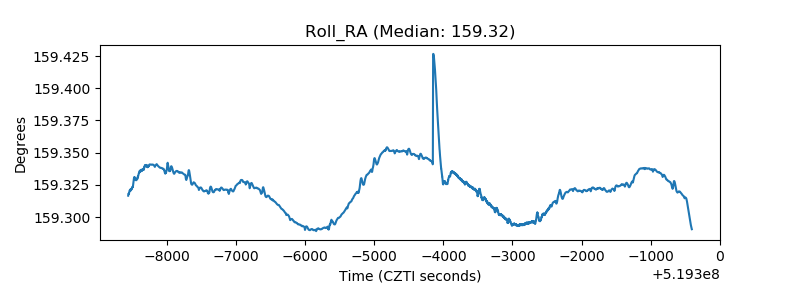

| _Roll_RA |  |

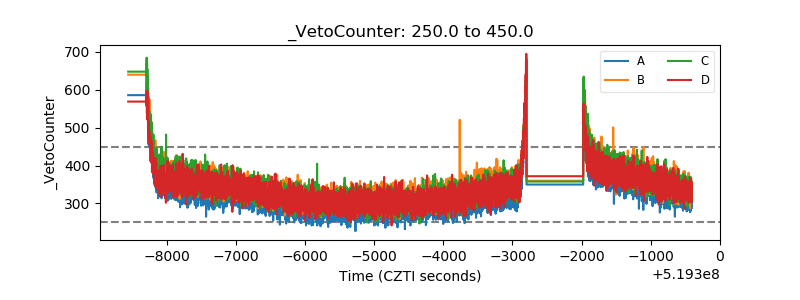

| Veto Counter |  |
