| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57985cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57985cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,320,000 | 99,063,360 |
| Size | 484.8 MB | 94.5 MB |
| Events in quadrant A | 3,346,436 | 666,297 |
| Events in quadrant B | 6,410,485 | 648,825 |
| Events in quadrant C | 5,052,493 | 601,336 |
| Events in quadrant D | 3,470,094 | 601,504 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14905 | 2 |
| B | 0 | 23658 | 2 |
| C | 0 | 19706 | 2 |
| D | 0 | 14813 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6907 | 174 | 2.519183% |
| B | 6907 | 936 | 13.551470% |
| C | 6907 | 555 | 8.035326% |
| D | 6906 | 103 | 1.491457% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

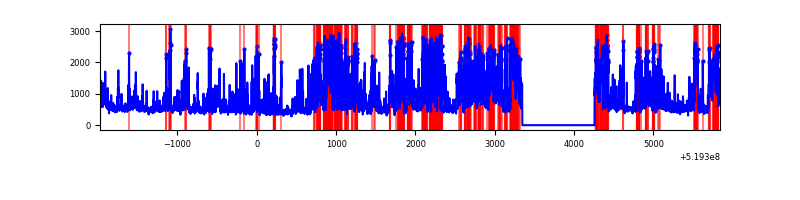

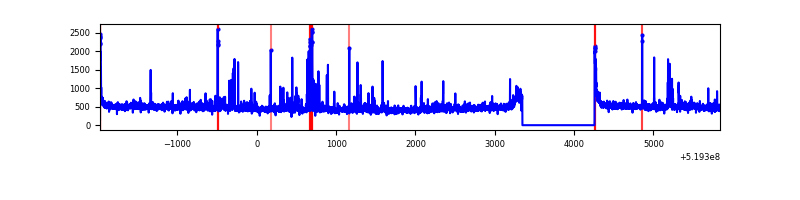

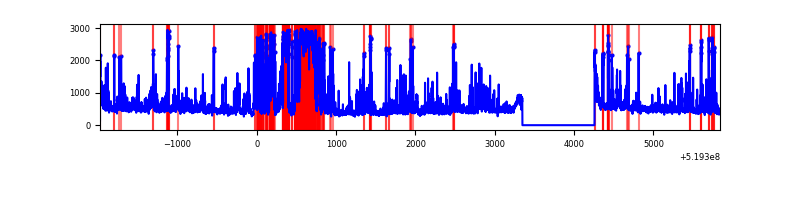

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7816 | 6906 | 34 | 34 | 0.44% | 0.49% |  |
| B | 7816 | 6906 | 666 | 666 | 8.52% | 9.64% |  |
| C | 7816 | 6906 | 472 | 472 | 6.04% | 6.83% |  |
| D | 7815 | 6905 | 28 | 28 | 0.36% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 225733 | 1175.86 | 779 | 757 | 191.3 |
| A | 12 | 3 | 33951 | 173.49 | 779 | 757 | 191.3 |
| A | 3 | 14 | 22923 | 115.85 | 779 | 757 | 191.3 |
| B | 10 | 128 | 2824913 | 18020.88 | 728 | 703 | 156.7 |
| B | 5 | 185 | 322975 | 2056.37 | 728 | 703 | 156.7 |
| B | 4 | 201 | 96027 | 608.25 | 728 | 703 | 156.7 |
| C | 15 | 224 | 1940600 | 9627.17 | 733 | 729 | 201.5 |
| C | 6 | 223 | 176776 | 873.68 | 733 | 729 | 201.5 |
| C | 2 | 0 | 40010 | 194.94 | 733 | 729 | 201.5 |
| D | 12 | 110 | 142856 | 667.21 | 757 | 722 | 213.0 |
| D | 8 | 240 | 105626 | 492.44 | 757 | 722 | 213.0 |
| D | 2 | 31 | 79487 | 369.74 | 757 | 722 | 213.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

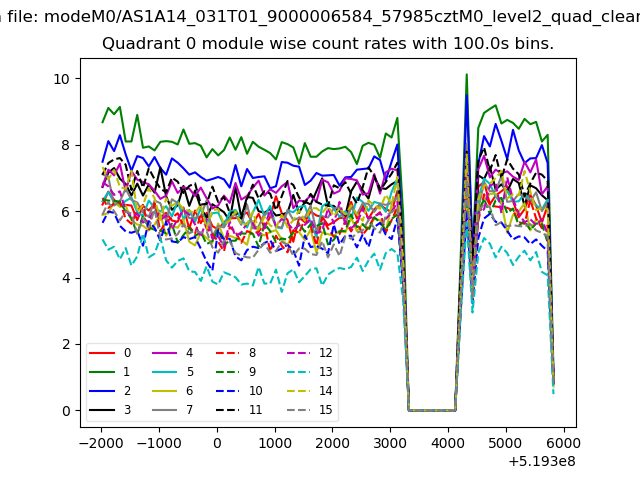

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

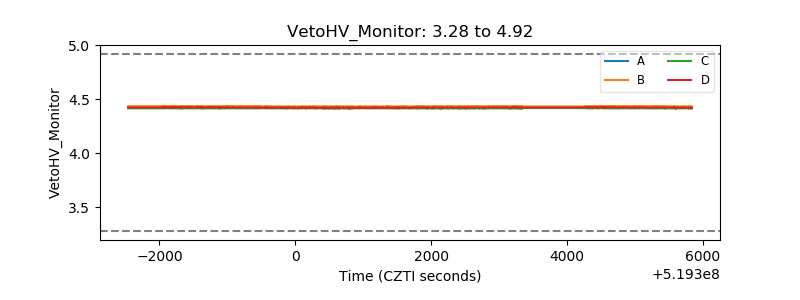

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

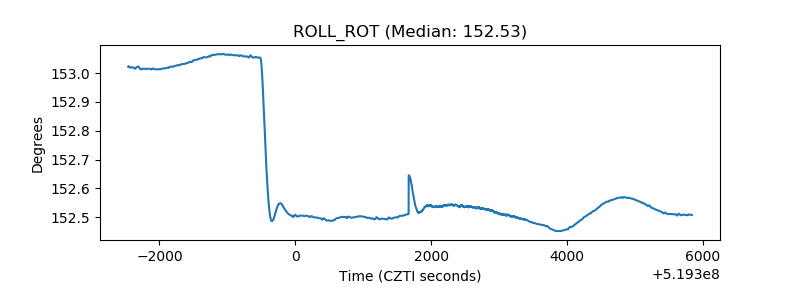

| _ROLL_ROT |  |

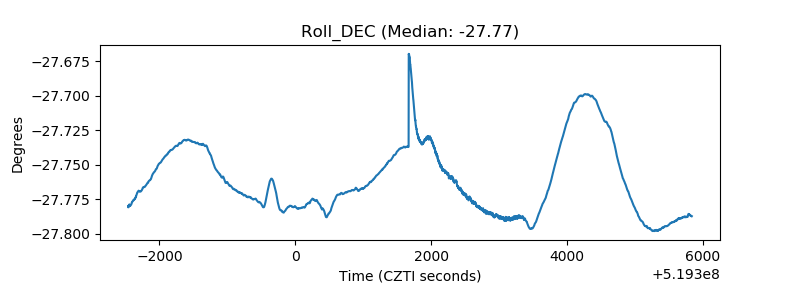

| _Roll_DEC |  |

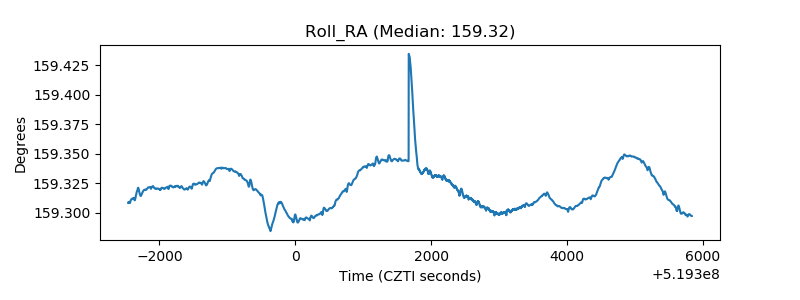

| _Roll_RA |  |
| Veto Counter |  |
