| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57987cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57987cztM0_level2_quad_clean.evt |
| Size (bytes) | 423,452,160 | 90,037,440 |
| Size | 403.8 MB | 85.9 MB |
| Events in quadrant A | 4,244,107 | 570,339 |
| Events in quadrant B | 4,131,572 | 627,096 |
| Events in quadrant C | 3,400,549 | 563,751 |
| Events in quadrant D | 3,425,665 | 540,321 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16887 | 1 |
| B | 0 | 16387 | 1 |
| C | 0 | 14394 | 3 |
| D | 0 | 14324 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6080 | 449 | 7.384868% |
| B | 6081 | 309 | 5.081401% |
| C | 6080 | 151 | 2.483553% |
| D | 6080 | 75 | 1.233553% |

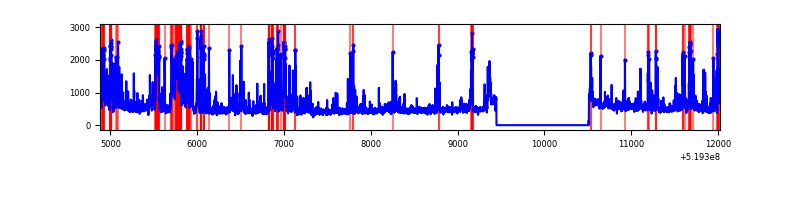

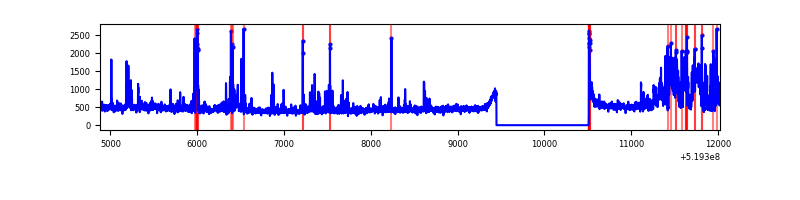

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7145 | 6081 | 265 | 265 | 3.71% | 4.36% |  |
| B | 7145 | 6081 | 201 | 201 | 2.81% | 3.31% |  |
| C | 7144 | 6080 | 106 | 106 | 1.48% | 1.74% |  |
| D | 7145 | 6081 | 44 | 44 | 0.62% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1523594 | 9201.09 | 665 | 648 | 165.5 |
| A | 3 | 14 | 113679 | 682.89 | 665 | 648 | 165.5 |
| A | 13 | 248 | 26392 | 155.54 | 665 | 648 | 165.5 |
| B | 10 | 128 | 1114623 | 7945.94 | 657 | 633 | 140.2 |
| B | 4 | 201 | 110997 | 787.21 | 657 | 633 | 140.2 |
| B | 5 | 185 | 39942 | 280.39 | 657 | 633 | 140.2 |
| C | 15 | 224 | 707061 | 3930.84 | 648 | 643 | 179.7 |
| C | 12 | 252 | 74222 | 409.43 | 648 | 643 | 179.7 |
| C | 6 | 223 | 65962 | 363.47 | 648 | 643 | 179.7 |
| D | 12 | 110 | 526104 | 2808.54 | 654 | 625 | 187.1 |
| D | 8 | 240 | 82047 | 435.18 | 654 | 625 | 187.1 |
| D | 2 | 31 | 52493 | 277.22 | 654 | 625 | 187.1 |

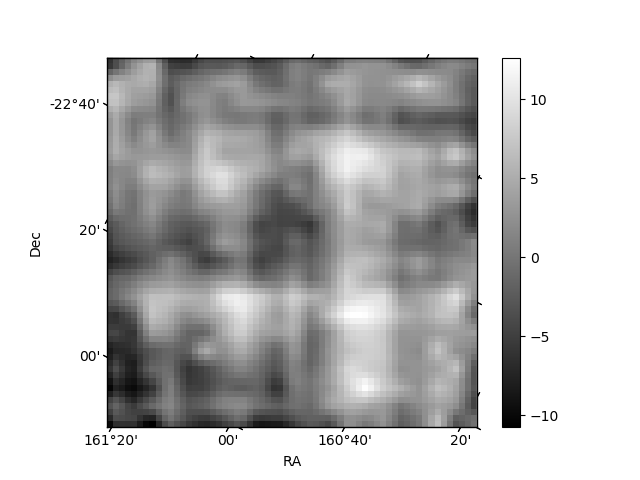

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

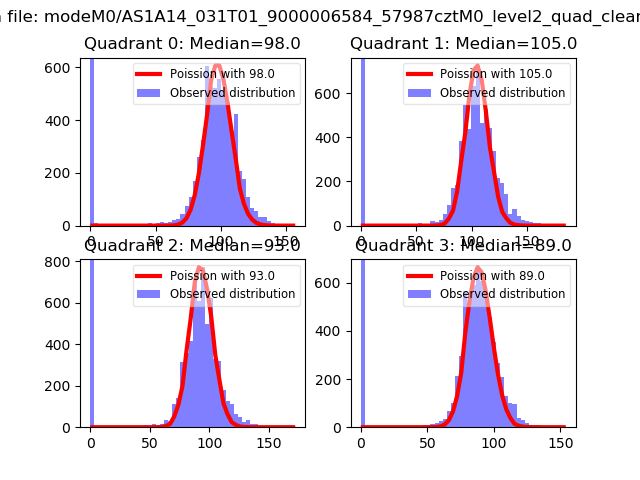

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

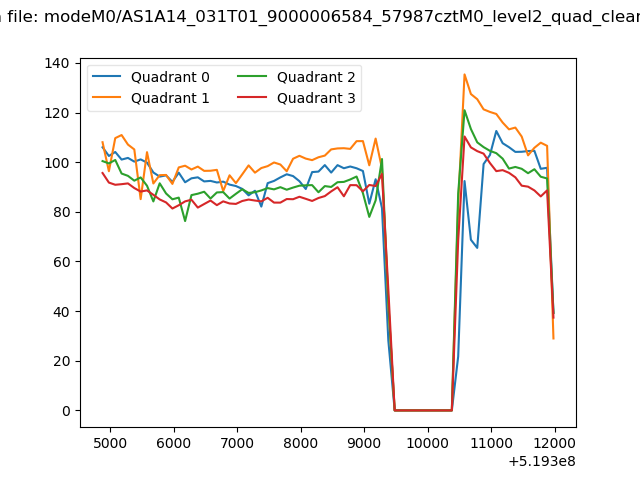

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

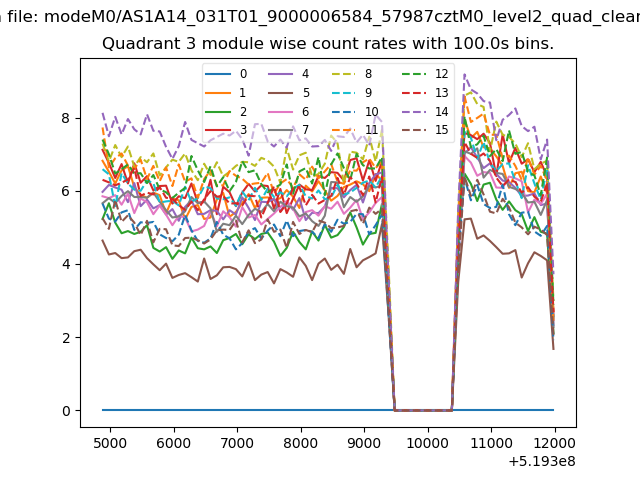

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

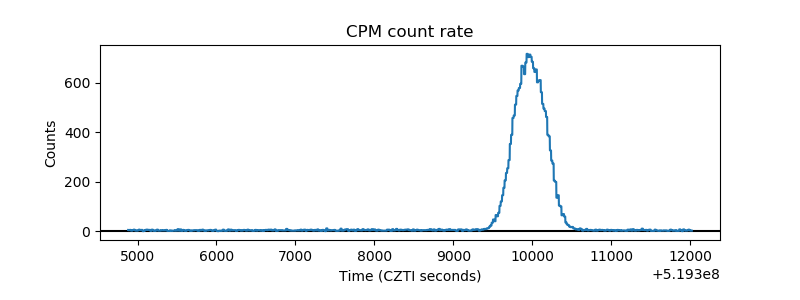

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
