| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57988cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57988cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,678,080 | 91,555,200 |
| Size | 436.5 MB | 87.3 MB |
| Events in quadrant A | 4,045,135 | 601,884 |
| Events in quadrant B | 4,586,289 | 629,367 |
| Events in quadrant C | 3,392,150 | 571,573 |
| Events in quadrant D | 4,444,855 | 543,432 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16177 | 1 |
| B | 0 | 17684 | 1 |
| C | 0 | 14496 | 1 |
| D | 0 | 17333 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6093 | 285 | 4.677499% |
| B | 6094 | 441 | 7.236626% |
| C | 6094 | 159 | 2.609124% |
| D | 6094 | 138 | 2.264522% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7223 | 6094 | 200 | 200 | 2.77% | 3.28% |  |
| B | 7224 | 6095 | 348 | 348 | 4.82% | 5.71% |  |
| C | 7224 | 6095 | 81 | 81 | 1.12% | 1.33% |  |
| D | 7224 | 6095 | 121 | 121 | 1.67% | 1.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1292293 | 7654.04 | 680 | 664 | 168.8 |
| A | 3 | 14 | 67630 | 396.83 | 680 | 664 | 168.8 |
| A | 13 | 248 | 26779 | 154.75 | 680 | 664 | 168.8 |
| B | 10 | 128 | 1227075 | 8584.35 | 663 | 640 | 142.9 |
| B | 4 | 171 | 254366 | 1775.94 | 663 | 640 | 142.9 |
| B | 4 | 236 | 103663 | 721.1 | 663 | 640 | 142.9 |
| C | 15 | 224 | 356984 | 1987.0 | 651 | 647 | 179.3 |
| C | 15 | 201 | 277795 | 1545.43 | 651 | 647 | 179.3 |
| C | 6 | 223 | 77786 | 430.14 | 651 | 647 | 179.3 |
| D | 12 | 110 | 1423877 | 7665.29 | 657 | 628 | 185.7 |
| D | 2 | 31 | 184123 | 988.26 | 657 | 628 | 185.7 |
| D | 5 | 173 | 41255 | 218.81 | 657 | 628 | 185.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

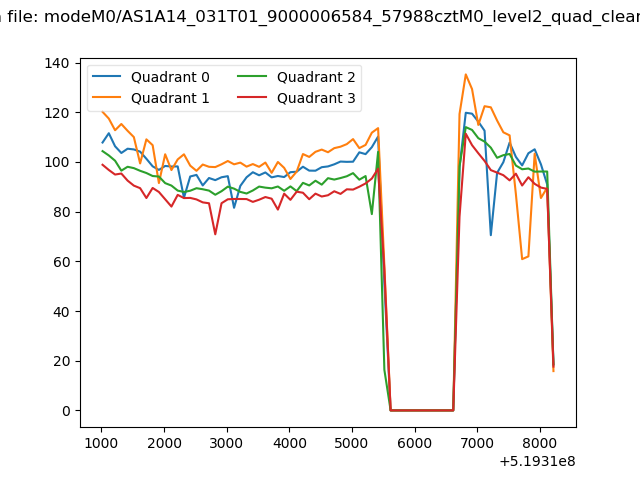

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

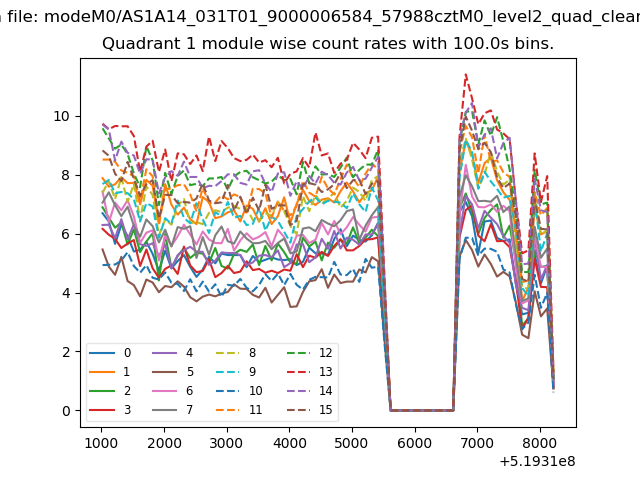

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

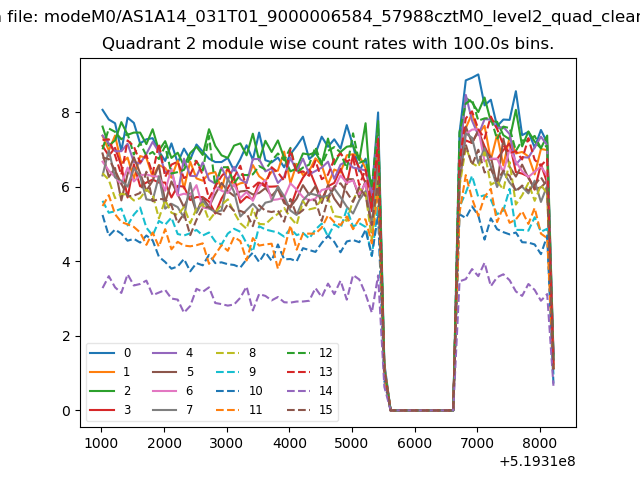

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

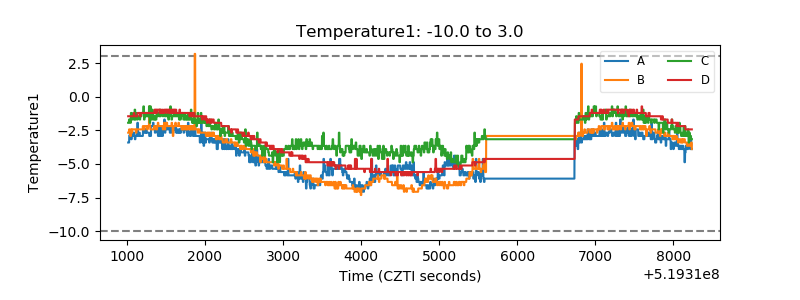

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

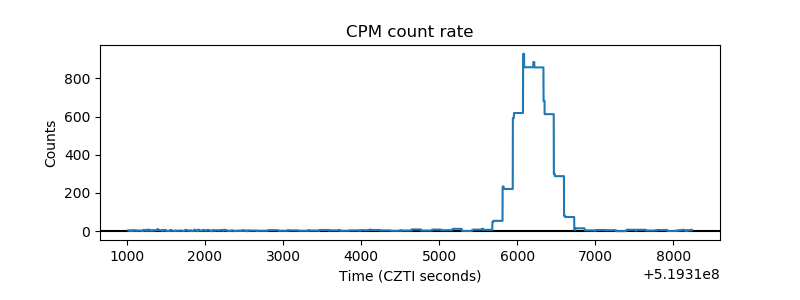

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

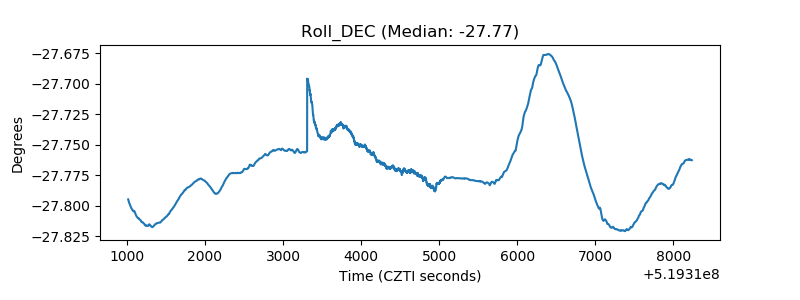

| _Roll_DEC |  |

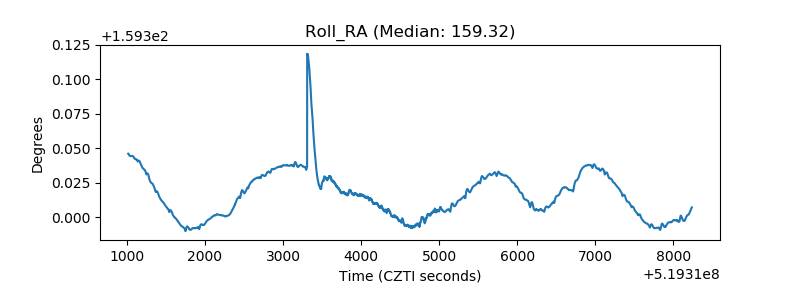

| _Roll_RA |  |
| Veto Counter |  |
