| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57990cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57990cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,576,000 | 94,288,320 |
| Size | 507.0 MB | 89.9 MB |
| Events in quadrant A | 4,720,778 | 635,452 |
| Events in quadrant B | 6,580,074 | 597,766 |
| Events in quadrant C | 4,578,332 | 594,277 |
| Events in quadrant D | 3,297,124 | 577,504 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18449 | 4 |
| B | 0 | 23905 | 2 |
| C | 0 | 18237 | 2 |
| D | 0 | 14441 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6452 | 336 | 5.207688% |
| B | 6452 | 1155 | 17.901426% |
| C | 6452 | 350 | 5.424675% |
| D | 6452 | 62 | 0.960942% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

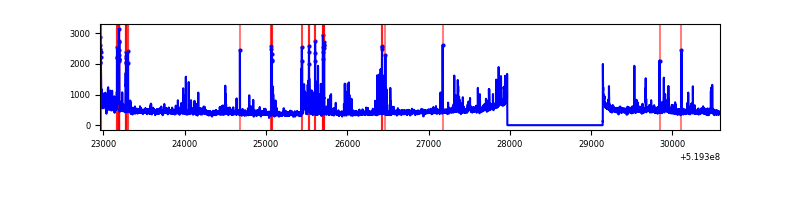

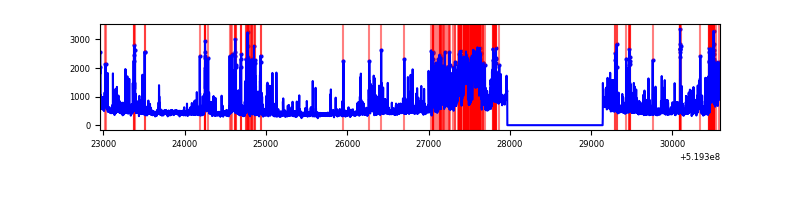

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7627 | 6453 | 243 | 243 | 3.19% | 3.77% |  |
| B | 7627 | 6453 | 942 | 942 | 12.35% | 14.60% |  |
| C | 7627 | 6453 | 282 | 282 | 3.70% | 4.37% |  |
| D | 7627 | 6453 | 56 | 56 | 0.73% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1810534 | 10206.22 | 714 | 697 | 177.3 |
| A | 4 | 236 | 41096 | 227.82 | 714 | 697 | 177.3 |
| A | 12 | 3 | 39611 | 219.45 | 714 | 697 | 177.3 |
| B | 10 | 128 | 3603426 | 25396.92 | 660 | 636 | 141.9 |
| B | 10 | 247 | 78683 | 550.17 | 660 | 636 | 141.9 |
| B | 5 | 248 | 40633 | 281.95 | 660 | 636 | 141.9 |
| C | 15 | 201 | 1255442 | 6634.74 | 684 | 675 | 189.1 |
| C | 15 | 224 | 592631 | 3130.04 | 684 | 675 | 189.1 |
| C | 12 | 252 | 36882 | 191.45 | 684 | 675 | 189.1 |
| D | 12 | 248 | 159653 | 813.48 | 691 | 662 | 195.4 |
| D | 8 | 240 | 131513 | 669.5 | 691 | 662 | 195.4 |
| D | 2 | 31 | 101649 | 516.7 | 691 | 662 | 195.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

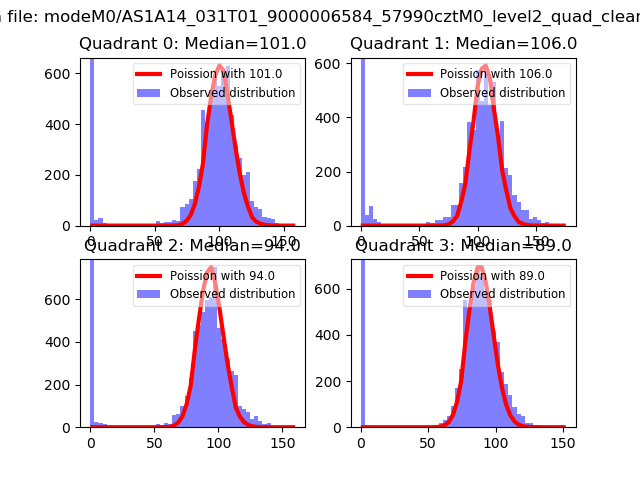

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

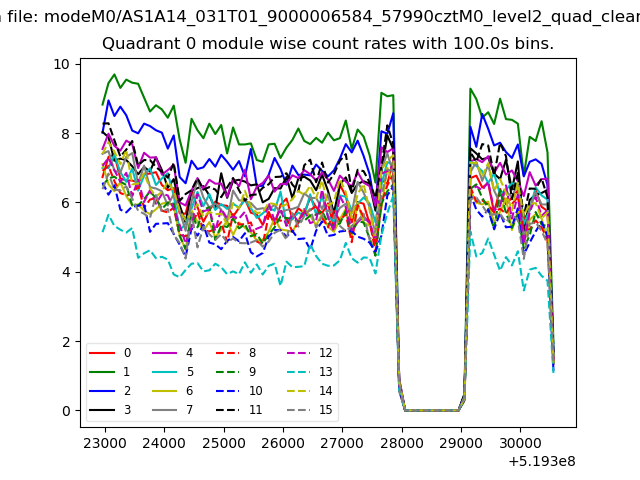

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

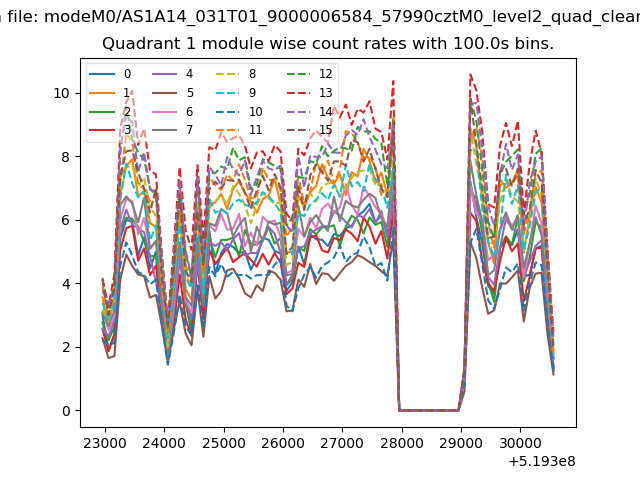

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

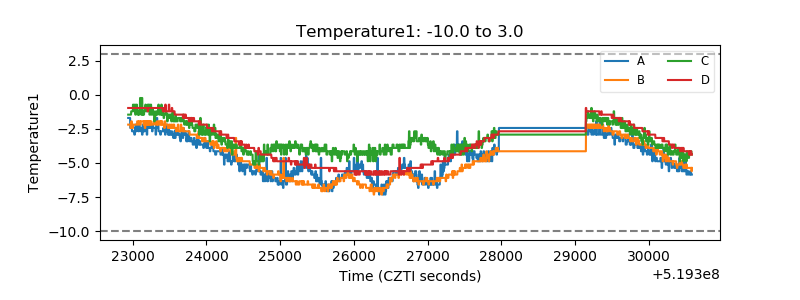

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

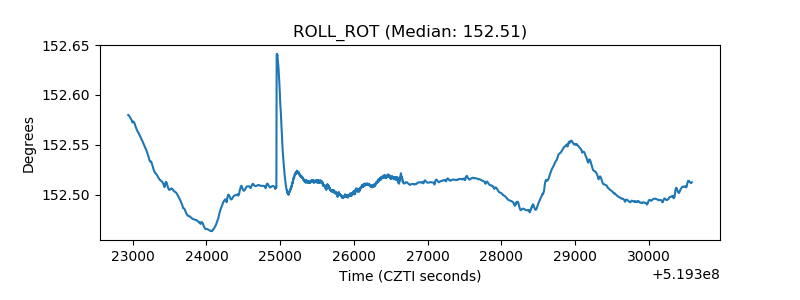

| _ROLL_ROT |  |
| _Roll_DEC |  |

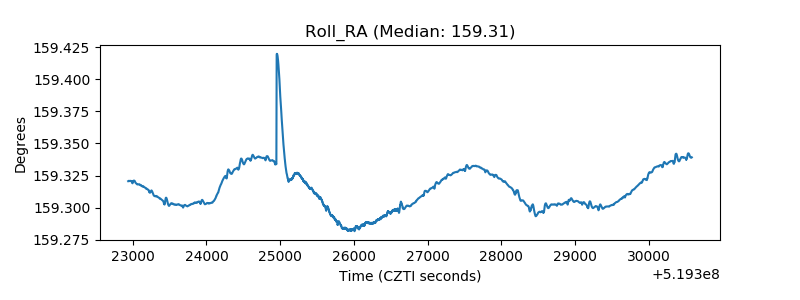

| _Roll_RA |  |
| Veto Counter |  |
