| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57991cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57991cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,782,400 | 94,403,520 |
| Size | 555.8 MB | 90.0 MB |
| Events in quadrant A | 4,978,788 | 625,565 |
| Events in quadrant B | 6,582,101 | 623,852 |
| Events in quadrant C | 5,413,569 | 576,746 |
| Events in quadrant D | 4,086,395 | 572,098 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19347 | 2 |
| B | 0 | 24166 | 3 |
| C | 0 | 20773 | 2 |
| D | 0 | 16634 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6606 | 402 | 6.085377% |
| B | 6605 | 947 | 14.337623% |
| C | 6605 | 464 | 7.024981% |
| D | 6605 | 110 | 1.665405% |

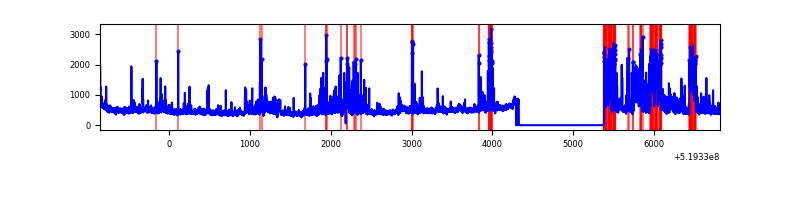

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7677 | 6609 | 295 | 295 | 3.84% | 4.46% |  |
| B | 7676 | 6608 | 700 | 700 | 9.12% | 10.59% |  |
| C | 7676 | 6608 | 488 | 488 | 6.36% | 7.38% |  |
| D | 7676 | 6608 | 141 | 141 | 1.84% | 2.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 2103564 | 11897.57 | 713 | 696 | 176.7 |
| A | 3 | 14 | 42071 | 234.09 | 713 | 696 | 176.7 |
| A | 4 | 238 | 21219 | 116.11 | 713 | 696 | 176.7 |
| B | 10 | 128 | 3408766 | 22810.87 | 690 | 665 | 149.4 |
| B | 5 | 248 | 76173 | 505.38 | 690 | 665 | 149.4 |
| B | 4 | 236 | 72775 | 482.64 | 690 | 665 | 149.4 |
| C | 15 | 201 | 2247142 | 11988.82 | 681 | 673 | 187.4 |
| C | 15 | 224 | 421178 | 2244.13 | 681 | 673 | 187.4 |
| C | 12 | 252 | 37650 | 197.34 | 681 | 673 | 187.4 |
| D | 12 | 110 | 503374 | 2545.76 | 692 | 661 | 197.5 |
| D | 8 | 240 | 320770 | 1621.05 | 692 | 661 | 197.5 |
| D | 2 | 31 | 188761 | 952.55 | 692 | 661 | 197.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

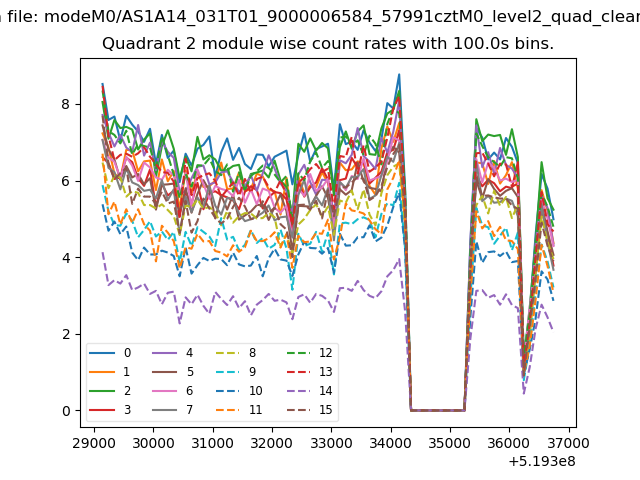

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

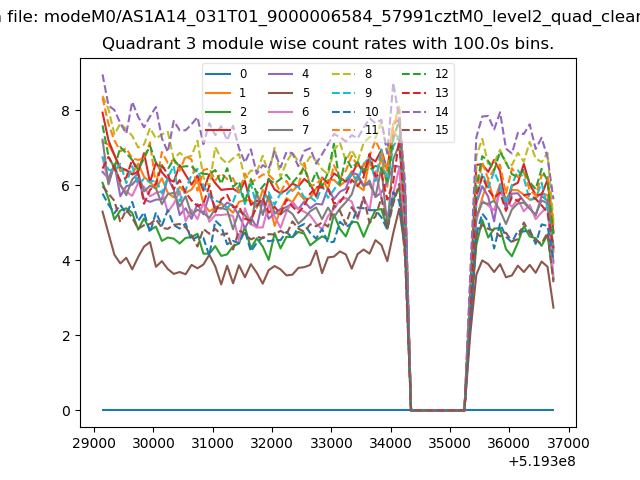

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

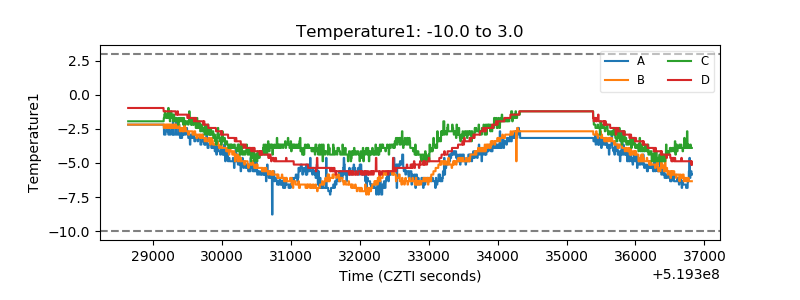

| Temperature 1 |  |

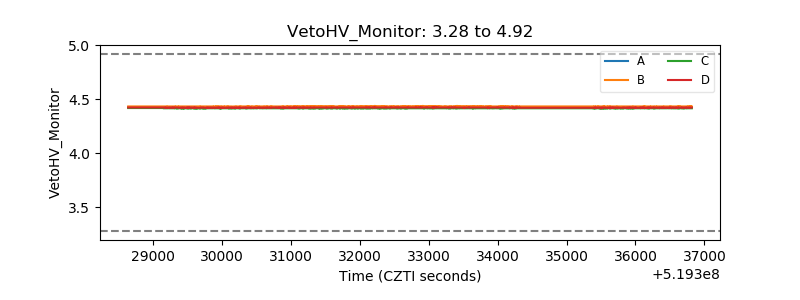

| Veto HV Monitor |  |
| Veto LLD |  |

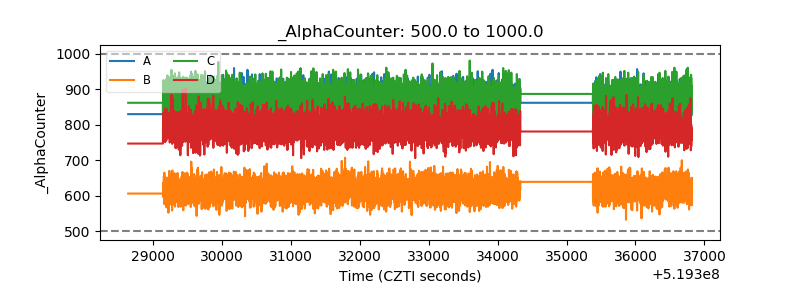

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

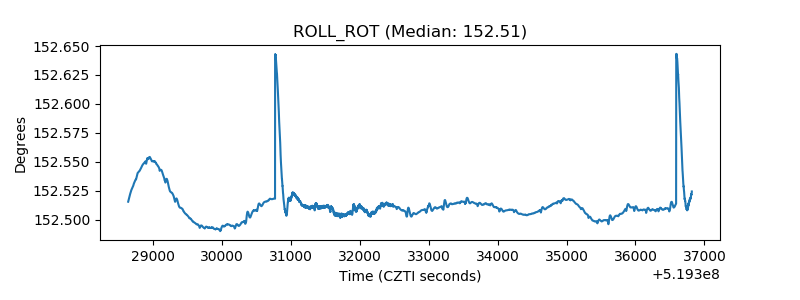

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

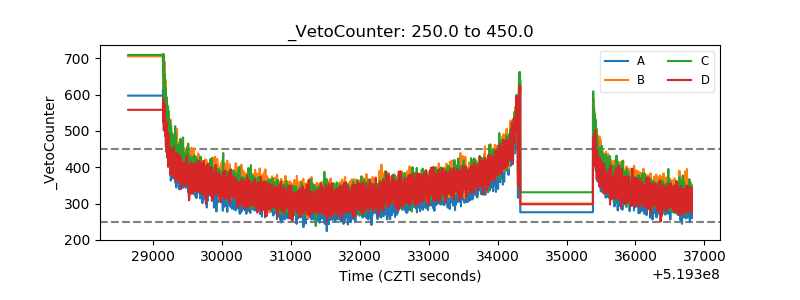

| Veto Counter |  |
