| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57992cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57992cztM0_level2_quad_clean.evt |
| Size (bytes) | 693,339,840 | 93,813,120 |
| Size | 661.2 MB | 89.5 MB |
| Events in quadrant A | 5,199,857 | 639,823 |
| Events in quadrant B | 7,786,474 | 598,100 |
| Events in quadrant C | 7,490,531 | 536,915 |
| Events in quadrant D | 4,653,074 | 583,458 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20218 | 2 |
| B | 0 | 27946 | 2 |
| C | 0 | 27206 | 2 |
| D | 0 | 18499 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6916 | 407 | 5.884905% |
| B | 6916 | 1368 | 19.780220% |
| C | 6916 | 1203 | 17.394448% |
| D | 6916 | 149 | 2.154425% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7591 | 6918 | 273 | 273 | 3.60% | 3.95% |  |
| B | 7591 | 6918 | 984 | 984 | 12.96% | 14.22% |  |
| C | 7591 | 6918 | 1160 | 1160 | 15.28% | 16.77% |  |
| D | 7591 | 6918 | 143 | 143 | 1.88% | 2.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 2155234 | 11824.94 | 738 | 717 | 182.2 |
| A | 4 | 236 | 49939 | 270.15 | 738 | 717 | 182.2 |
| A | 3 | 14 | 38993 | 210.08 | 738 | 717 | 182.2 |
| B | 10 | 128 | 4664331 | 30838.35 | 698 | 673 | 151.2 |
| B | 5 | 248 | 75033 | 491.7 | 698 | 673 | 151.2 |
| B | 0 | 153 | 48661 | 317.32 | 698 | 673 | 151.2 |
| C | 15 | 201 | 3454525 | 18759.7 | 671 | 664 | 184.1 |
| C | 15 | 224 | 1349916 | 7328.48 | 671 | 664 | 184.1 |
| C | 14 | 254 | 18302 | 95.8 | 671 | 664 | 184.1 |
| D | 12 | 110 | 1033227 | 5069.08 | 717 | 686 | 203.7 |
| D | 3 | 224 | 230484 | 1128.15 | 717 | 686 | 203.7 |
| D | 13 | 138 | 201033 | 983.57 | 717 | 686 | 203.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

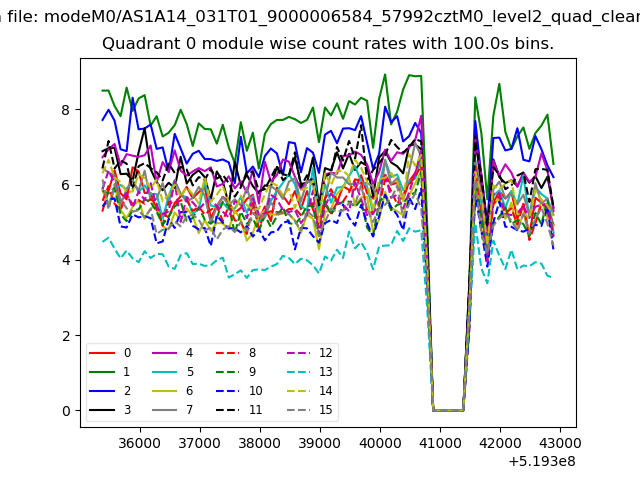

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

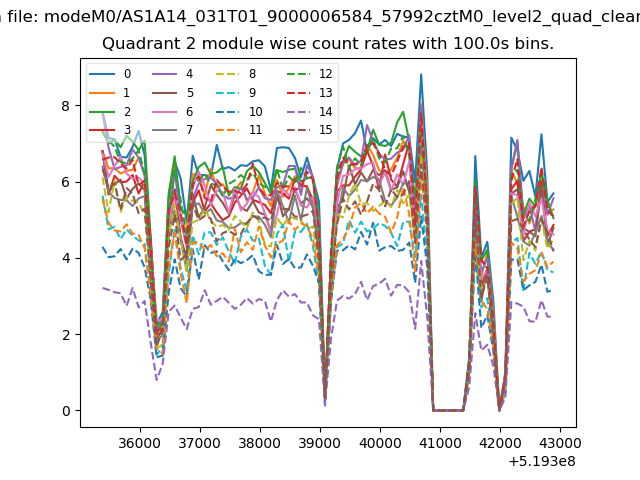

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

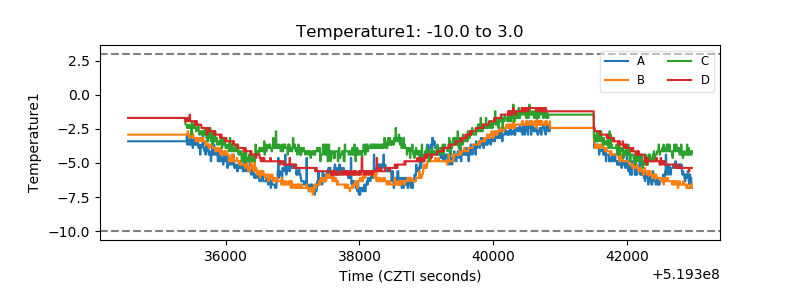

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

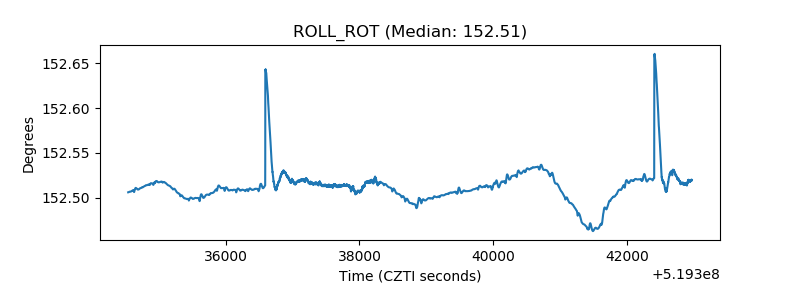

| _ROLL_ROT |  |

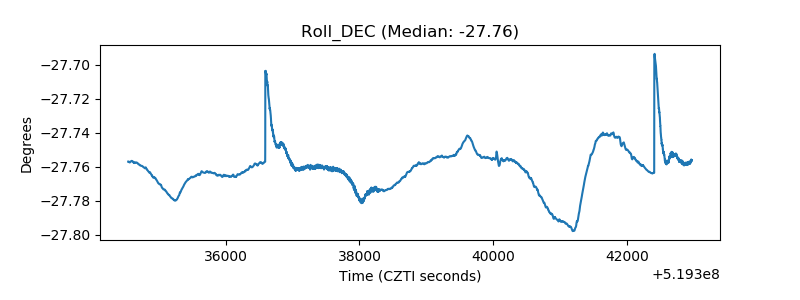

| _Roll_DEC |  |
| _Roll_RA |  |

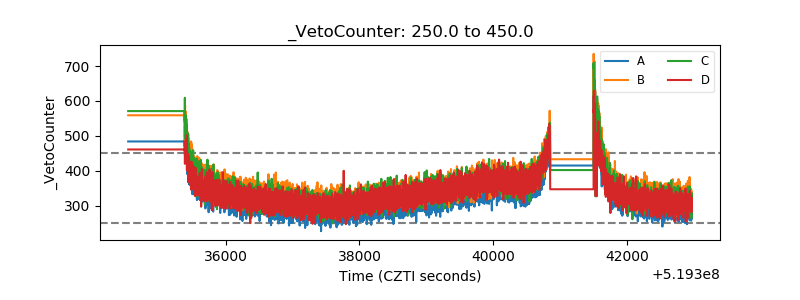

| Veto Counter |  |
