| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57993cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57993cztM0_level2_quad_clean.evt |
| Size (bytes) | 929,666,880 | 90,794,880 |
| Size | 886.6 MB | 86.6 MB |
| Events in quadrant A | 7,073,400 | 586,690 |
| Events in quadrant B | 11,044,093 | 531,506 |
| Events in quadrant C | 10,739,181 | 481,788 |
| Events in quadrant D | 4,958,730 | 610,833 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26546 | 3 |
| B | 0 | 38172 | 2 |
| C | 0 | 37270 | 2 |
| D | 0 | 20039 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7738 | 1338 | 17.291290% |
| B | 7738 | 2535 | 32.760403% |
| C | 7738 | 2229 | 28.805893% |
| D | 7738 | 149 | 1.925562% |

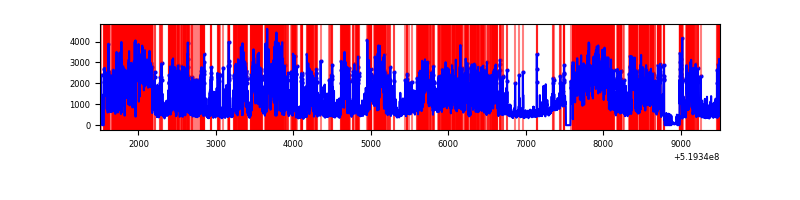

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8005 | 7922 | 927 | 927 | 11.58% | 11.70% |  |
| B | 8004 | 7920 | 1811 | 1811 | 22.63% | 22.87% |  |
| C | 8005 | 7884 | 2037 | 2037 | 25.45% | 25.84% |  |
| D | 8005 | 7922 | 111 | 111 | 1.39% | 1.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 3820611 | 19024.79 | 803 | 779 | 200.8 |
| A | 4 | 236 | 37242 | 181.61 | 803 | 779 | 200.8 |
| A | 13 | 248 | 28400 | 137.57 | 803 | 779 | 200.8 |
| B | 10 | 128 | 7567662 | 46103.76 | 752 | 722 | 164.1 |
| B | 5 | 185 | 92443 | 558.84 | 752 | 722 | 164.1 |
| B | 4 | 236 | 68882 | 415.28 | 752 | 722 | 164.1 |
| C | 15 | 201 | 4217546 | 20977.07 | 734 | 726 | 201.0 |
| C | 15 | 224 | 3335111 | 16587.29 | 734 | 726 | 201.0 |
| C | 14 | 254 | 82213 | 405.37 | 734 | 726 | 201.0 |
| D | 3 | 224 | 715272 | 3016.85 | 830 | 793 | 236.8 |
| D | 12 | 110 | 712503 | 3005.16 | 830 | 793 | 236.8 |
| D | 8 | 240 | 58691 | 244.47 | 830 | 793 | 236.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

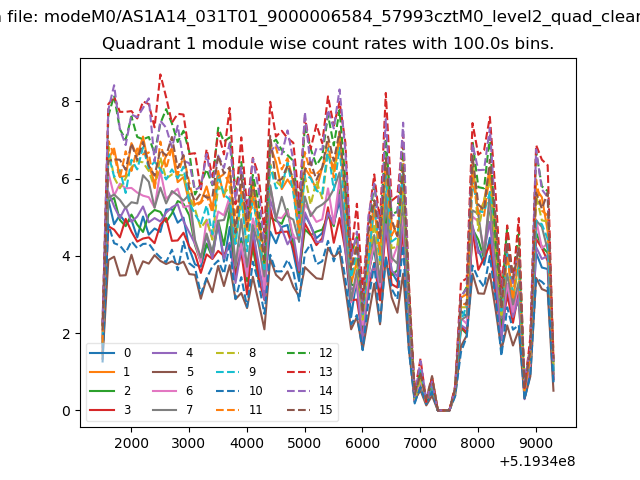

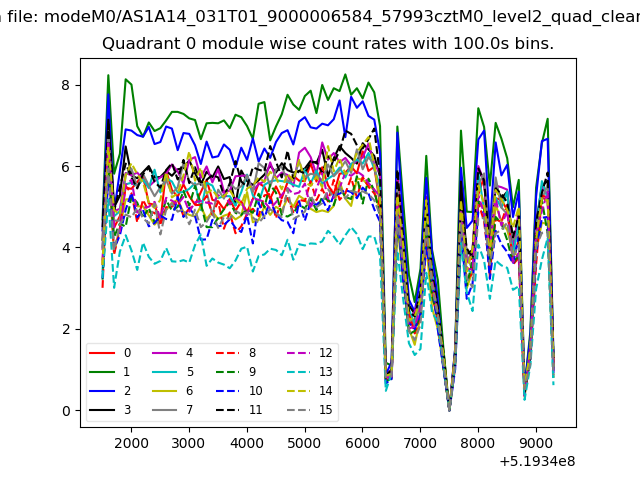

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

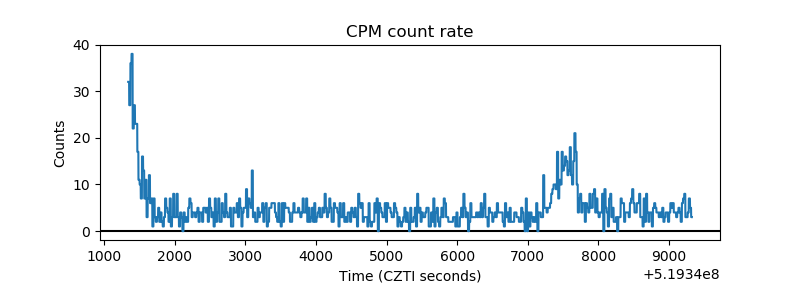

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

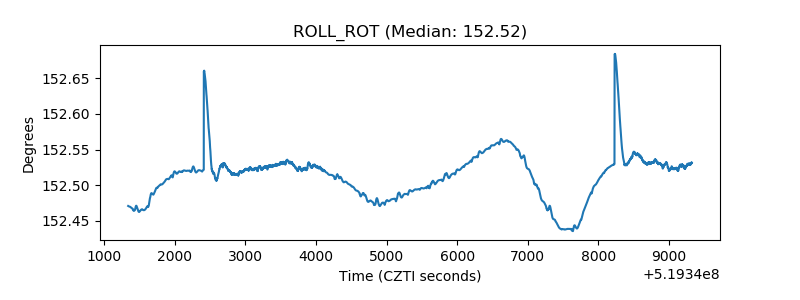

| _ROLL_ROT |  |
