| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57994cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57994cztM0_level2_quad_clean.evt |
| Size (bytes) | 849,162,240 | 101,082,240 |
| Size | 809.8 MB | 96.4 MB |
| Events in quadrant A | 5,489,707 | 685,475 |
| Events in quadrant B | 7,691,366 | 654,447 |
| Events in quadrant C | 12,611,508 | 488,745 |
| Events in quadrant D | 4,997,900 | 655,337 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22436 | 1 |
| B | 0 | 28671 | 1 |
| C | 0 | 43260 | 1 |
| D | 0 | 20707 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8298 | 659 | 7.941673% |
| B | 8298 | 1581 | 19.052784% |
| C | 8298 | 2935 | 35.369969% |
| D | 8299 | 114 | 1.373659% |

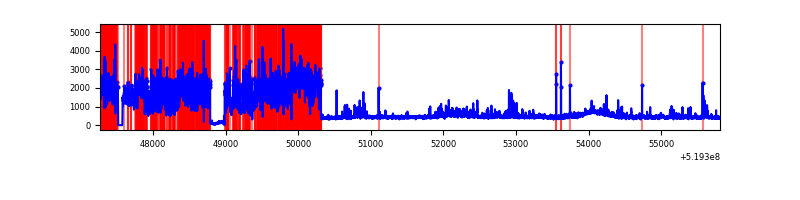

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8540 | 8481 | 372 | 372 | 4.36% | 4.39% |  |
| B | 8540 | 8480 | 1088 | 1088 | 12.74% | 12.83% |  |
| C | 8540 | 8443 | 2731 | 2731 | 31.98% | 32.35% |  |
| D | 8541 | 8482 | 109 | 109 | 1.28% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1877619 | 8402.71 | 903 | 881 | 223.3 |
| A | 2 | 143 | 35008 | 152.8 | 903 | 881 | 223.3 |
| A | 4 | 236 | 32612 | 142.07 | 903 | 881 | 223.3 |
| B | 10 | 128 | 3734705 | 19928.51 | 861 | 826 | 187.4 |
| B | 4 | 236 | 158069 | 839.24 | 861 | 826 | 187.4 |
| B | 5 | 185 | 87198 | 460.99 | 861 | 826 | 187.4 |
| C | 15 | 201 | 6463879 | 30175.8 | 776 | 767 | 214.2 |
| C | 15 | 224 | 2786444 | 13006.12 | 776 | 767 | 214.2 |
| C | 15 | 244 | 92999 | 430.62 | 776 | 767 | 214.2 |
| D | 12 | 110 | 609744 | 2385.62 | 897 | 857 | 255.2 |
| D | 3 | 224 | 430826 | 1684.62 | 897 | 857 | 255.2 |
| D | 2 | 249 | 141630 | 551.55 | 897 | 857 | 255.2 |

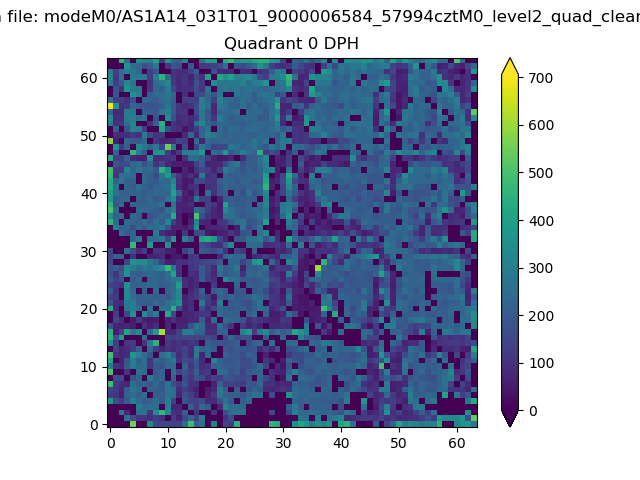

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

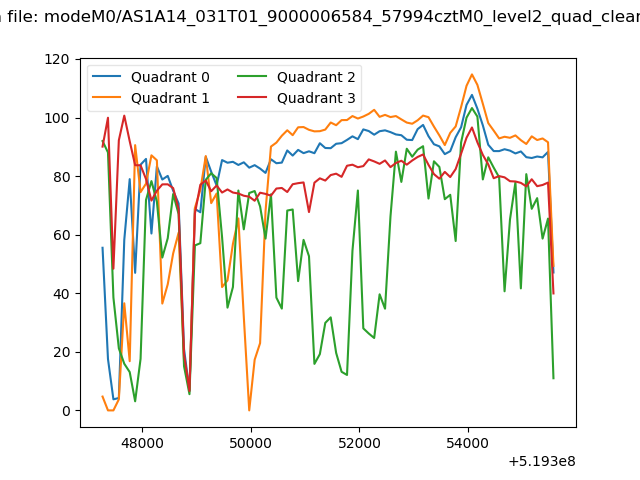

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

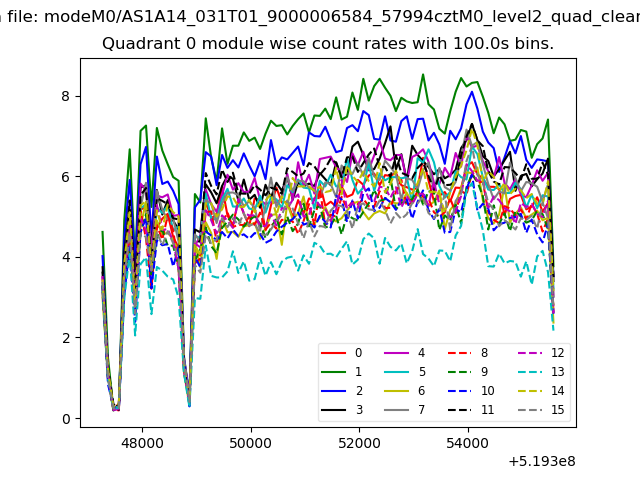

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

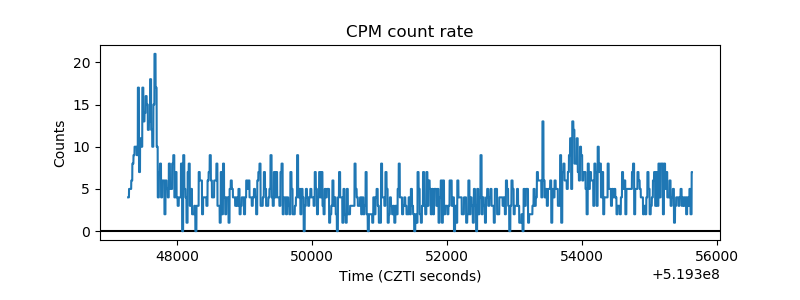

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

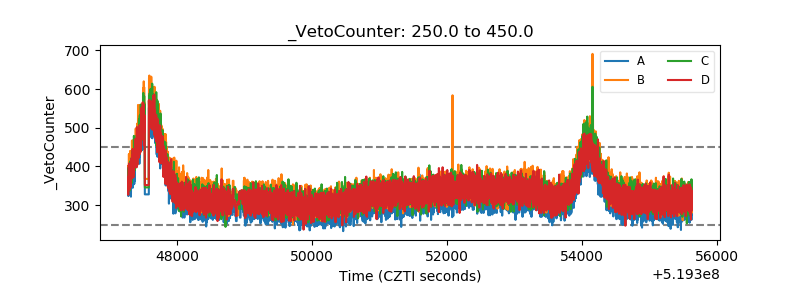

| Veto Counter |  |
