| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57995cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57995cztM0_level2_quad_clean.evt |
| Size (bytes) | 668,171,520 | 120,962,880 |
| Size | 637.2 MB | 115.4 MB |
| Events in quadrant A | 4,855,202 | 802,115 |
| Events in quadrant B | 5,517,560 | 843,701 |
| Events in quadrant C | 9,012,385 | 691,013 |
| Events in quadrant D | 4,679,142 | 726,110 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20766 | 0 |
| B | 0 | 22530 | 0 |
| C | 0 | 32730 | 0 |
| D | 0 | 19915 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8633 | 242 | 2.803197% |
| B | 8633 | 467 | 5.409475% |
| C | 8634 | 1172 | 13.574241% |
| D | 8634 | 36 | 0.416956% |

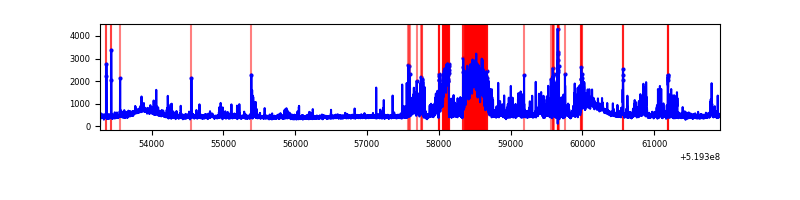

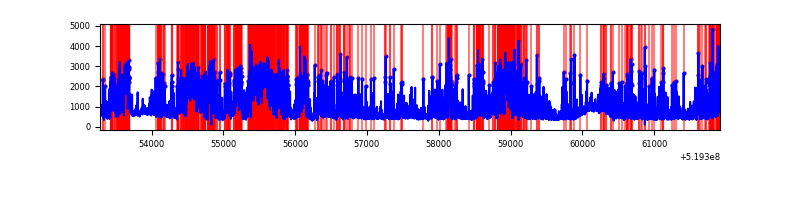

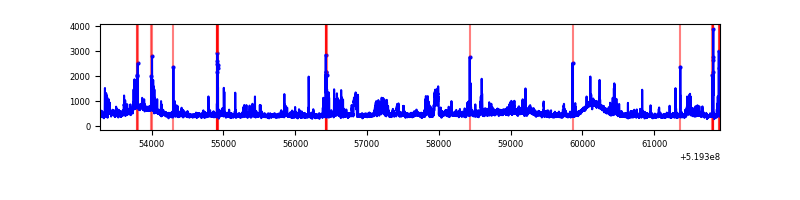

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8633 | 8633 | 164 | 164 | 1.90% | 1.90% |  |
| B | 8633 | 8633 | 276 | 276 | 3.20% | 3.20% |  |
| C | 8634 | 8634 | 1110 | 1110 | 12.86% | 12.86% |  |
| D | 8634 | 8634 | 29 | 29 | 0.34% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1031558 | 4385.9 | 956 | 933 | 235.0 |
| A | 2 | 143 | 33016 | 136.53 | 956 | 933 | 235.0 |
| A | 3 | 14 | 30667 | 126.54 | 956 | 933 | 235.0 |
| B | 4 | 236 | 1155564 | 5652.77 | 945 | 909 | 204.3 |
| B | 10 | 128 | 309348 | 1510.0 | 945 | 909 | 204.3 |
| B | 5 | 185 | 57792 | 278.48 | 945 | 909 | 204.3 |
| C | 15 | 224 | 2603308 | 10668.04 | 895 | 887 | 243.9 |
| C | 15 | 201 | 2535088 | 10388.39 | 895 | 887 | 243.9 |
| C | 14 | 246 | 105987 | 430.83 | 895 | 887 | 243.9 |
| D | 12 | 110 | 462042 | 1746.3 | 931 | 891 | 264.1 |
| D | 8 | 240 | 101361 | 380.46 | 931 | 891 | 264.1 |
| D | 5 | 173 | 74249 | 277.79 | 931 | 891 | 264.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

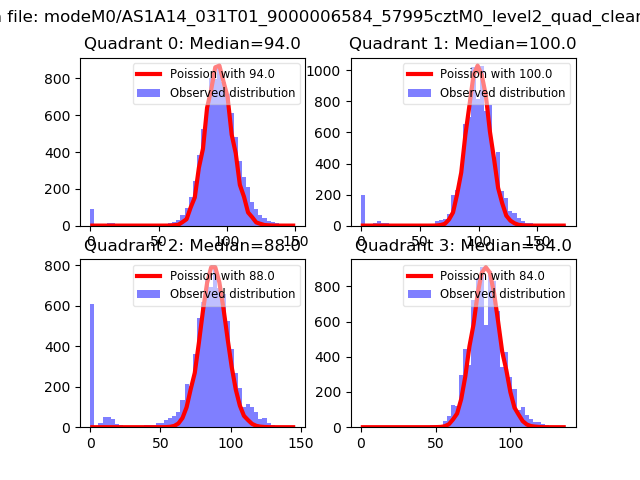

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

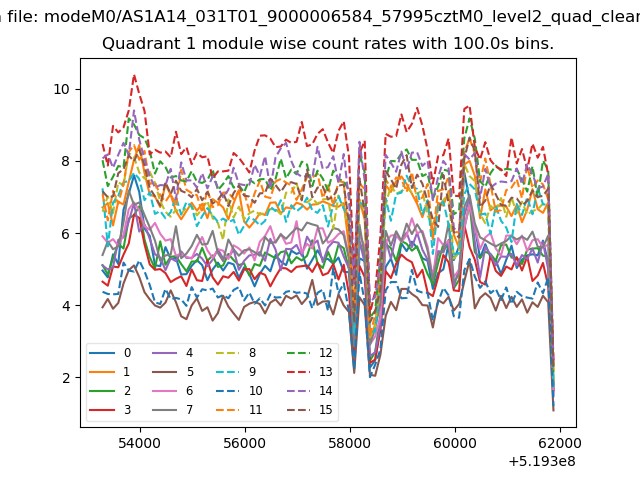

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

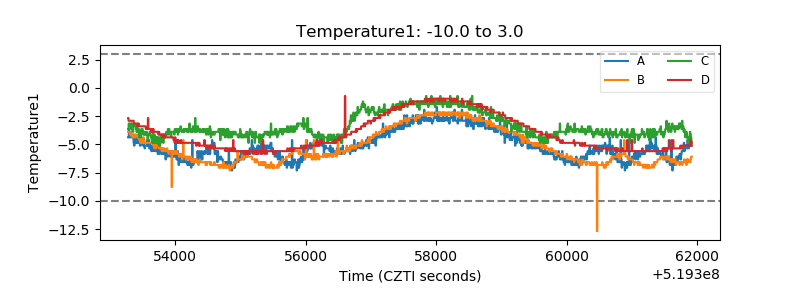

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

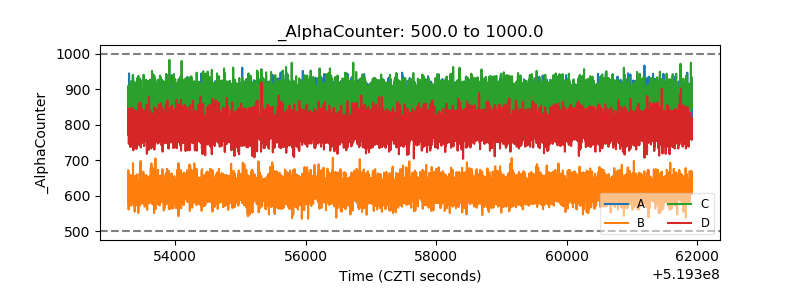

| Alpha Counter |  |

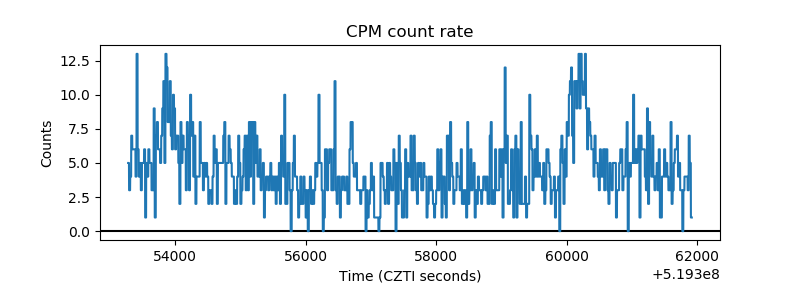

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
