| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57998cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57998cztM0_level2_quad_clean.evt |
| Size (bytes) | 577,339,200 | 95,906,880 |
| Size | 550.6 MB | 91.5 MB |
| Events in quadrant A | 3,359,552 | 649,266 |
| Events in quadrant B | 3,841,576 | 698,535 |
| Events in quadrant C | 4,287,618 | 597,488 |
| Events in quadrant D | 9,350,199 | 479,974 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14786 | 165 |
| B | 0 | 16047 | 147 |
| C | 0 | 18024 | 432 |
| D | 0 | 32723 | 236 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 141 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 2 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6861 | 88 | 1.282612% |
| B | 6871 | 160 | 2.328628% |
| C | 6850 | 371 | 5.416058% |
| D | 6862 | 1537 | 22.398718% |

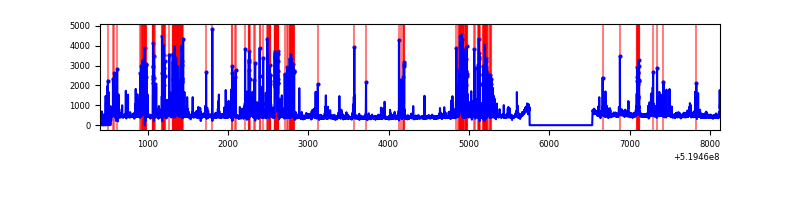

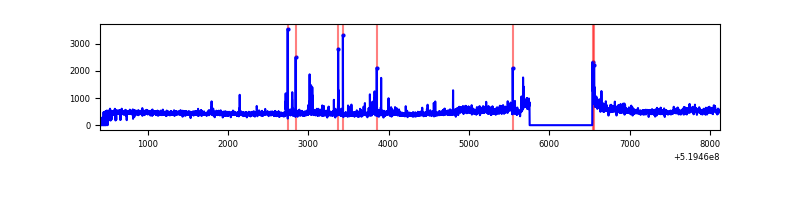

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7708 | 6894 | 8 | 8 | 0.10% | 0.12% |  |
| B | 7715 | 6896 | 64 | 64 | 0.83% | 0.93% |  |
| C | 7709 | 6876 | 252 | 252 | 3.27% | 3.66% |  |
| D | 7712 | 6896 | 1685 | 1685 | 21.85% | 24.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 281082 | 1492.89 | 762 | 741 | 187.8 |
| A | 13 | 248 | 38202 | 199.49 | 762 | 741 | 187.8 |
| A | 3 | 245 | 32324 | 168.19 | 762 | 741 | 187.8 |
| B | 10 | 128 | 413145 | 2545.79 | 749 | 720 | 162.0 |
| B | 5 | 185 | 262744 | 1617.4 | 749 | 720 | 162.0 |
| B | 4 | 171 | 90624 | 554.95 | 749 | 720 | 162.0 |
| C | 15 | 201 | 987175 | 4998.76 | 723 | 717 | 197.3 |
| C | 13 | 3 | 158757 | 800.85 | 723 | 717 | 197.3 |
| C | 14 | 254 | 88451 | 444.58 | 723 | 717 | 197.3 |
| D | 12 | 110 | 4996183 | 25308.95 | 698 | 666 | 197.4 |
| D | 8 | 160 | 320567 | 1620.72 | 698 | 666 | 197.4 |
| D | 2 | 66 | 311166 | 1573.1 | 698 | 666 | 197.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

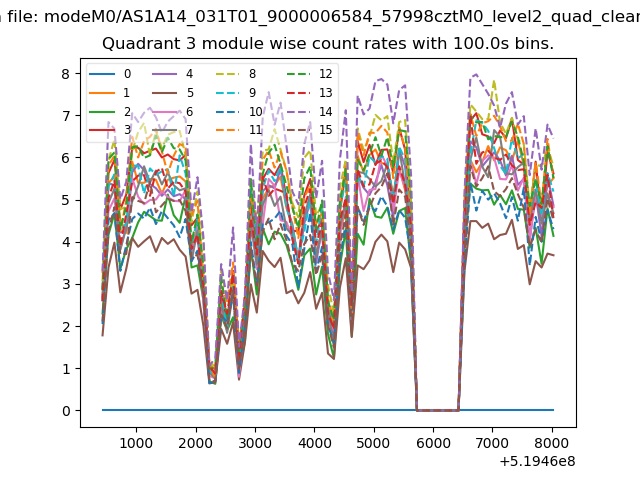

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

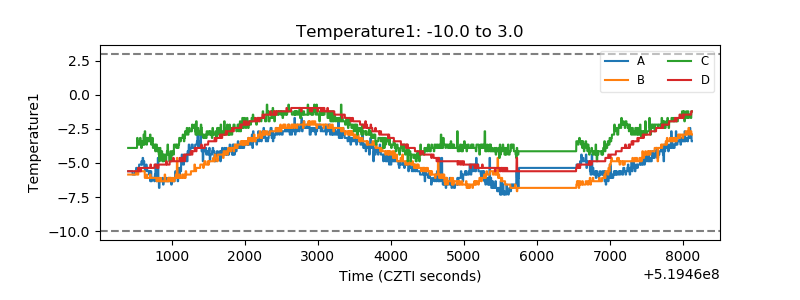

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

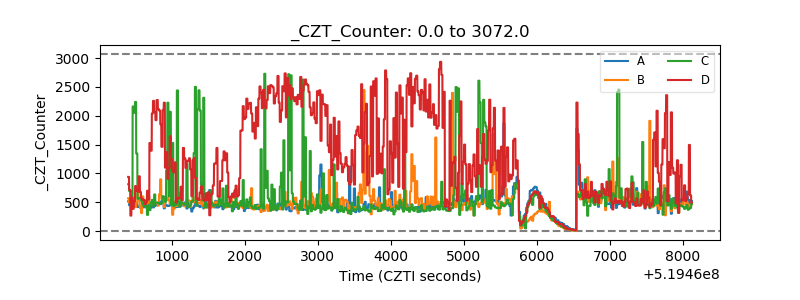

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

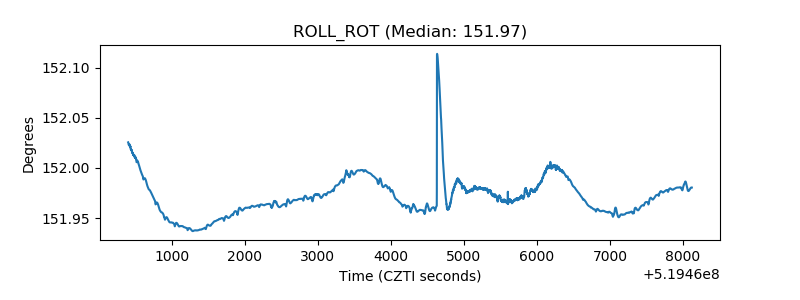

| _ROLL_ROT |  |

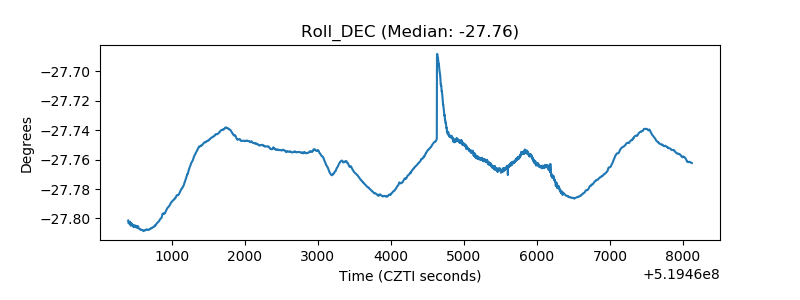

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
