| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_58071cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_58071cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,061,288,640 | 135,348,480 |
| Size | 1012.1 MB | 129.1 MB |
| Events in quadrant A | 4,886,309 | 965,523 |
| Events in quadrant B | 9,874,564 | 977,979 |
| Events in quadrant C | 7,096,051 | 878,400 |
| Events in quadrant D | 16,629,477 | 559,344 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22162 | 2 |
| B | 0 | 36611 | 2 |
| C | 0 | 28178 | 2 |
| D | 0 | 56570 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 212 | 0 |
| B | 0 | 212 | 0 |
| C | 0 | 212 | 0 |
| D | 0 | 212 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10335 | 225 | 2.177068% |
| B | 10336 | 976 | 9.442724% |
| C | 10336 | 675 | 6.530573% |
| D | 10336 | 4143 | 40.083204% |

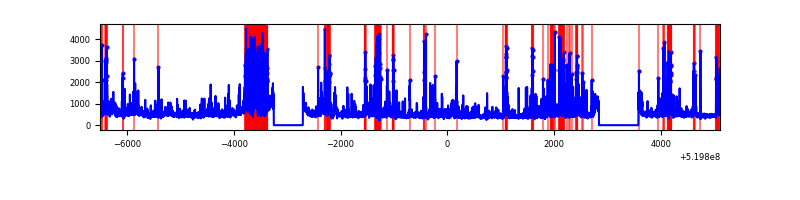

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11620 | 10337 | 59 | 59 | 0.51% | 0.57% |  |
| B | 11621 | 10338 | 601 | 601 | 5.17% | 5.81% |  |
| C | 11621 | 10338 | 411 | 411 | 3.54% | 3.98% |  |
| D | 11621 | 10338 | 3655 | 3655 | 31.45% | 35.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 383731 | 1371.89 | 1143 | 1111 | 278.9 |
| A | 3 | 245 | 46316 | 162.08 | 1143 | 1111 | 278.9 |
| A | 4 | 3 | 17385 | 58.35 | 1143 | 1111 | 278.9 |
| B | 10 | 128 | 4836382 | 20476.83 | 1105 | 1061 | 236.1 |
| B | 5 | 172 | 196398 | 827.22 | 1105 | 1061 | 236.1 |
| B | 0 | 186 | 78139 | 326.41 | 1105 | 1061 | 236.1 |
| C | 12 | 254 | 1270087 | 4272.95 | 1091 | 1080 | 297.0 |
| C | 12 | 252 | 751043 | 2525.24 | 1091 | 1080 | 297.0 |
| C | 9 | 38 | 467066 | 1569.05 | 1091 | 1080 | 297.0 |
| D | 12 | 110 | 7504070 | 28477.01 | 937 | 895 | 263.5 |
| D | 12 | 1 | 2190925 | 8311.88 | 937 | 895 | 263.5 |
| D | 2 | 120 | 952331 | 3611.01 | 937 | 895 | 263.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

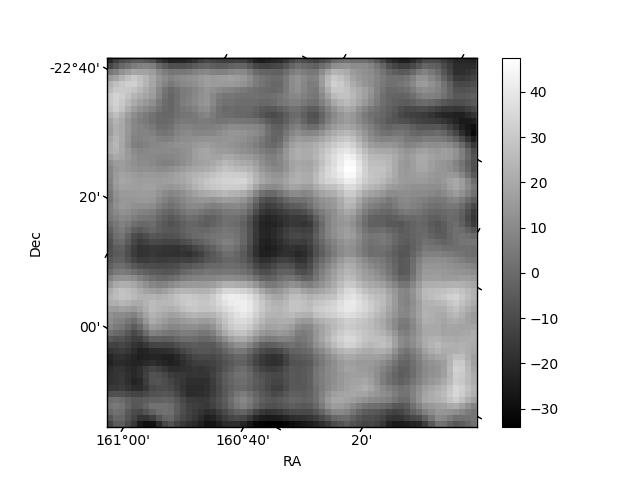

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

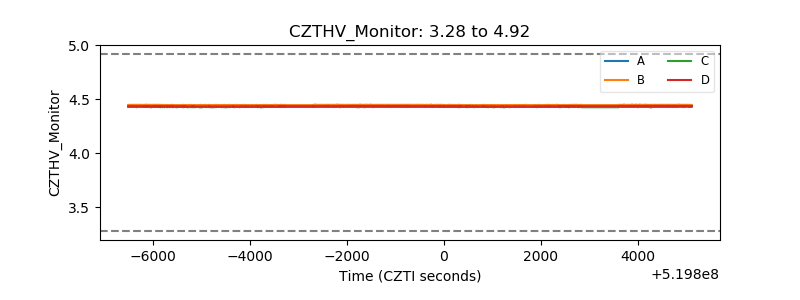

| CZT HV Monitor |  |

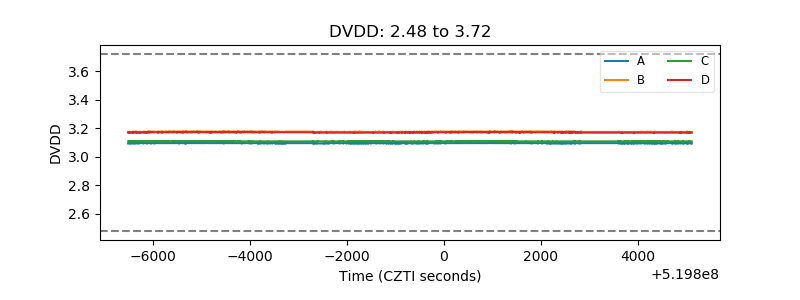

| D_VDD |  |

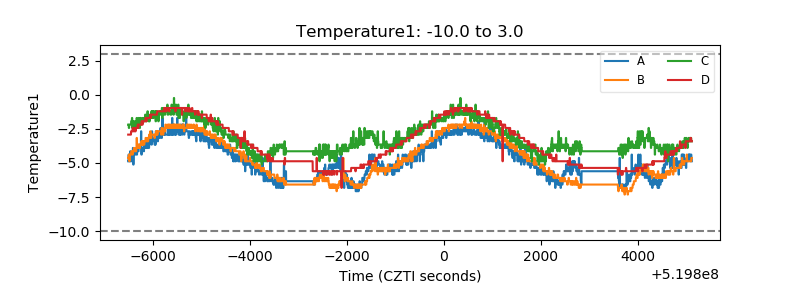

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

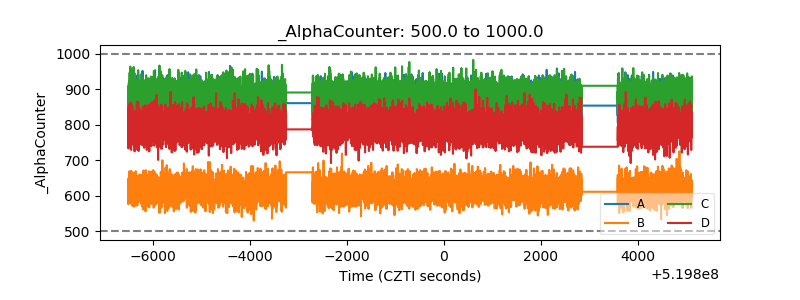

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

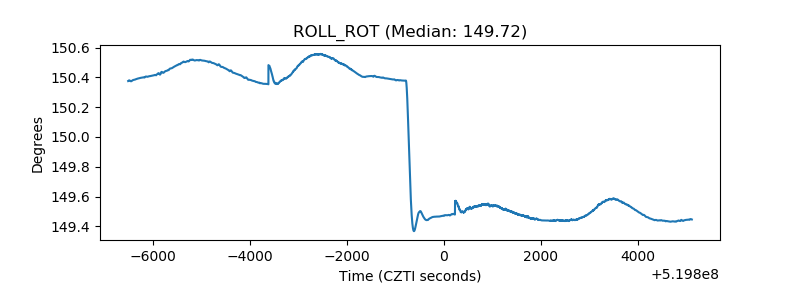

| _ROLL_ROT |  |

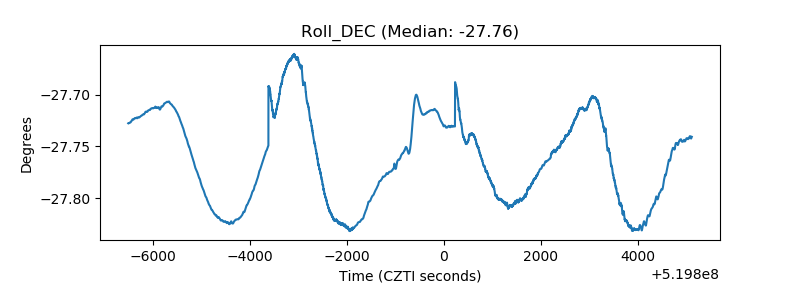

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
