| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_58072cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_58072cztM0_level2_quad_clean.evt |
| Size (bytes) | 707,662,080 | 93,594,240 |
| Size | 674.9 MB | 89.3 MB |
| Events in quadrant A | 3,580,436 | 657,595 |
| Events in quadrant B | 6,194,065 | 690,857 |
| Events in quadrant C | 4,044,683 | 627,088 |
| Events in quadrant D | 11,838,628 | 374,868 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15642 | 2 |
| B | 0 | 23356 | 2 |
| C | 0 | 16783 | 2 |
| D | 0 | 40003 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6940 | 228 | 3.285303% |
| B | 6940 | 451 | 6.498559% |
| C | 6940 | 258 | 3.717579% |
| D | 6939 | 2998 | 43.205073% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7835 | 6941 | 87 | 87 | 1.11% | 1.25% |  |
| B | 7835 | 6940 | 264 | 264 | 3.37% | 3.80% |  |
| C | 7835 | 6940 | 138 | 138 | 1.76% | 1.99% |  |
| D | 7834 | 6940 | 2624 | 2624 | 33.50% | 37.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 477695 | 2511.22 | 777 | 755 | 189.9 |
| A | 3 | 245 | 30872 | 158.57 | 777 | 755 | 189.9 |
| A | 3 | 61 | 28339 | 145.24 | 777 | 755 | 189.9 |
| B | 10 | 128 | 2890350 | 17810.47 | 756 | 728 | 162.2 |
| B | 5 | 172 | 80717 | 493.02 | 756 | 728 | 162.2 |
| B | 4 | 201 | 40997 | 248.2 | 756 | 728 | 162.2 |
| C | 12 | 252 | 686458 | 3360.87 | 751 | 743 | 204.0 |
| C | 12 | 254 | 134456 | 655.36 | 751 | 743 | 204.0 |
| C | 15 | 201 | 93114 | 452.73 | 751 | 743 | 204.0 |
| D | 12 | 110 | 6525862 | 36028.55 | 637 | 609 | 181.1 |
| D | 12 | 1 | 1268656 | 7001.4 | 637 | 609 | 181.1 |
| D | 2 | 249 | 616796 | 3402.21 | 637 | 609 | 181.1 |

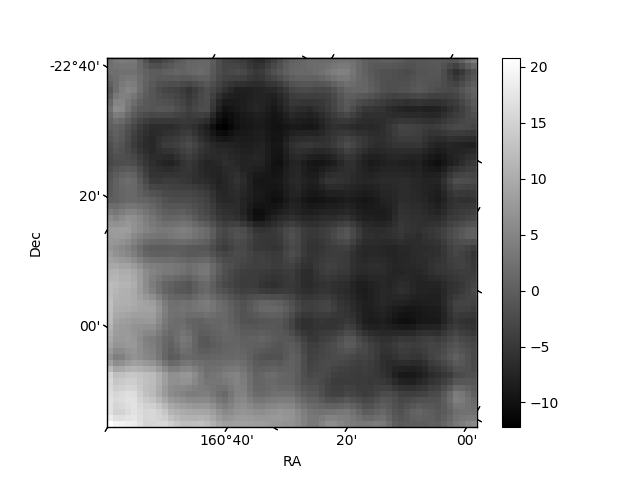

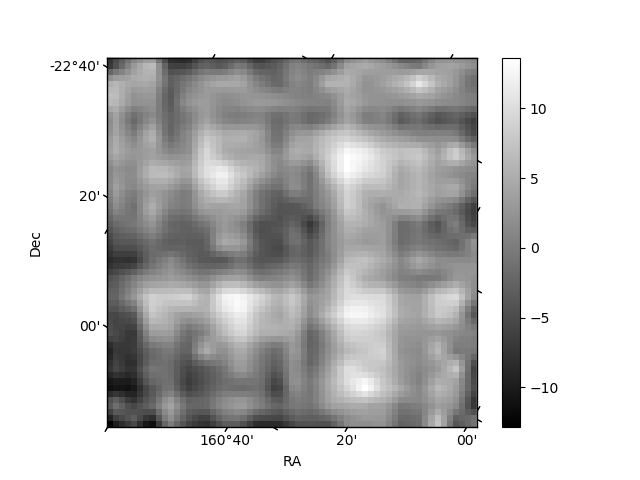

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

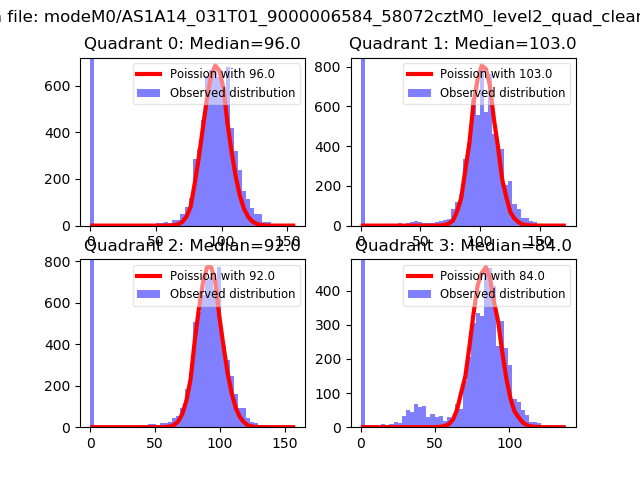

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

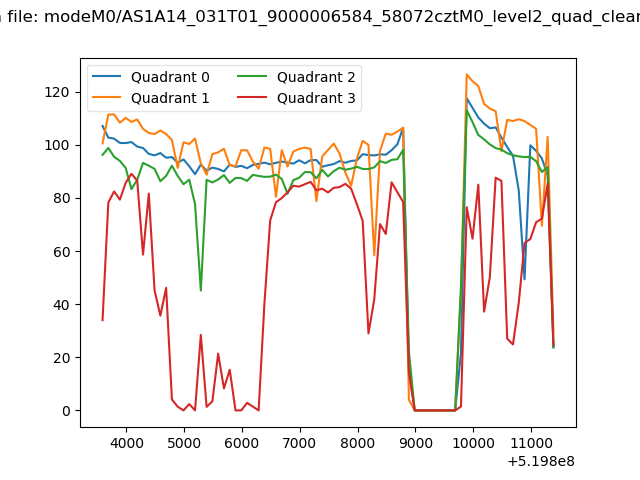

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

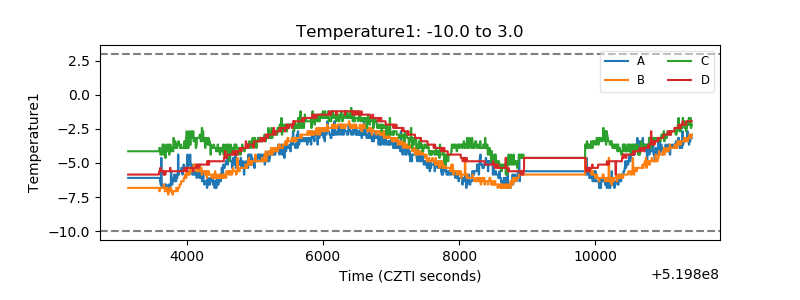

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

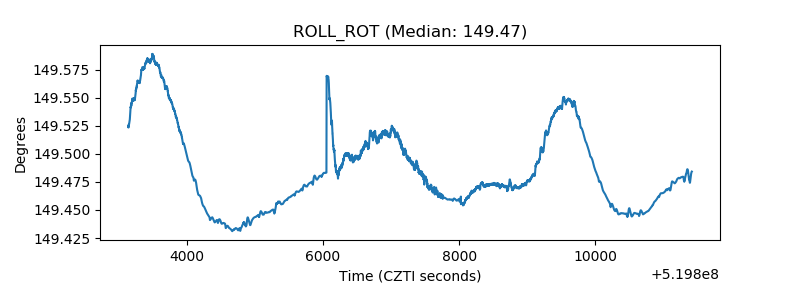

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
