| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_58074cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_58074cztM0_level2_quad_clean.evt |
| Size (bytes) | 669,188,160 | 82,313,280 |
| Size | 638.2 MB | 78.5 MB |
| Events in quadrant A | 4,003,151 | 585,515 |
| Events in quadrant B | 4,403,470 | 639,233 |
| Events in quadrant C | 3,674,237 | 561,299 |
| Events in quadrant D | 12,216,649 | 279,111 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15988 | 1 |
| B | 0 | 17166 | 1 |
| C | 0 | 15289 | 1 |
| D | 0 | 40476 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6109 | 324 | 5.303650% |
| B | 6109 | 196 | 3.208381% |
| C | 6110 | 238 | 3.895254% |
| D | 6109 | 3296 | 53.953184% |

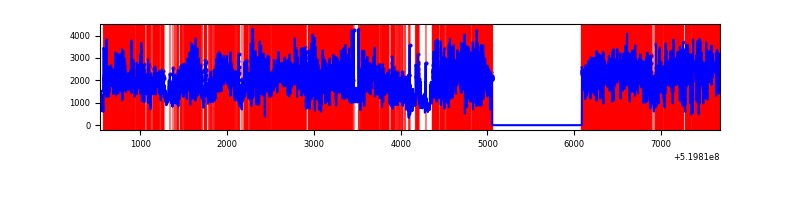

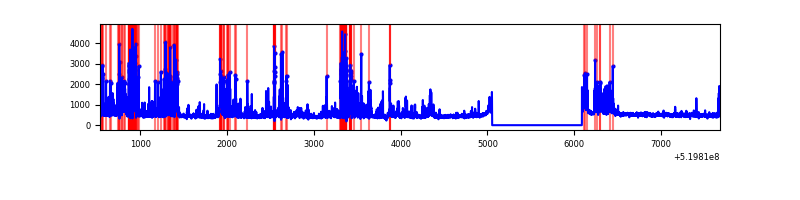

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7144 | 6110 | 194 | 194 | 2.72% | 3.18% |  |
| B | 7144 | 6110 | 90 | 90 | 1.26% | 1.47% |  |
| C | 7145 | 6110 | 182 | 182 | 2.55% | 2.98% |  |
| D | 7144 | 6109 | 3130 | 3130 | 43.81% | 51.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1194308 | 7134.34 | 679 | 660 | 167.3 |
| A | 13 | 248 | 56839 | 335.78 | 679 | 660 | 167.3 |
| A | 3 | 14 | 47705 | 281.18 | 679 | 660 | 167.3 |
| B | 10 | 128 | 1532291 | 10607.29 | 671 | 646 | 144.4 |
| B | 4 | 171 | 34181 | 232.24 | 671 | 646 | 144.4 |
| B | 6 | 51 | 29171 | 197.55 | 671 | 646 | 144.4 |
| C | 12 | 252 | 654589 | 3646.33 | 656 | 650 | 179.3 |
| C | 12 | 254 | 291565 | 1622.13 | 656 | 650 | 179.3 |
| C | 12 | 249 | 56013 | 308.7 | 656 | 650 | 179.3 |
| D | 12 | 110 | 6828129 | 45468.95 | 528 | 505 | 150.2 |
| D | 8 | 160 | 1480204 | 9854.14 | 528 | 505 | 150.2 |
| D | 12 | 1 | 849393 | 5653.22 | 528 | 505 | 150.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

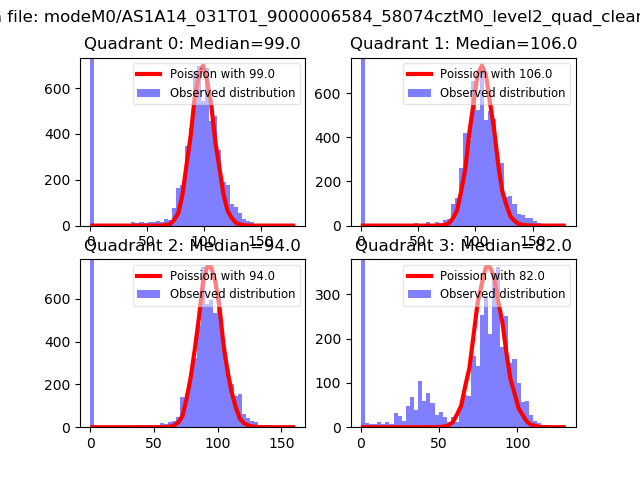

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

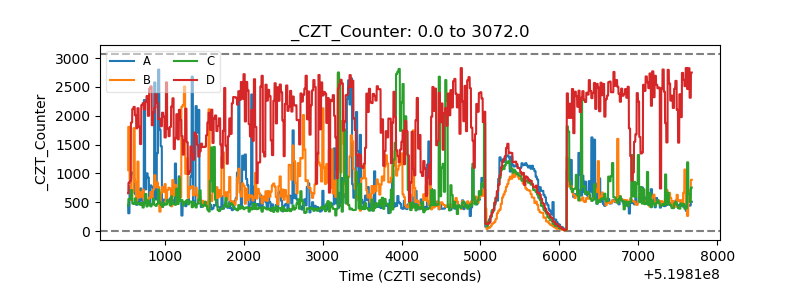

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

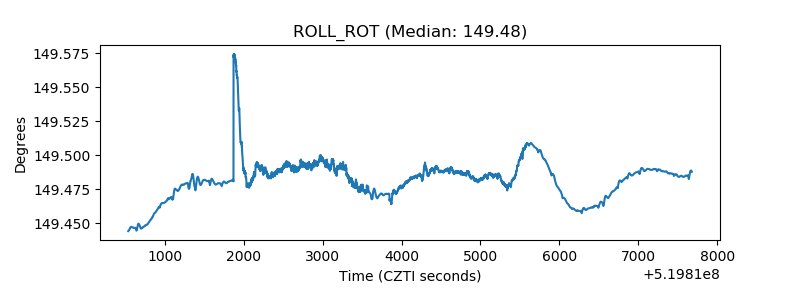

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

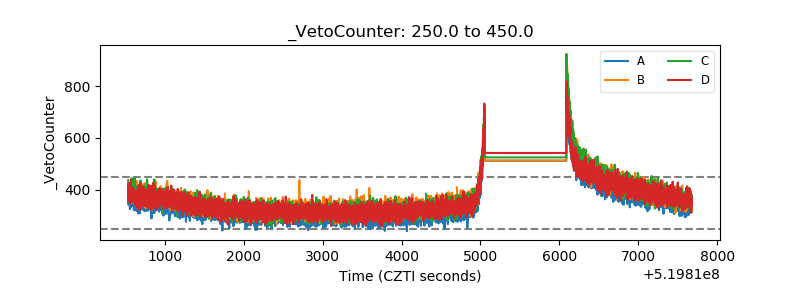

| Veto Counter |  |
