| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_58076cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_58076cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,364,800 | 86,826,240 |
| Size | 675.5 MB | 82.8 MB |
| Events in quadrant A | 3,283,923 | 654,195 |
| Events in quadrant B | 6,405,027 | 640,269 |
| Events in quadrant C | 3,306,228 | 619,756 |
| Events in quadrant D | 12,733,606 | 271,308 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14061 | 1 |
| B | 0 | 23344 | 1 |
| C | 0 | 14275 | 1 |
| D | 0 | 42201 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6350 | 145 | 2.283465% |
| B | 6351 | 856 | 13.478192% |
| C | 6351 | 114 | 1.794993% |
| D | 6351 | 3701 | 58.274288% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7535 | 6351 | 52 | 52 | 0.69% | 0.82% |  |
| B | 7536 | 6352 | 642 | 642 | 8.52% | 10.11% |  |
| C | 7536 | 6352 | 59 | 59 | 0.78% | 0.93% |  |
| D | 7536 | 6352 | 3372 | 3372 | 44.75% | 53.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 255191 | 1407.96 | 733 | 715 | 180.7 |
| A | 13 | 248 | 53008 | 289.33 | 733 | 715 | 180.7 |
| A | 3 | 245 | 47933 | 261.25 | 733 | 715 | 180.7 |
| B | 10 | 128 | 2888810 | 19511.52 | 691 | 666 | 148.0 |
| B | 2 | 249 | 400592 | 2701.79 | 691 | 666 | 148.0 |
| B | 0 | 153 | 82524 | 553.01 | 691 | 666 | 148.0 |
| C | 12 | 252 | 232953 | 1200.08 | 702 | 694 | 193.5 |
| C | 12 | 250 | 91452 | 468.95 | 702 | 694 | 193.5 |
| C | 14 | 254 | 83150 | 426.05 | 702 | 694 | 193.5 |
| D | 12 | 110 | 8592614 | 58128.29 | 520 | 496 | 147.8 |
| D | 12 | 1 | 893604 | 6042.15 | 520 | 496 | 147.8 |
| D | 8 | 160 | 438546 | 2963.54 | 520 | 496 | 147.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

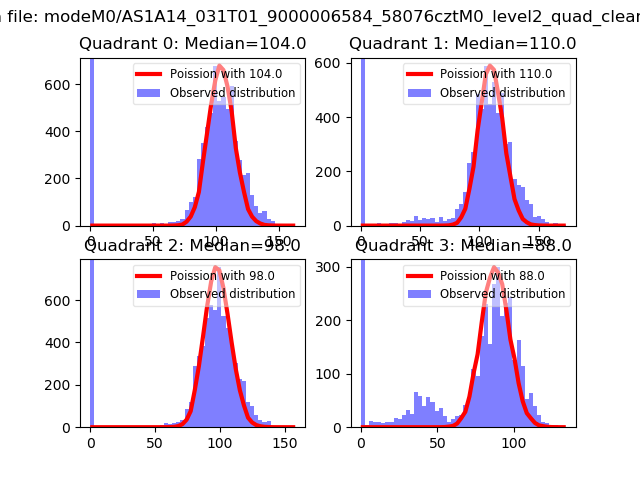

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

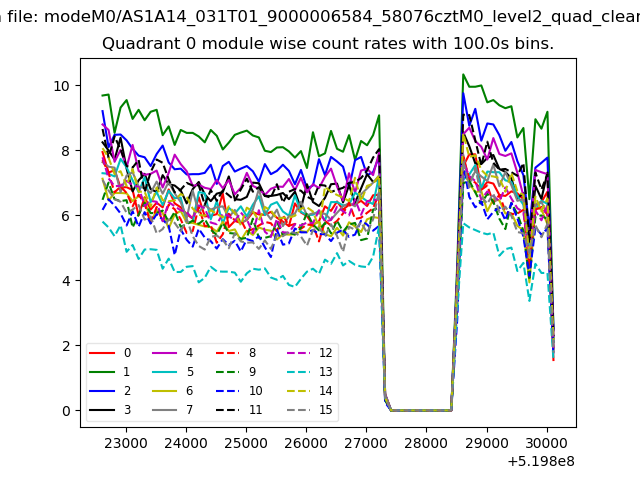

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

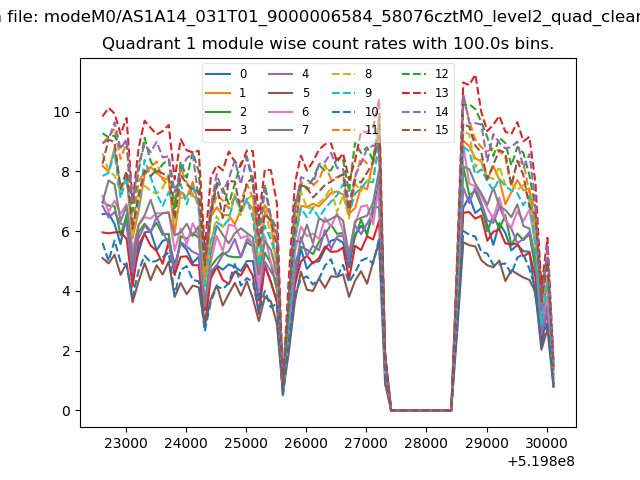

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

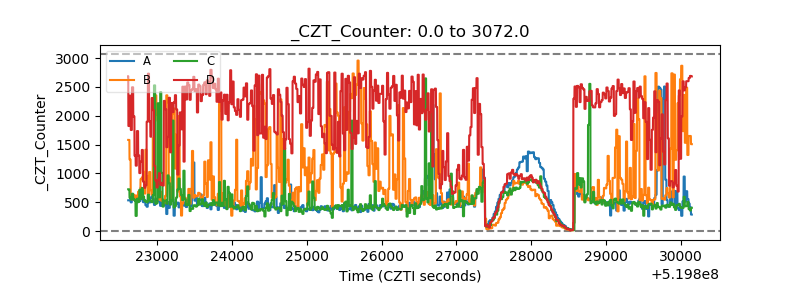

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

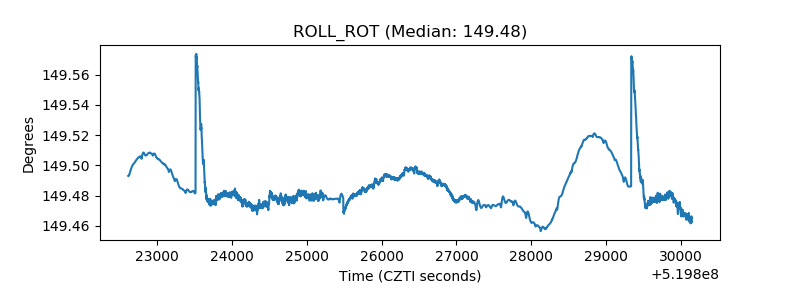

| _ROLL_ROT |  |

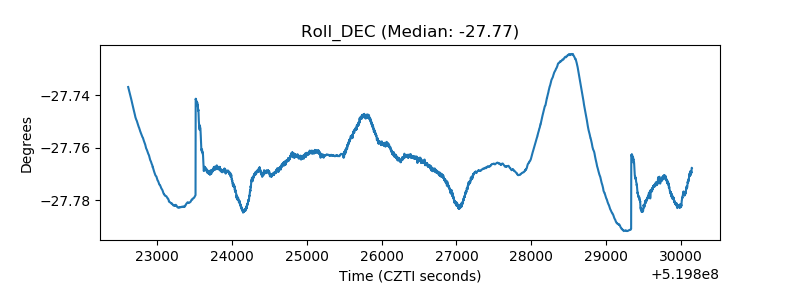

| _Roll_DEC |  |

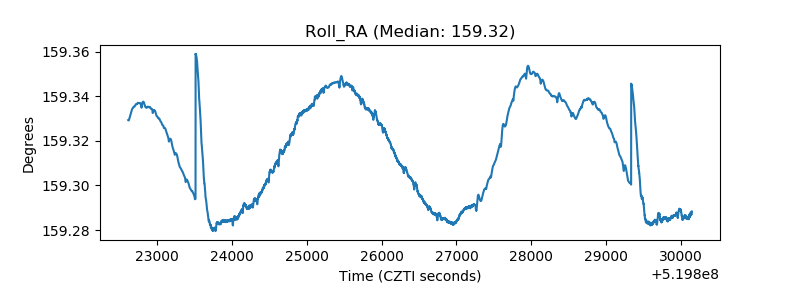

| _Roll_RA |  |
| Veto Counter |  |
