| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_58077cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_58077cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,574,080 | 80,271,360 |
| Size | 552.7 MB | 76.6 MB |
| Events in quadrant A | 3,068,586 | 578,941 |
| Events in quadrant B | 6,343,912 | 543,663 |
| Events in quadrant C | 3,247,878 | 549,160 |
| Events in quadrant D | 8,344,301 | 354,495 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13276 | 1 |
| B | 0 | 22835 | 1 |
| C | 0 | 13632 | 1 |
| D | 0 | 28776 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5788 | 182 | 3.144437% |
| B | 5788 | 1003 | 17.328956% |
| C | 5788 | 143 | 2.470629% |
| D | 5788 | 1964 | 33.932274% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6978 | 5789 | 96 | 96 | 1.38% | 1.66% |  |
| B | 6978 | 5789 | 781 | 781 | 11.19% | 13.49% |  |
| C | 6978 | 5789 | 86 | 86 | 1.23% | 1.49% |  |
| D | 6978 | 5788 | 1820 | 1820 | 26.08% | 31.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 484163 | 3000.09 | 650 | 635 | 161.2 |
| A | 13 | 248 | 16766 | 100.09 | 650 | 635 | 161.2 |
| A | 7 | 206 | 13884 | 82.2 | 650 | 635 | 161.2 |
| B | 10 | 128 | 3372752 | 25622.13 | 607 | 584 | 131.6 |
| B | 2 | 249 | 294071 | 2229.95 | 607 | 584 | 131.6 |
| B | 10 | 247 | 46914 | 352.02 | 607 | 584 | 131.6 |
| C | 12 | 252 | 433128 | 2526.48 | 622 | 616 | 171.2 |
| C | 9 | 38 | 215714 | 1256.48 | 622 | 616 | 171.2 |
| C | 14 | 254 | 52262 | 301.69 | 622 | 616 | 171.2 |
| D | 12 | 110 | 4417118 | 30827.58 | 499 | 478 | 143.3 |
| D | 8 | 160 | 1400475 | 9771.8 | 499 | 478 | 143.3 |
| D | 8 | 240 | 132503 | 921.52 | 499 | 478 | 143.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

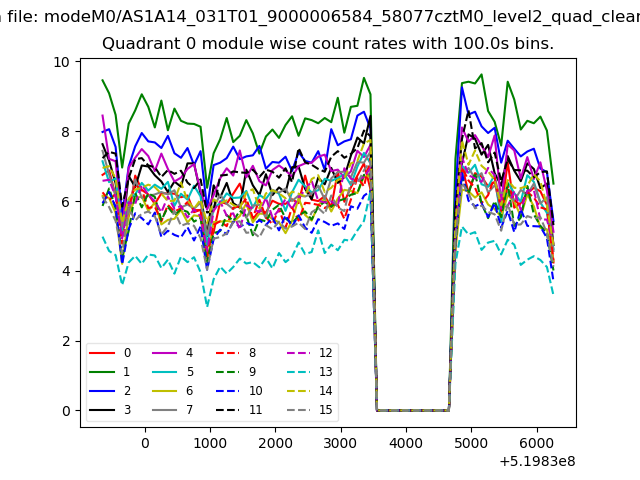

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

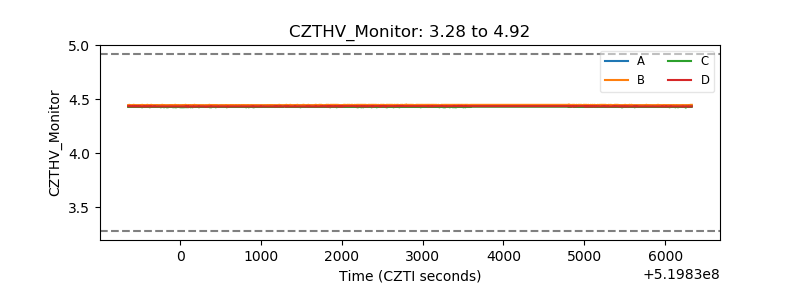

| CZT HV Monitor |  |

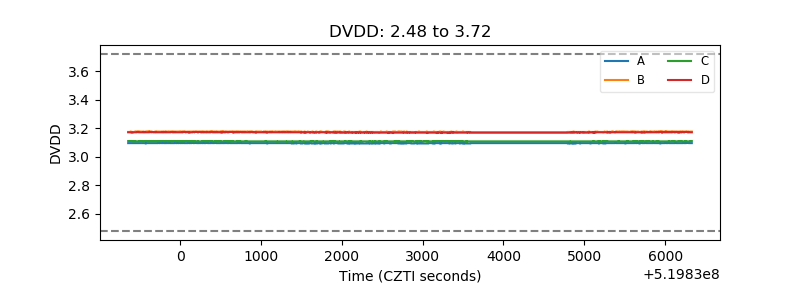

| D_VDD |  |
| Temperature 1 |  |

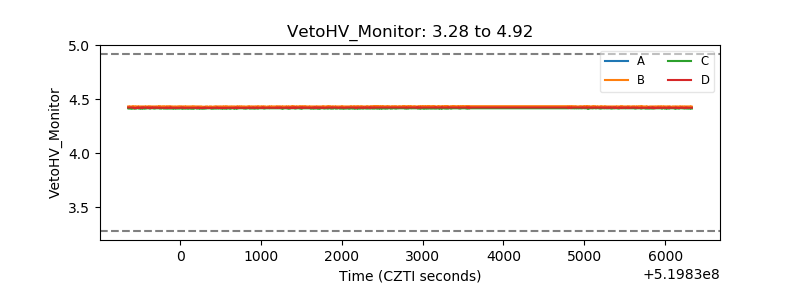

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

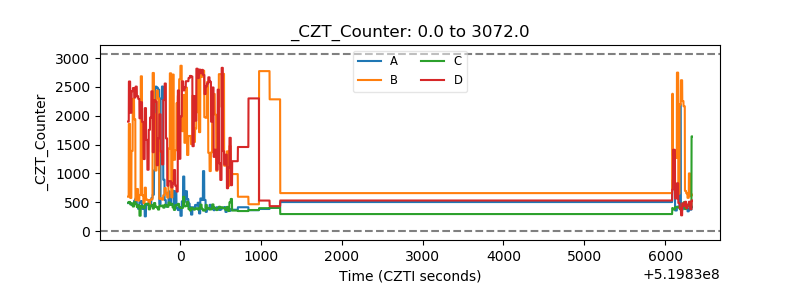

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

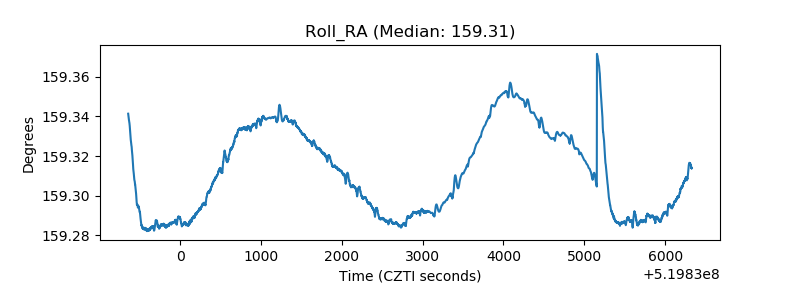

| _Roll_RA |  |

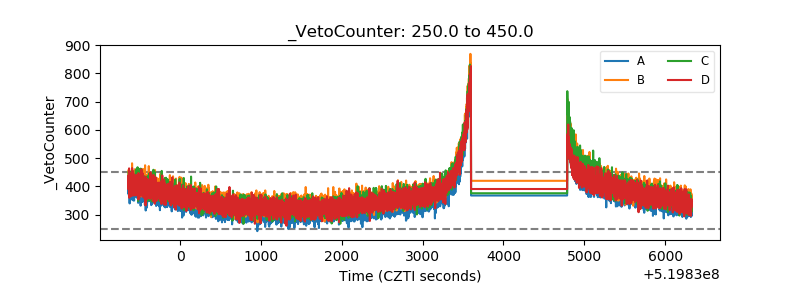

| Veto Counter |  |
