| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_58078cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_58078cztM0_level2_quad_clean.evt |
| Size (bytes) | 426,349,440 | 86,924,160 |
| Size | 406.6 MB | 82.9 MB |
| Events in quadrant A | 2,895,854 | 579,449 |
| Events in quadrant B | 4,847,436 | 598,271 |
| Events in quadrant C | 3,070,626 | 545,495 |
| Events in quadrant D | 4,513,504 | 499,739 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12926 | 1 |
| B | 0 | 18380 | 1 |
| C | 0 | 13391 | 1 |
| D | 0 | 17443 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5850 | 55 | 0.940171% |
| B | 5850 | 324 | 5.538462% |
| C | 5851 | 77 | 1.316014% |
| D | 5851 | 292 | 4.990600% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6985 | 5851 | 38 | 38 | 0.54% | 0.65% |  |
| B | 6985 | 5851 | 243 | 243 | 3.48% | 4.15% |  |
| C | 6986 | 5852 | 63 | 63 | 0.90% | 1.08% |  |
| D | 6986 | 5852 | 249 | 249 | 3.56% | 4.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 311346 | 1928.14 | 645 | 629 | 161.1 |
| A | 13 | 248 | 61774 | 379.43 | 645 | 629 | 161.1 |
| A | 3 | 14 | 19116 | 114.72 | 645 | 629 | 161.1 |
| B | 10 | 128 | 1946638 | 14218.73 | 627 | 604 | 136.9 |
| B | 0 | 153 | 109336 | 794.45 | 627 | 604 | 136.9 |
| B | 2 | 249 | 79960 | 579.82 | 627 | 604 | 136.9 |
| C | 12 | 252 | 204384 | 1196.52 | 618 | 611 | 170.3 |
| C | 15 | 201 | 193373 | 1131.86 | 618 | 611 | 170.3 |
| C | 9 | 38 | 86448 | 504.02 | 618 | 611 | 170.3 |
| D | 12 | 110 | 914874 | 5333.01 | 605 | 579 | 171.4 |
| D | 8 | 160 | 739582 | 4310.54 | 605 | 579 | 171.4 |
| D | 3 | 224 | 214267 | 1246.42 | 605 | 579 | 171.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

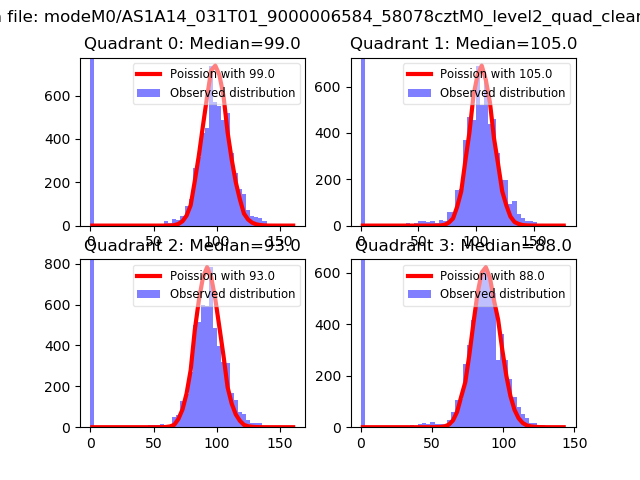

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

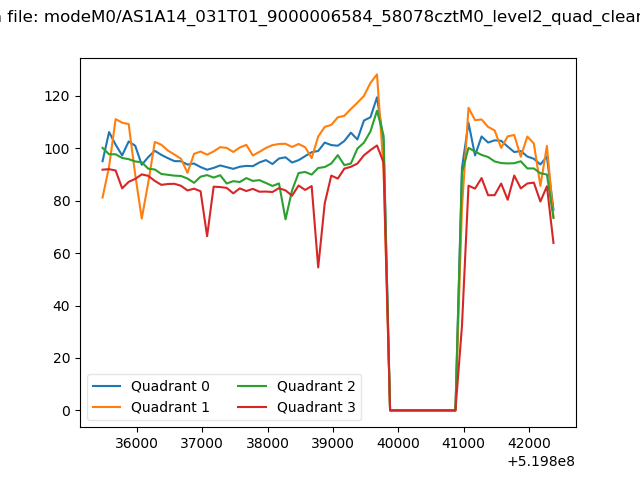

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

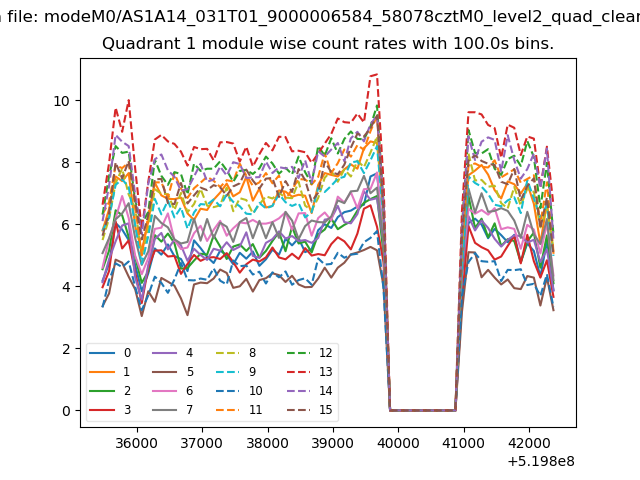

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

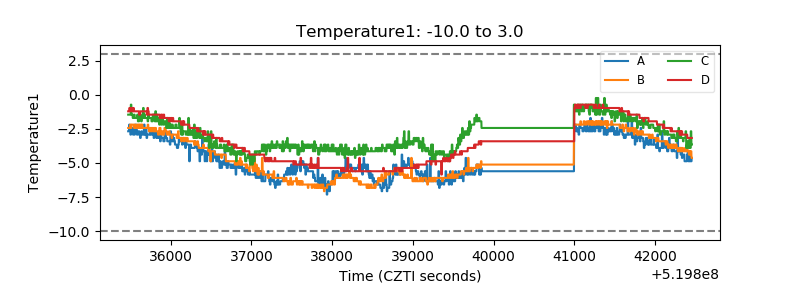

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

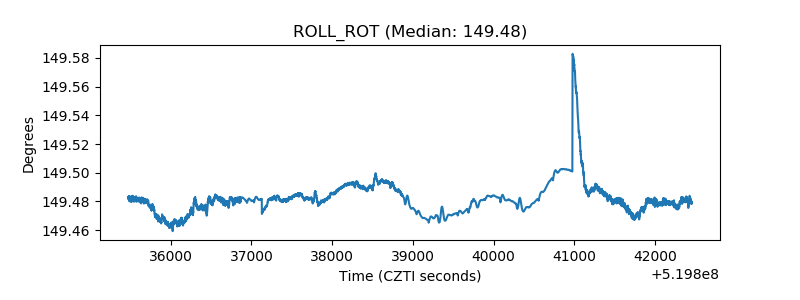

| _ROLL_ROT |  |

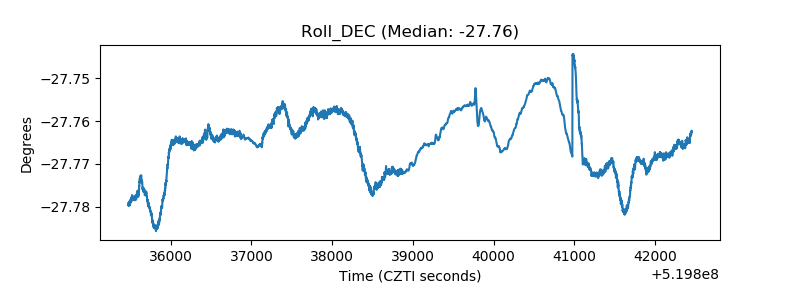

| _Roll_DEC |  |

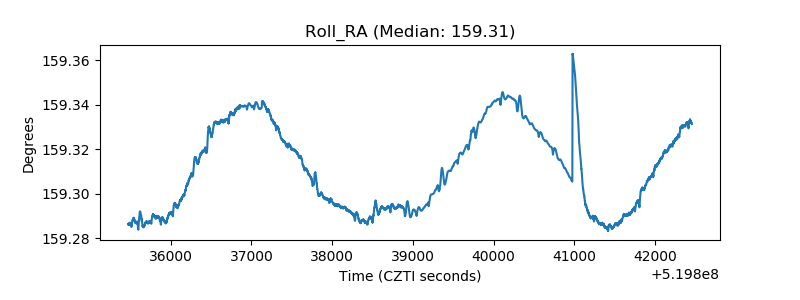

| _Roll_RA |  |
| Veto Counter |  |
