| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_58080cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_58080cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,329,600 | 97,277,760 |
| Size | 539.1 MB | 92.8 MB |
| Events in quadrant A | 3,157,699 | 664,116 |
| Events in quadrant B | 7,453,597 | 604,755 |
| Events in quadrant C | 3,113,767 | 631,397 |
| Events in quadrant D | 6,663,645 | 562,091 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14622 | 1 |
| B | 0 | 26925 | 1 |
| C | 0 | 14543 | 1 |
| D | 0 | 24433 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6935 | 61 | 0.879596% |
| B | 6935 | 1261 | 18.183129% |
| C | 6935 | 24 | 0.346071% |
| D | 6936 | 549 | 7.915225% |

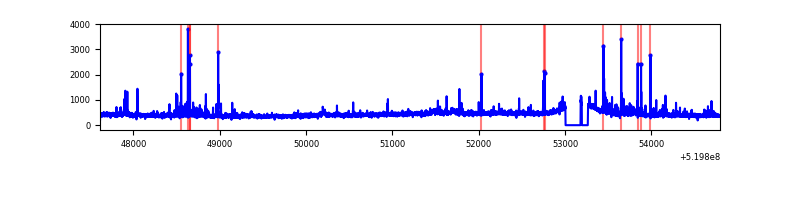

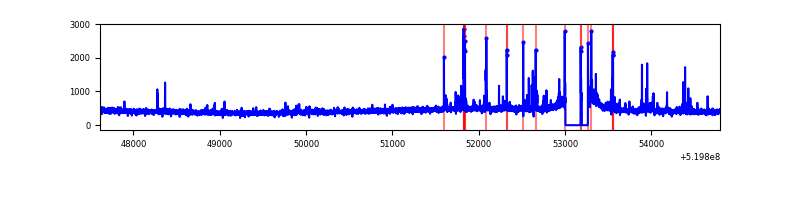

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7180 | 6937 | 20 | 20 | 0.28% | 0.29% |  |
| B | 7180 | 6937 | 1014 | 1014 | 14.12% | 14.62% |  |
| C | 7180 | 6937 | 13 | 13 | 0.18% | 0.19% |  |
| D | 7181 | 6937 | 946 | 946 | 13.17% | 13.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 166199 | 875.49 | 762 | 741 | 189.0 |
| A | 3 | 245 | 12742 | 63.5 | 762 | 741 | 189.0 |
| A | 13 | 254 | 10683 | 52.61 | 762 | 741 | 189.0 |
| B | 10 | 128 | 3997432 | 25862.99 | 713 | 687 | 154.5 |
| B | 4 | 171 | 254342 | 1641.4 | 713 | 687 | 154.5 |
| B | 4 | 201 | 155695 | 1003.06 | 713 | 687 | 154.5 |
| C | 12 | 252 | 113283 | 562.35 | 731 | 725 | 200.2 |
| C | 6 | 223 | 75833 | 375.25 | 731 | 725 | 200.2 |
| C | 11 | 244 | 23478 | 113.68 | 731 | 725 | 200.2 |
| D | 12 | 110 | 2908583 | 14242.28 | 716 | 681 | 204.2 |
| D | 8 | 160 | 288644 | 1410.38 | 716 | 681 | 204.2 |
| D | 12 | 1 | 166172 | 810.54 | 716 | 681 | 204.2 |

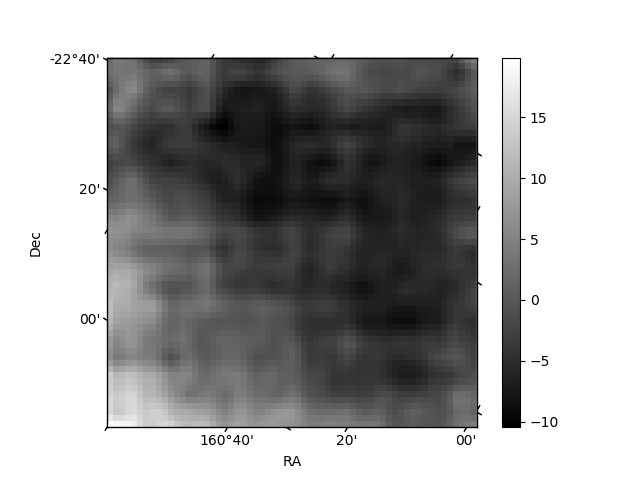

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

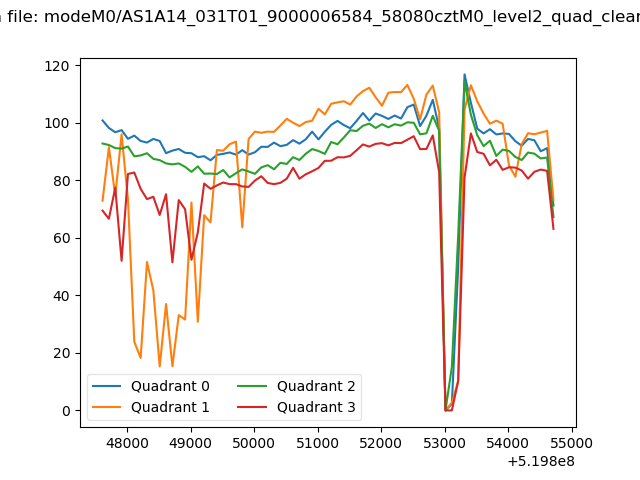

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

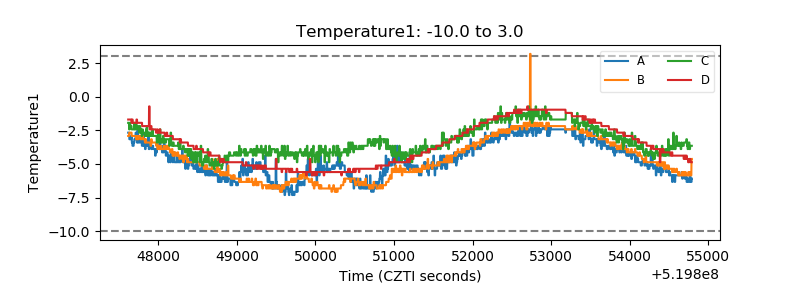

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

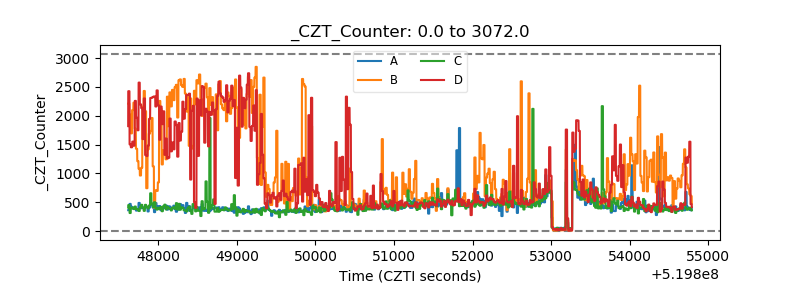

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

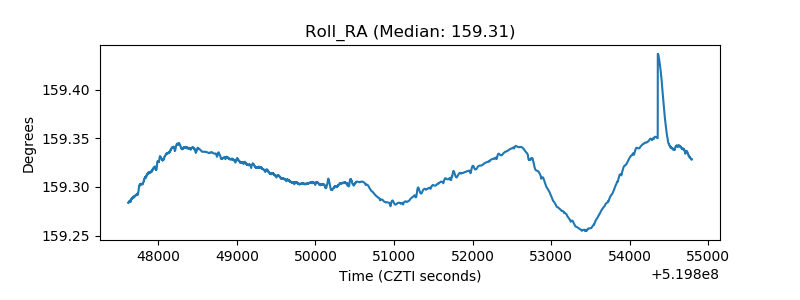

| _Roll_RA |  |

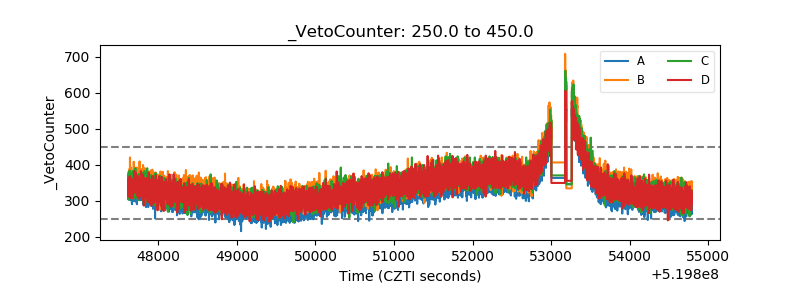

| Veto Counter |  |
