| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_58081cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_58081cztM0_level2_quad_clean.evt |
| Size (bytes) | 602,625,600 | 112,703,040 |
| Size | 574.7 MB | 107.5 MB |
| Events in quadrant A | 3,832,669 | 763,191 |
| Events in quadrant B | 8,678,063 | 706,832 |
| Events in quadrant C | 4,005,673 | 721,579 |
| Events in quadrant D | 5,168,427 | 663,424 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17422 | 1 |
| B | 0 | 31469 | 1 |
| C | 0 | 17812 | 1 |
| D | 0 | 21106 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8019 | 99 | 1.234568% |
| B | 8019 | 1271 | 15.849857% |
| C | 8019 | 111 | 1.384212% |
| D | 8019 | 325 | 4.052874% |

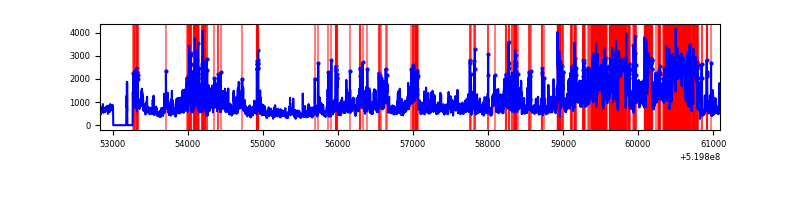

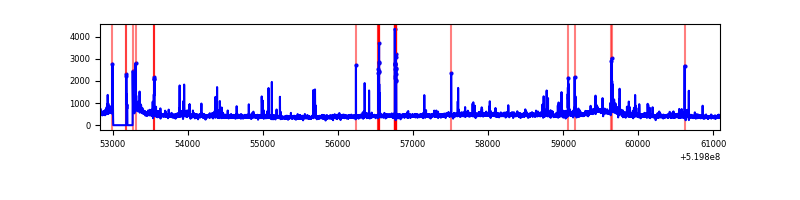

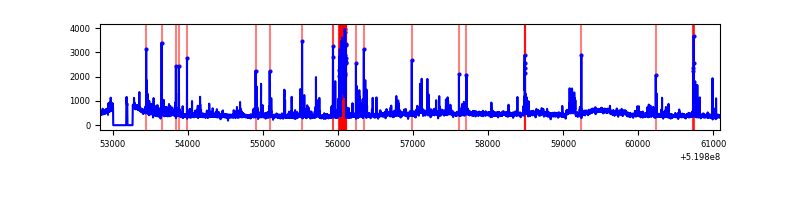

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8264 | 8021 | 38 | 38 | 0.46% | 0.47% |  |
| B | 8264 | 8021 | 894 | 894 | 10.82% | 11.15% |  |
| C | 8264 | 8021 | 92 | 92 | 1.11% | 1.15% |  |
| D | 8264 | 8020 | 260 | 260 | 3.15% | 3.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 319000 | 1444.71 | 892 | 865 | 220.2 |
| A | 3 | 61 | 18862 | 81.73 | 892 | 865 | 220.2 |
| A | 4 | 3 | 13783 | 58.66 | 892 | 865 | 220.2 |
| B | 10 | 128 | 4618256 | 26217.47 | 819 | 788 | 176.1 |
| B | 4 | 171 | 251246 | 1422.07 | 819 | 788 | 176.1 |
| B | 2 | 249 | 169825 | 959.77 | 819 | 788 | 176.1 |
| C | 12 | 254 | 268853 | 1143.21 | 855 | 846 | 234.4 |
| C | 12 | 252 | 142094 | 602.51 | 855 | 846 | 234.4 |
| C | 15 | 201 | 82660 | 348.98 | 855 | 846 | 234.4 |
| D | 12 | 1 | 914285 | 3858.16 | 841 | 802 | 236.8 |
| D | 12 | 110 | 244893 | 1030.94 | 841 | 802 | 236.8 |
| D | 2 | 249 | 194192 | 816.8 | 841 | 802 | 236.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

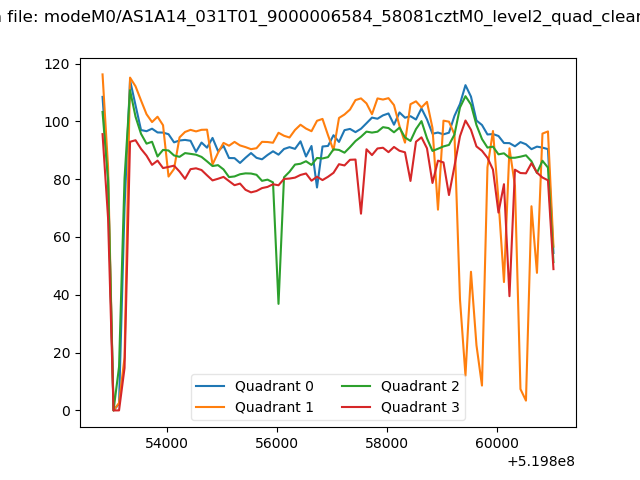

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

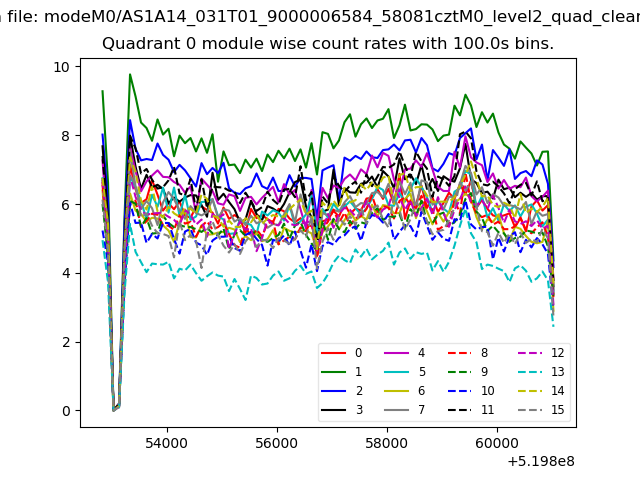

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

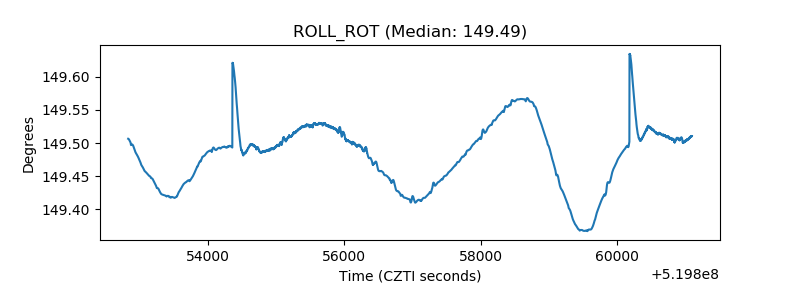

| _ROLL_ROT |  |
| _Roll_DEC |  |

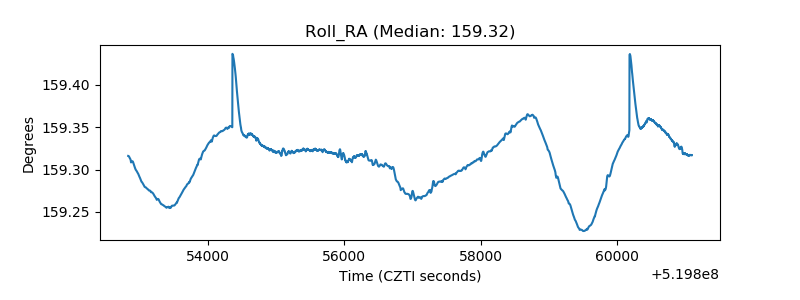

| _Roll_RA |  |
| Veto Counter |  |
