| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_58085cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_58085cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,906,303,680 | 240,238,080 |
| Size | 1.8 GB | 229.1 MB |
| Events in quadrant A | 11,175,146 | 1,677,778 |
| Events in quadrant B | 28,473,336 | 1,282,762 |
| Events in quadrant C | 9,083,487 | 1,661,541 |
| Events in quadrant D | 20,291,766 | 1,276,980 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47913 | 4 |
| B | 0 | 98529 | 3 |
| C | 0 | 42180 | 3 |
| D | 0 | 73830 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 404 | 0 |
| B | 0 | 404 | 0 |
| C | 0 | 404 | 0 |
| D | 0 | 404 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19947 | 1058 | 5.304056% |
| B | 19948 | 6905 | 34.614999% |
| C | 19948 | 320 | 1.604171% |
| D | 19948 | 3412 | 17.104472% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21313 | 20128 | 568 | 568 | 2.67% | 2.82% |  |
| B | 21314 | 20127 | 5140 | 5140 | 24.12% | 25.54% |  |
| C | 21314 | 20130 | 34 | 34 | 0.16% | 0.17% |  |
| D | 21314 | 20127 | 3517 | 3517 | 16.50% | 17.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 2467849 | 4634.37 | 2198 | 2142 | 532.0 |
| A | 3 | 245 | 116727 | 215.37 | 2198 | 2142 | 532.0 |
| A | 13 | 254 | 31517 | 55.21 | 2198 | 2142 | 532.0 |
| B | 10 | 128 | 19796708 | 48525.62 | 1892 | 1816 | 407.9 |
| B | 5 | 172 | 402169 | 981.43 | 1892 | 1816 | 407.9 |
| B | 4 | 201 | 177270 | 430.11 | 1892 | 1816 | 407.9 |
| C | 12 | 254 | 177215 | 299.68 | 2168 | 2151 | 584.2 |
| C | 12 | 252 | 163060 | 275.45 | 2168 | 2151 | 584.2 |
| C | 6 | 223 | 133050 | 224.07 | 2168 | 2151 | 584.2 |
| D | 12 | 110 | 9924741 | 17172.0 | 2067 | 1978 | 577.8 |
| D | 12 | 1 | 1057818 | 1827.2 | 2067 | 1978 | 577.8 |
| D | 8 | 160 | 364538 | 627.43 | 2067 | 1978 | 577.8 |

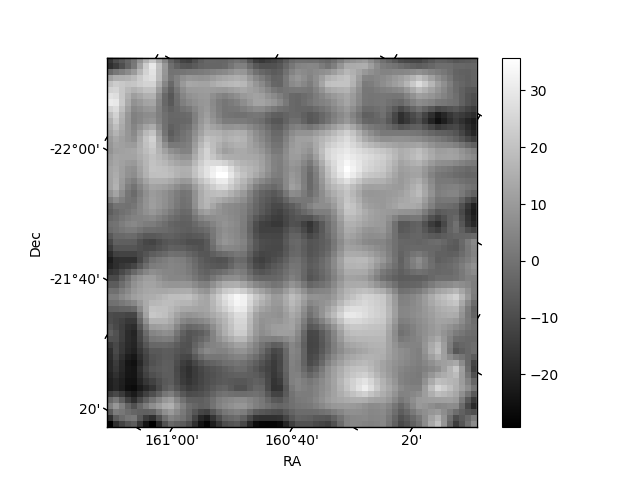

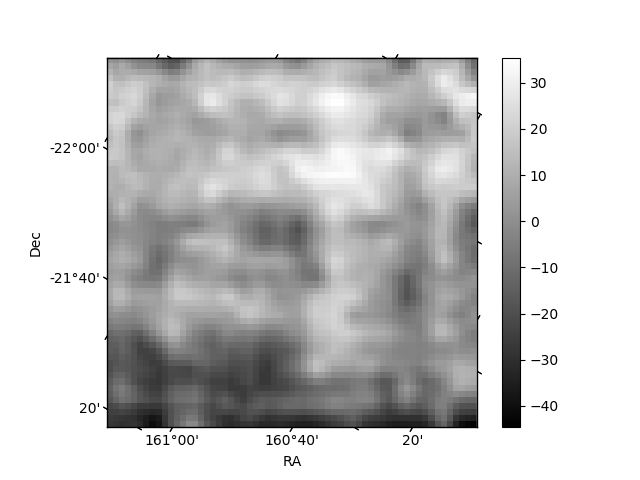

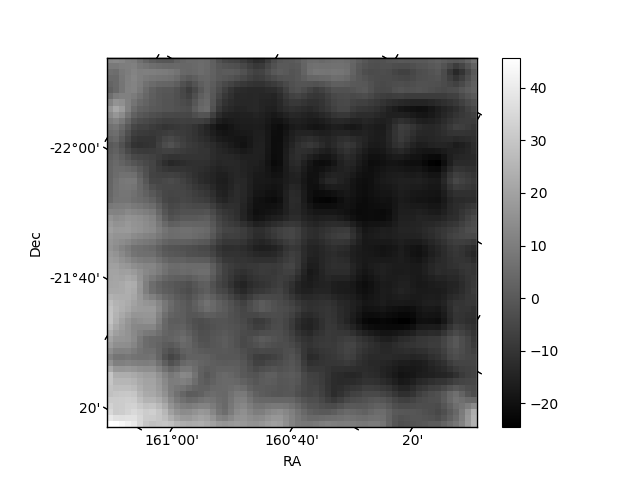

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

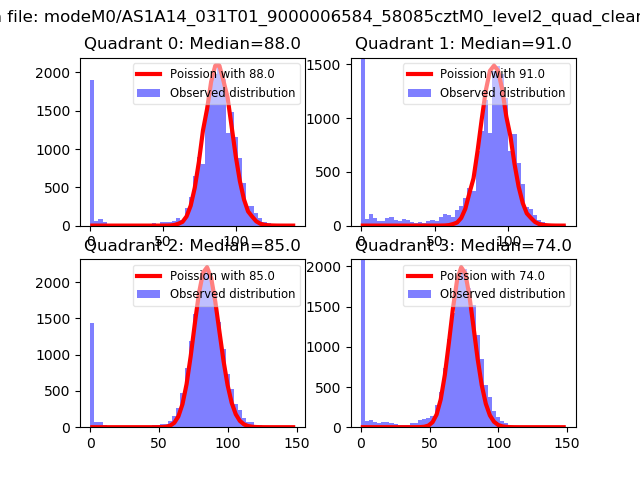

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

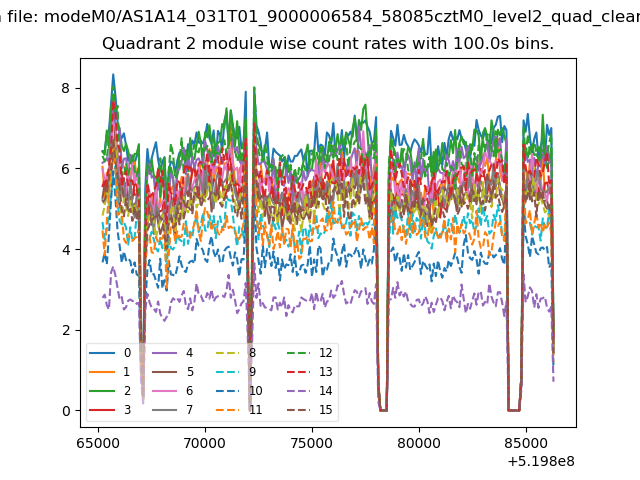

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

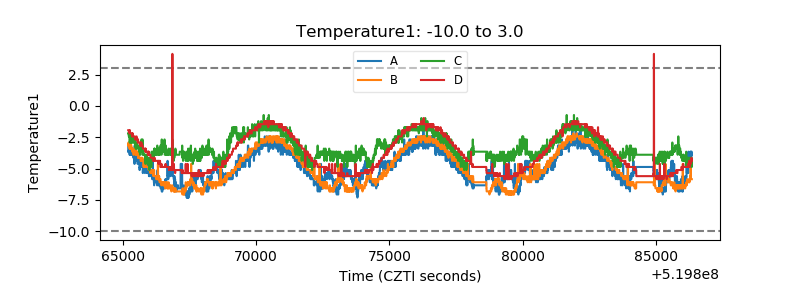

| Temperature 1 |  |
| Veto HV Monitor |  |

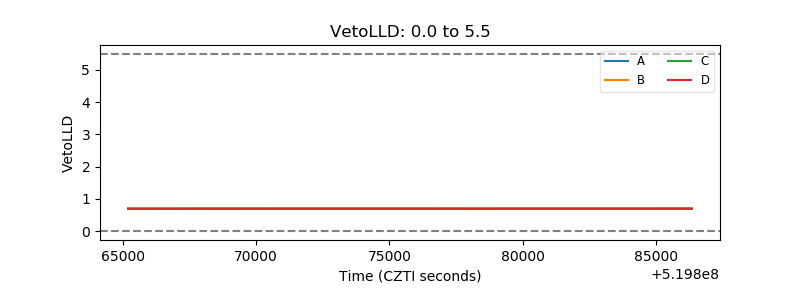

| Veto LLD |  |

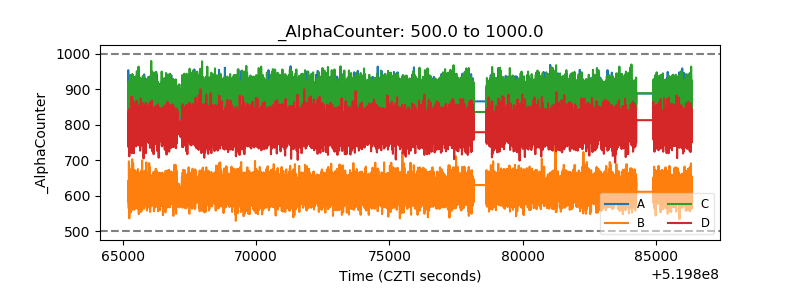

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
