| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58089cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58089cztM0_level2_quad_clean.evt |
| Size (bytes) | 537,966,720 | 94,760,640 |
| Size | 513.0 MB | 90.4 MB |
| Events in quadrant A | 3,001,194 | 668,533 |
| Events in quadrant B | 7,905,562 | 567,811 |
| Events in quadrant C | 3,258,739 | 630,179 |
| Events in quadrant D | 5,242,159 | 548,386 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13431 | 2 |
| B | 0 | 28013 | 2 |
| C | 0 | 14298 | 2 |
| D | 0 | 19931 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6517 | 74 | 1.135492% |
| B | 6517 | 1559 | 23.922050% |
| C | 6517 | 92 | 1.411692% |
| D | 6516 | 553 | 8.486802% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7617 | 6517 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7617 | 6517 | 913 | 913 | 11.99% | 14.01% |  |
| C | 7617 | 6517 | 18 | 18 | 0.24% | 0.28% |  |
| D | 7616 | 6516 | 392 | 392 | 5.15% | 6.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 19755 | 101.36 | 762 | 743 | 187.6 |
| A | 3 | 61 | 18524 | 94.8 | 762 | 743 | 187.6 |
| A | 10 | 251 | 15970 | 81.18 | 762 | 743 | 187.6 |
| B | 10 | 128 | 4308561 | 29502.73 | 687 | 662 | 146.0 |
| B | 5 | 172 | 521160 | 3564.64 | 687 | 662 | 146.0 |
| B | 0 | 63 | 116533 | 793.54 | 687 | 662 | 146.0 |
| C | 15 | 208 | 100093 | 501.38 | 732 | 726 | 198.2 |
| C | 12 | 252 | 97919 | 490.42 | 732 | 726 | 198.2 |
| C | 15 | 201 | 86157 | 431.07 | 732 | 726 | 198.2 |
| D | 12 | 110 | 1338960 | 6650.54 | 715 | 685 | 201.2 |
| D | 8 | 160 | 461580 | 2290.41 | 715 | 685 | 201.2 |
| D | 12 | 1 | 123655 | 611.1 | 715 | 685 | 201.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

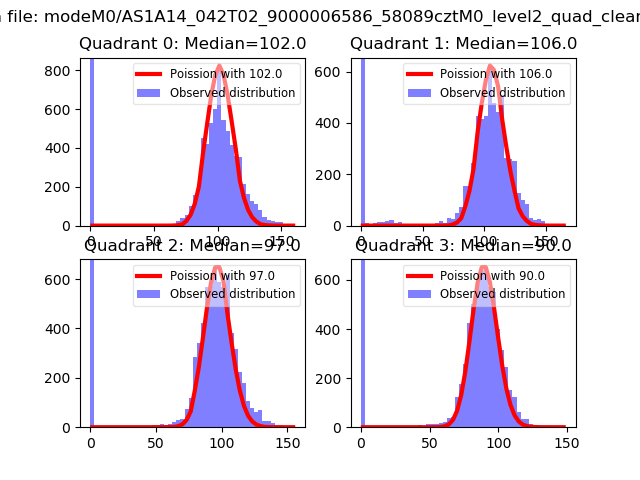

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

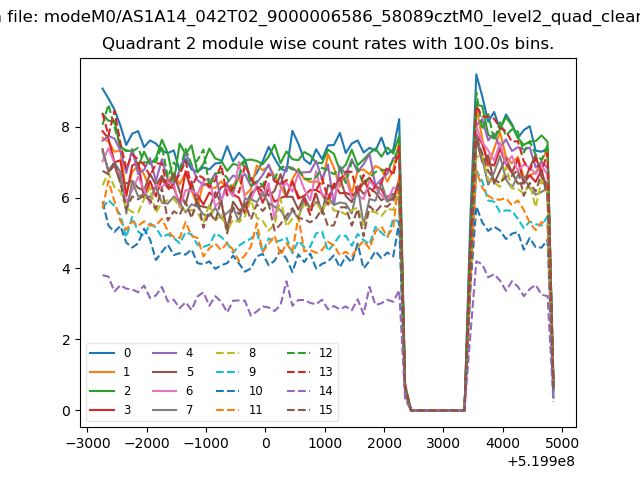

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

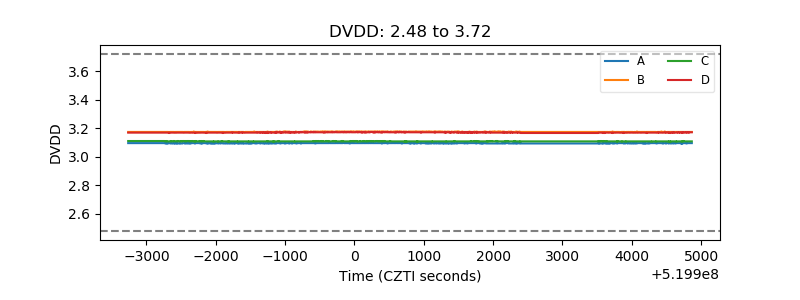

| D_VDD |  |

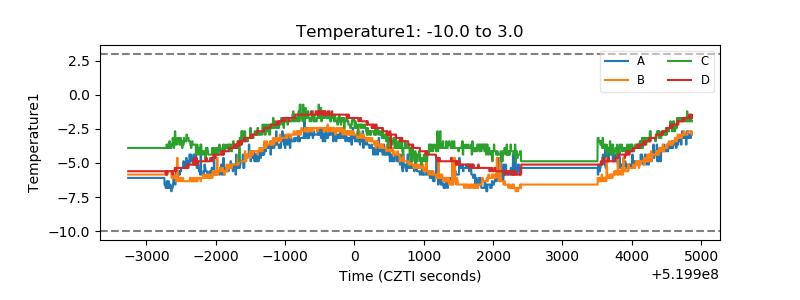

| Temperature 1 |  |
| Veto HV Monitor |  |

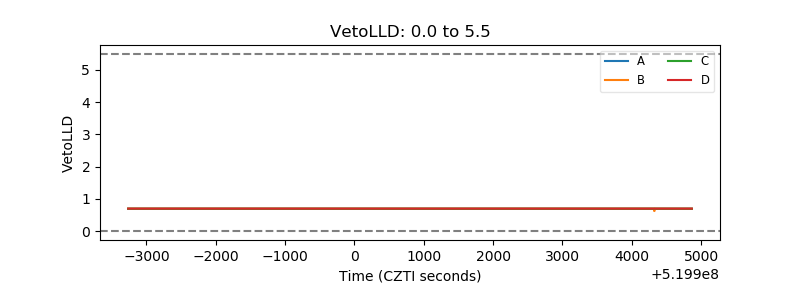

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

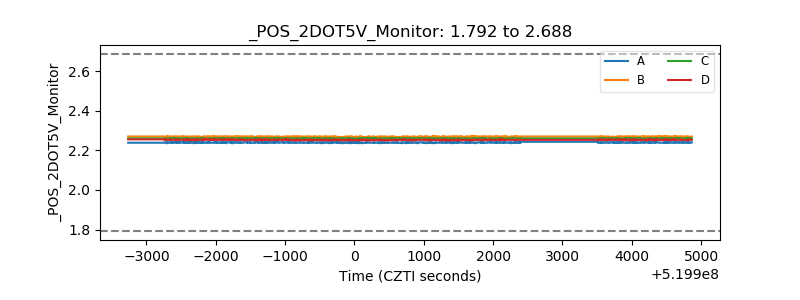

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

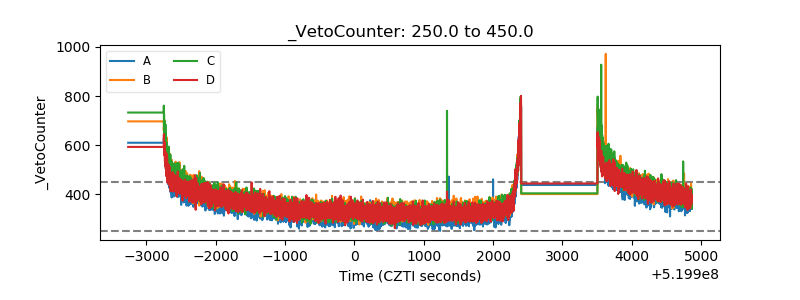

| Veto Counter |  |
