| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58090cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58090cztM0_level2_quad_clean.evt |
| Size (bytes) | 656,216,640 | 94,962,240 |
| Size | 625.8 MB | 90.6 MB |
| Events in quadrant A | 3,119,715 | 699,026 |
| Events in quadrant B | 10,373,789 | 507,530 |
| Events in quadrant C | 3,355,321 | 658,662 |
| Events in quadrant D | 6,927,944 | 547,484 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13749 | 2 |
| B | 0 | 35455 | 2 |
| C | 0 | 14519 | 2 |
| D | 0 | 25122 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6632 | 100 | 1.507841% |
| B | 6632 | 2595 | 39.128468% |
| C | 6632 | 102 | 1.537998% |
| D | 6631 | 927 | 13.979792% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7782 | 6632 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7782 | 6632 | 1960 | 1960 | 25.19% | 29.55% |  |
| C | 7782 | 6632 | 16 | 16 | 0.21% | 0.24% |  |
| D | 7781 | 6631 | 784 | 784 | 10.08% | 11.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 61 | 22224 | 110.59 | 792 | 773 | 194.0 |
| A | 13 | 248 | 21515 | 106.94 | 792 | 773 | 194.0 |
| A | 13 | 254 | 9540 | 45.2 | 792 | 773 | 194.0 |
| B | 10 | 128 | 6527695 | 44495.29 | 684 | 658 | 146.7 |
| B | 5 | 172 | 797013 | 5428.81 | 684 | 658 | 146.7 |
| B | 0 | 156 | 100909 | 683.42 | 684 | 658 | 146.7 |
| C | 6 | 223 | 173286 | 826.61 | 759 | 750 | 208.7 |
| C | 15 | 208 | 117609 | 559.86 | 759 | 750 | 208.7 |
| C | 12 | 252 | 59080 | 279.45 | 759 | 750 | 208.7 |
| D | 12 | 110 | 2893742 | 13847.22 | 738 | 706 | 208.9 |
| D | 8 | 160 | 369558 | 1765.47 | 738 | 706 | 208.9 |
| D | 3 | 224 | 237907 | 1135.34 | 738 | 706 | 208.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

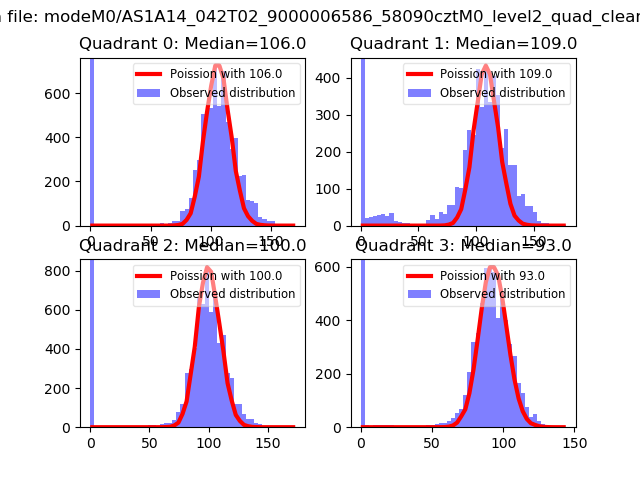

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

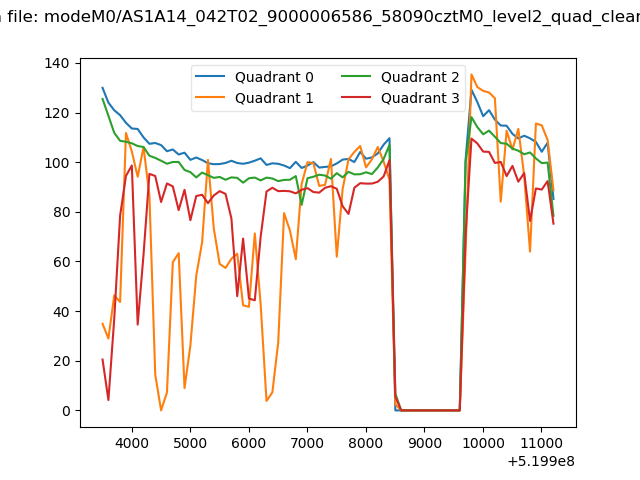

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

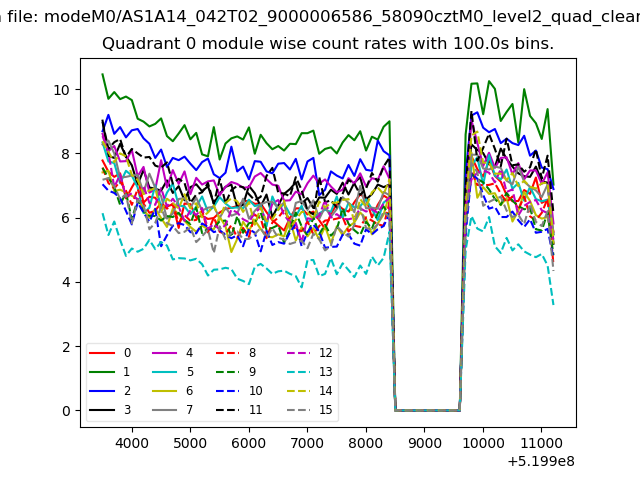

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

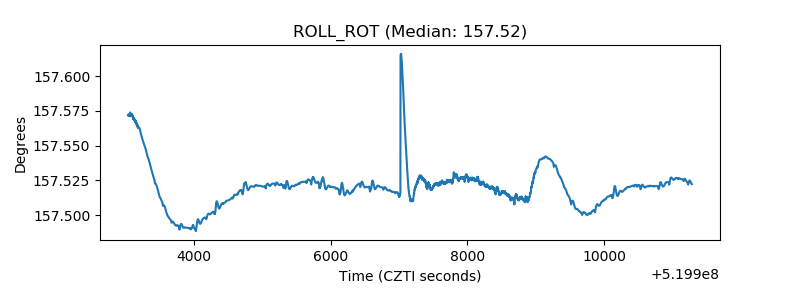

| _ROLL_ROT |  |

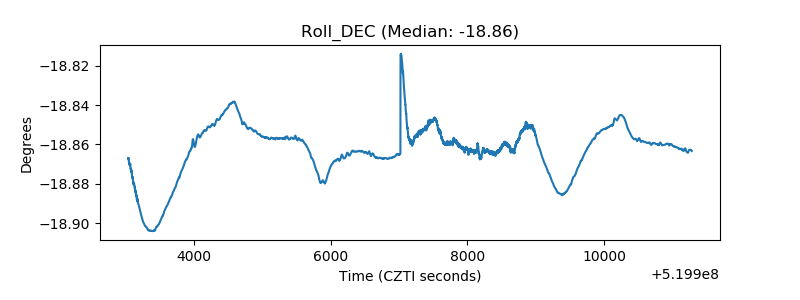

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
