| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58094cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58094cztM0_level2_quad_clean.evt |
| Size (bytes) | 712,445,760 | 96,719,040 |
| Size | 679.4 MB | 92.2 MB |
| Events in quadrant A | 3,406,296 | 702,811 |
| Events in quadrant B | 9,720,835 | 562,341 |
| Events in quadrant C | 3,810,790 | 661,198 |
| Events in quadrant D | 8,881,215 | 504,673 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15412 | 2 |
| B | 0 | 33940 | 2 |
| C | 0 | 16504 | 2 |
| D | 0 | 31347 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7148 | 67 | 0.937325% |
| B | 7148 | 2019 | 28.245663% |
| C | 7148 | 103 | 1.440963% |
| D | 7147 | 1560 | 21.827340% |

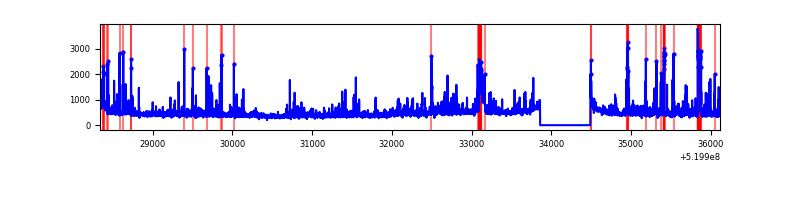

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7778 | 7149 | 30 | 30 | 0.39% | 0.42% |  |
| B | 7777 | 7148 | 1614 | 1614 | 20.75% | 22.58% |  |
| C | 7778 | 7149 | 84 | 84 | 1.08% | 1.17% |  |
| D | 7777 | 7148 | 1600 | 1600 | 20.57% | 22.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 142597 | 716.48 | 799 | 779 | 197.9 |
| A | 7 | 112 | 47653 | 236.81 | 799 | 779 | 197.9 |
| A | 13 | 248 | 35589 | 175.86 | 799 | 779 | 197.9 |
| B | 10 | 128 | 5897437 | 38262.81 | 711 | 685 | 154.1 |
| B | 5 | 172 | 641488 | 4158.04 | 711 | 685 | 154.1 |
| B | 0 | 153 | 53143 | 340.39 | 711 | 685 | 154.1 |
| C | 12 | 252 | 262289 | 1256.5 | 767 | 759 | 208.1 |
| C | 12 | 254 | 206364 | 987.81 | 767 | 759 | 208.1 |
| C | 14 | 254 | 113398 | 541.16 | 767 | 759 | 208.1 |
| D | 12 | 110 | 5044482 | 25211.41 | 710 | 679 | 200.1 |
| D | 8 | 160 | 612837 | 3059.87 | 710 | 679 | 200.1 |
| D | 8 | 240 | 138757 | 690.18 | 710 | 679 | 200.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

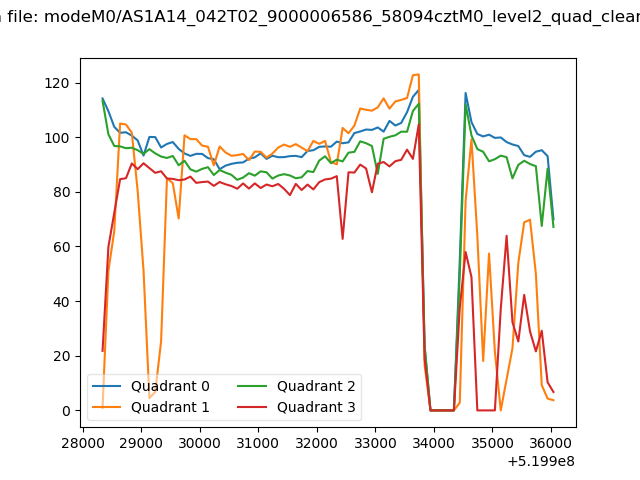

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

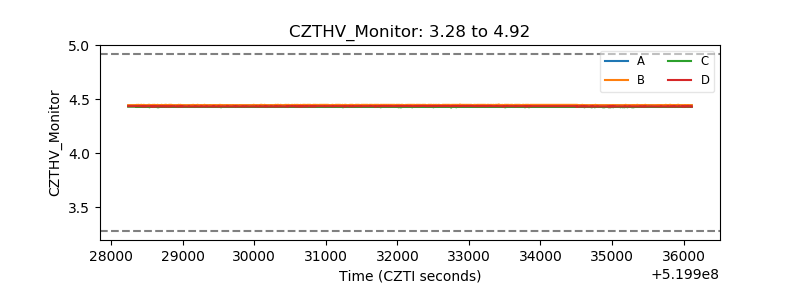

| CZT HV Monitor |  |

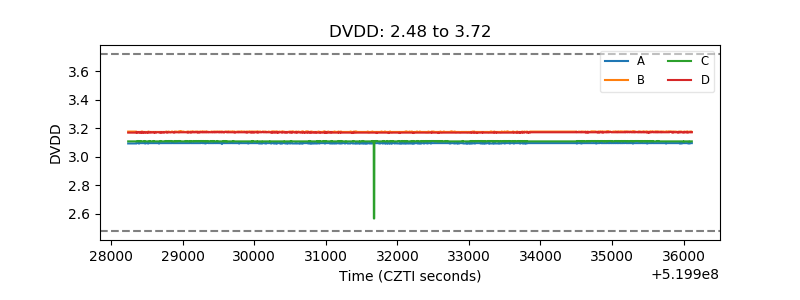

| D_VDD |  |

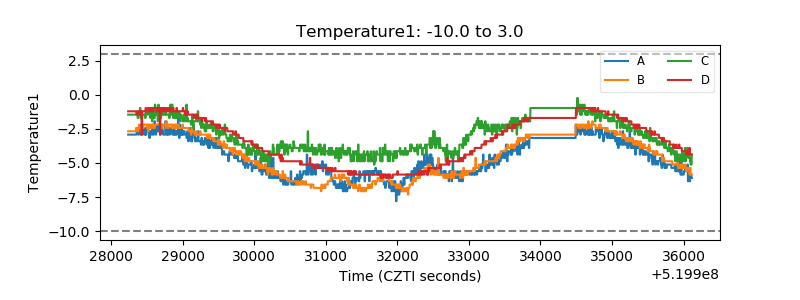

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

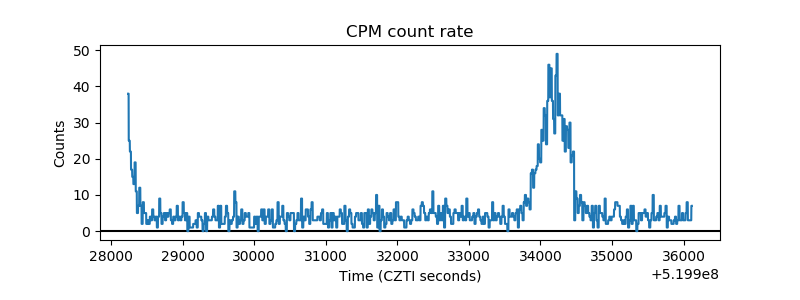

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

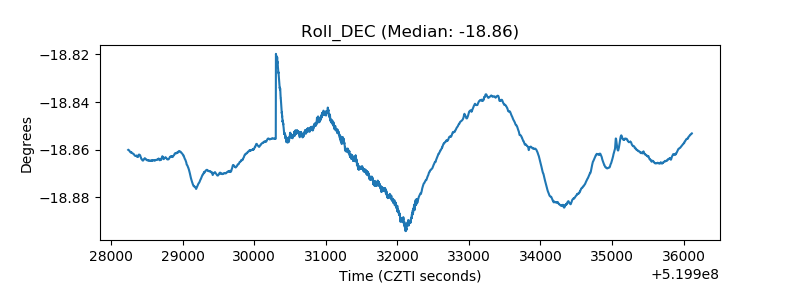

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
