| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58097cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58097cztM0_level2_quad_clean.evt |
| Size (bytes) | 983,177,280 | 93,136,320 |
| Size | 937.6 MB | 88.8 MB |
| Events in quadrant A | 5,093,095 | 664,031 |
| Events in quadrant B | 13,350,568 | 481,777 |
| Events in quadrant C | 4,125,827 | 696,869 |
| Events in quadrant D | 13,228,645 | 440,087 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20908 | 0 |
| B | 0 | 44996 | 0 |
| C | 0 | 17869 | 0 |
| D | 0 | 44699 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7720 | 752 | 9.740933% |
| B | 7721 | 3453 | 44.722186% |
| C | 7720 | 79 | 1.023316% |
| D | 7720 | 2700 | 34.974093% |

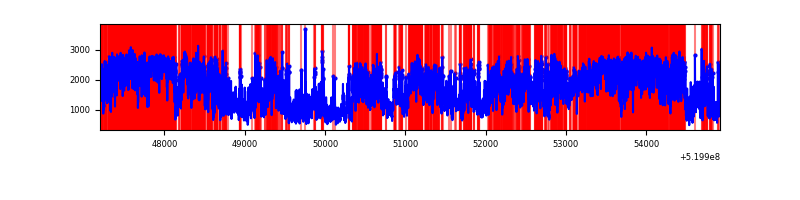

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7720 | 7720 | 611 | 611 | 7.91% | 7.91% |  |
| B | 7721 | 7721 | 2773 | 2773 | 35.92% | 35.92% |  |
| C | 7720 | 7720 | 79 | 79 | 1.02% | 1.02% |  |
| D | 7720 | 7720 | 2967 | 2967 | 38.43% | 38.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 253 | 1837150 | 9189.24 | 802 | 780 | 199.8 |
| A | 10 | 251 | 84657 | 419.72 | 802 | 780 | 199.8 |
| A | 3 | 61 | 22435 | 108.36 | 802 | 780 | 199.8 |
| B | 10 | 128 | 9359608 | 59692.5 | 723 | 695 | 156.8 |
| B | 5 | 172 | 823255 | 5246.41 | 723 | 695 | 156.8 |
| B | 5 | 185 | 66703 | 421.01 | 723 | 695 | 156.8 |
| C | 12 | 252 | 707779 | 3138.53 | 823 | 817 | 225.3 |
| C | 6 | 223 | 70278 | 308.37 | 823 | 817 | 225.3 |
| C | 15 | 208 | 65901 | 288.94 | 823 | 817 | 225.3 |
| D | 12 | 110 | 9875470 | 47095.94 | 742 | 709 | 209.7 |
| D | 12 | 1 | 69562 | 328.38 | 742 | 709 | 209.7 |
| D | 5 | 32 | 66297 | 312.81 | 742 | 709 | 209.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

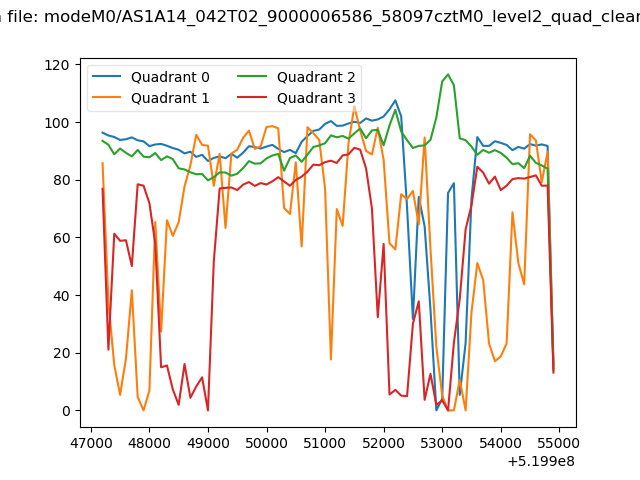

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

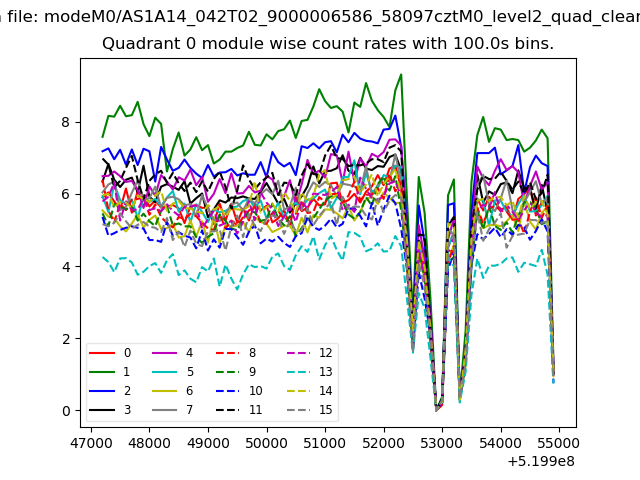

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

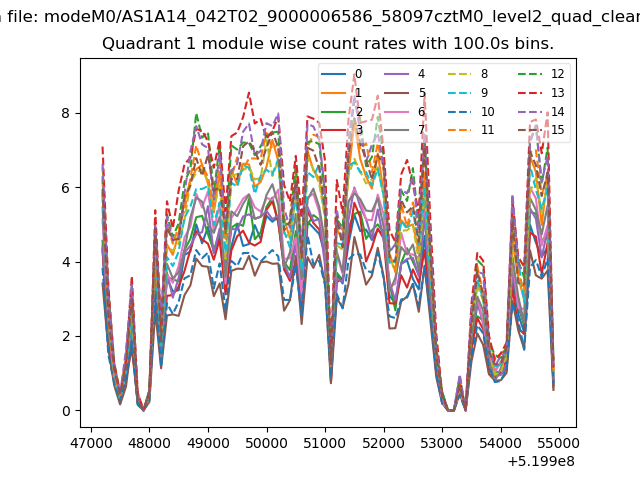

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

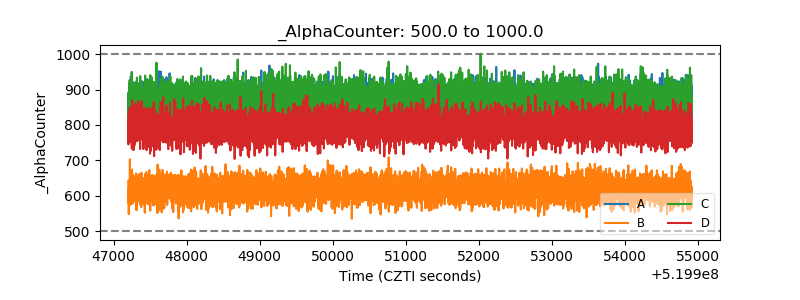

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

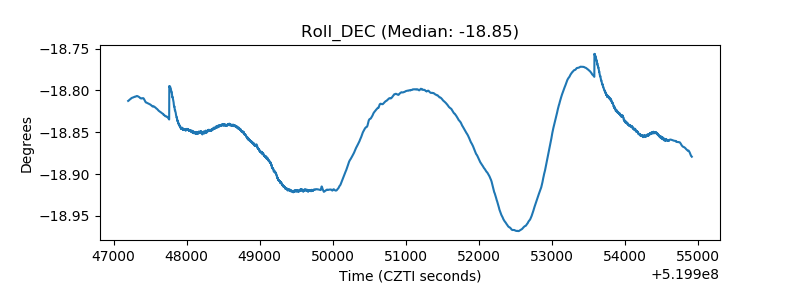

| _Roll_DEC |  |

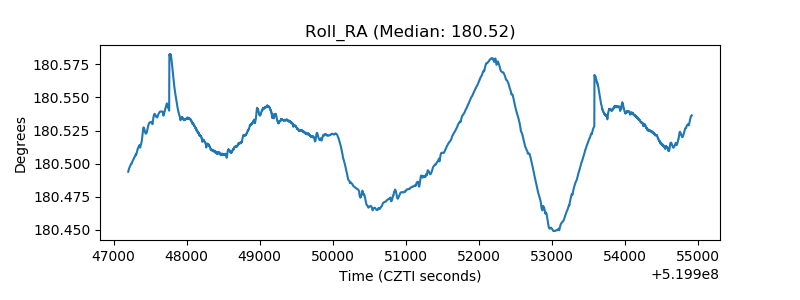

| _Roll_RA |  |

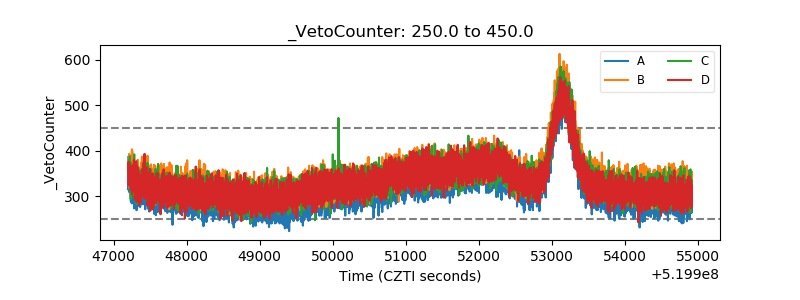

| Veto Counter |  |
