| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58100cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58100cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,001,116,800 | 156,182,400 |
| Size | 954.7 MB | 148.9 MB |
| Events in quadrant A | 5,872,772 | 1,058,317 |
| Events in quadrant B | 14,287,478 | 950,153 |
| Events in quadrant C | 5,798,437 | 1,022,212 |
| Events in quadrant D | 10,213,753 | 905,643 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 232 | 0 |
| B | 0 | 232 | 0 |
| C | 0 | 232 | 0 |
| D | 0 | 232 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25868 | 2 |
| B | 0 | 50604 | 2 |
| C | 0 | 25511 | 2 |
| D | 0 | 38268 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11452 | 334 | 2.916521% |
| B | 11453 | 2502 | 21.845805% |
| C | 11453 | 150 | 1.309701% |
| D | 11453 | 924 | 8.067755% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

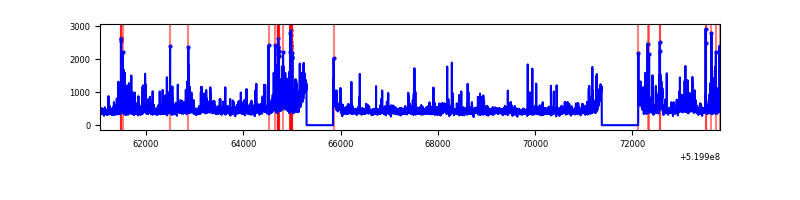

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12747 | 11452 | 189 | 189 | 1.48% | 1.65% |  |
| B | 12747 | 11452 | 1779 | 1779 | 13.96% | 15.53% |  |
| C | 12748 | 11453 | 46 | 46 | 0.36% | 0.40% |  |
| D | 12748 | 11453 | 963 | 963 | 7.55% | 8.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 863764 | 2785.43 | 1259 | 1226 | 309.7 |
| A | 3 | 245 | 32641 | 101.45 | 1259 | 1226 | 309.7 |
| A | 6 | 226 | 28600 | 88.4 | 1259 | 1226 | 309.7 |
| B | 10 | 128 | 5305268 | 21253.03 | 1166 | 1119 | 249.6 |
| B | 5 | 172 | 3500027 | 14019.66 | 1166 | 1119 | 249.6 |
| B | 5 | 185 | 446690 | 1785.34 | 1166 | 1119 | 249.6 |
| C | 12 | 252 | 415973 | 1240.76 | 1231 | 1220 | 334.3 |
| C | 9 | 38 | 358040 | 1067.45 | 1231 | 1220 | 334.3 |
| C | 6 | 223 | 100623 | 297.37 | 1231 | 1220 | 334.3 |
| D | 12 | 110 | 4077959 | 12064.9 | 1205 | 1153 | 337.9 |
| D | 8 | 160 | 601329 | 1776.16 | 1205 | 1153 | 337.9 |
| D | 2 | 249 | 291794 | 860.12 | 1205 | 1153 | 337.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

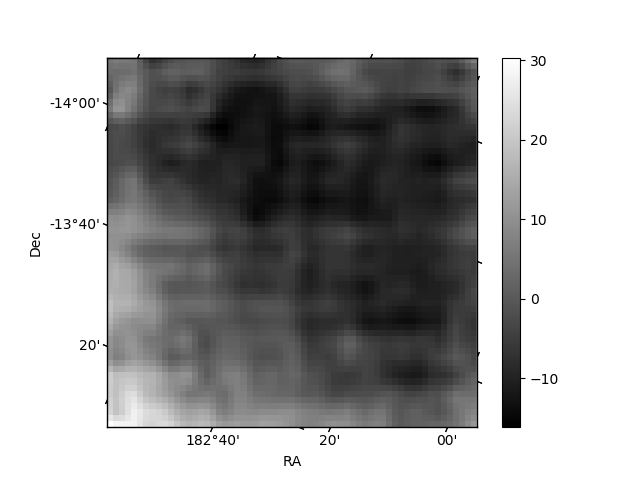

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

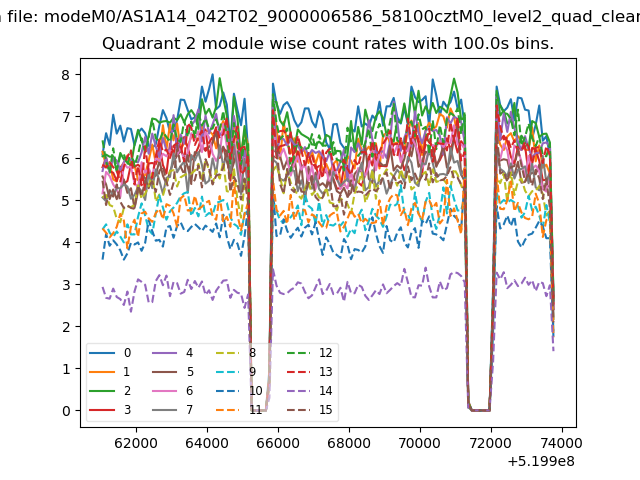

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

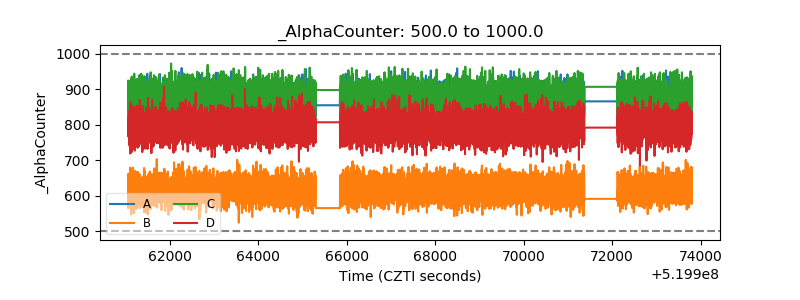

| Alpha Counter |  |

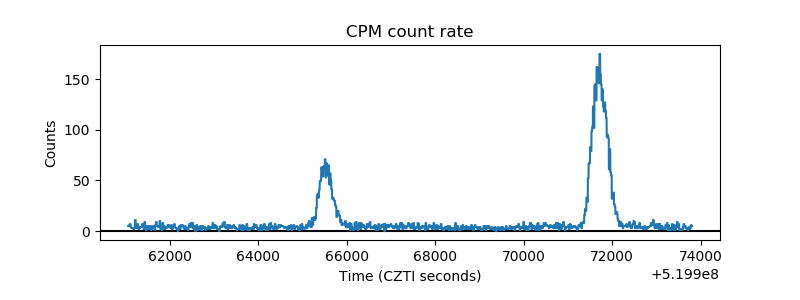

| _CPM_Rate |  |

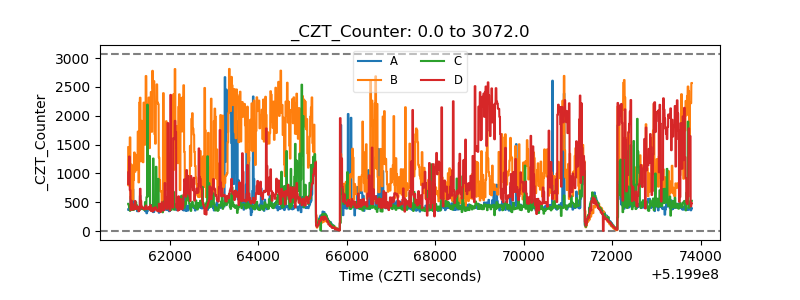

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

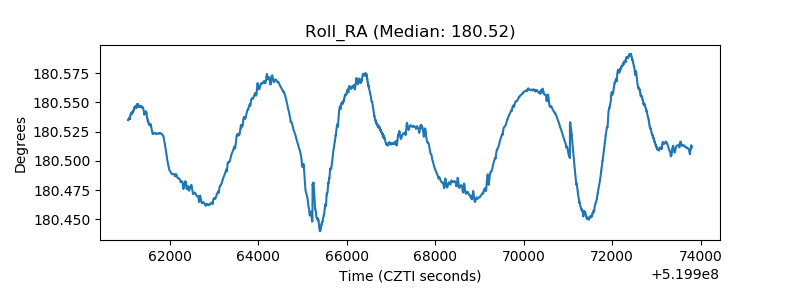

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

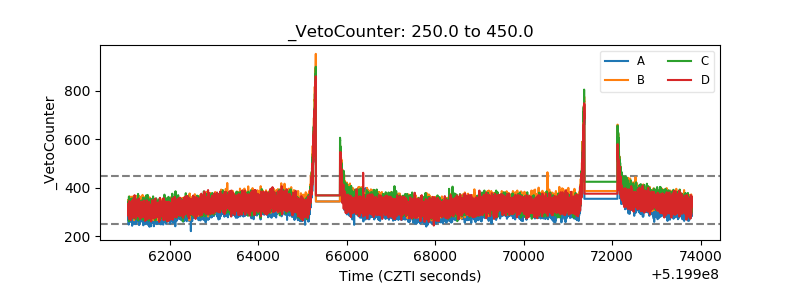

| Veto Counter |  |
