| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58101cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58101cztM0_level2_quad_clean.evt |
| Size (bytes) | 691,093,440 | 92,122,560 |
| Size | 659.1 MB | 87.9 MB |
| Events in quadrant A | 3,263,386 | 664,850 |
| Events in quadrant B | 8,416,931 | 584,520 |
| Events in quadrant C | 3,640,767 | 633,488 |
| Events in quadrant D | 9,725,684 | 424,656 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14632 | 3 |
| B | 0 | 29924 | 2 |
| C | 0 | 15644 | 2 |
| D | 0 | 33628 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6907 | 82 | 1.187201% |
| B | 6907 | 1529 | 22.136963% |
| C | 6907 | 90 | 1.303026% |
| D | 6907 | 2204 | 31.909657% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

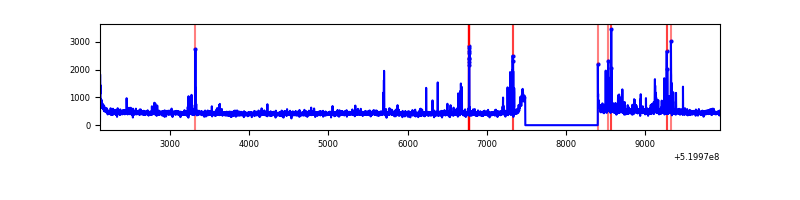

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7822 | 6907 | 18 | 18 | 0.23% | 0.26% |  |
| B | 7822 | 6907 | 890 | 890 | 11.38% | 12.89% |  |
| C | 7822 | 6907 | 39 | 39 | 0.50% | 0.56% |  |
| D | 7821 | 6906 | 2147 | 2147 | 27.45% | 31.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 185800 | 975.42 | 776 | 756 | 189.7 |
| A | 3 | 245 | 34205 | 176.32 | 776 | 756 | 189.7 |
| A | 11 | 3 | 12968 | 64.37 | 776 | 756 | 189.7 |
| B | 10 | 128 | 3800192 | 24862.54 | 716 | 689 | 152.8 |
| B | 5 | 172 | 1351886 | 8841.73 | 716 | 689 | 152.8 |
| B | 5 | 185 | 209730 | 1367.89 | 716 | 689 | 152.8 |
| C | 12 | 252 | 467955 | 2285.24 | 753 | 746 | 204.4 |
| C | 6 | 223 | 90187 | 437.48 | 753 | 746 | 204.4 |
| C | 15 | 208 | 84610 | 410.2 | 753 | 746 | 204.4 |
| D | 12 | 110 | 5146911 | 26926.49 | 674 | 645 | 191.1 |
| D | 3 | 224 | 798086 | 4172.4 | 674 | 645 | 191.1 |
| D | 7 | 222 | 408995 | 2136.58 | 674 | 645 | 191.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

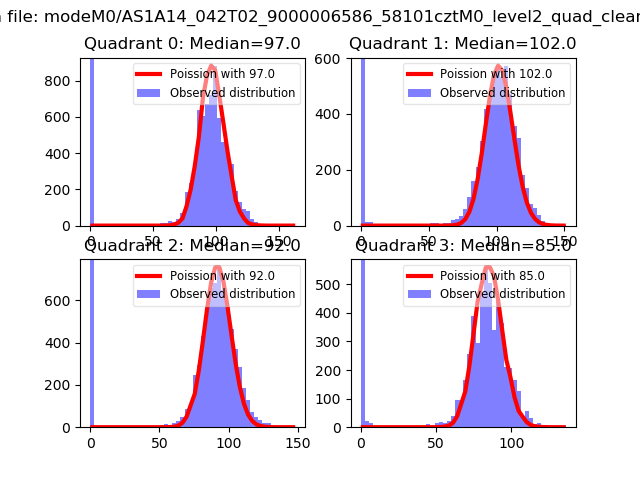

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

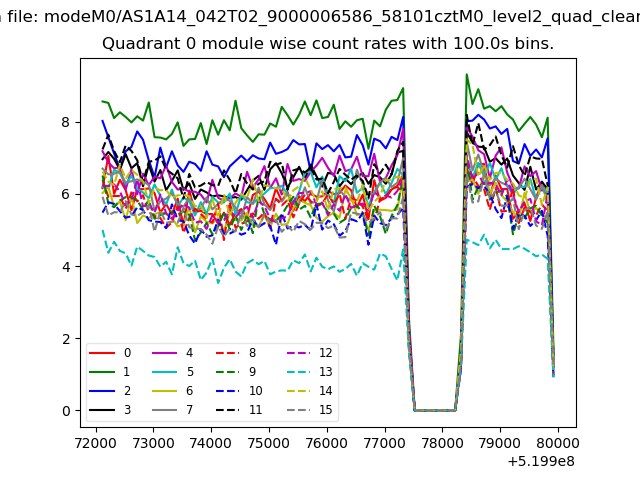

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

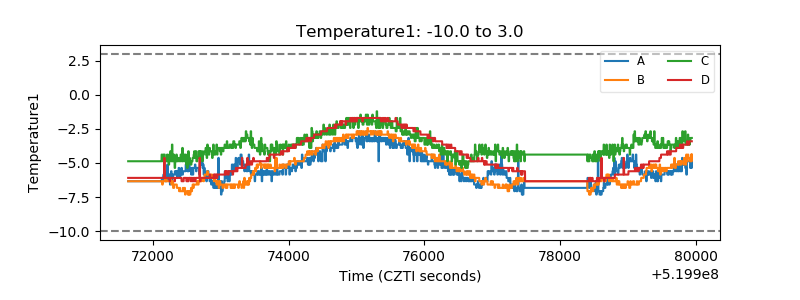

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

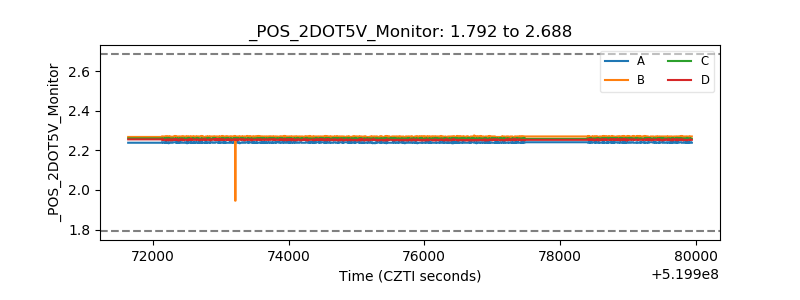

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

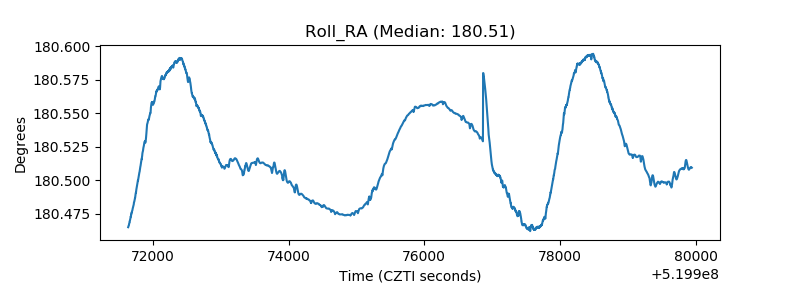

| _Roll_RA |  |
| Veto Counter |  |
