| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58103cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58103cztM0_level2_quad_clean.evt |
| Size (bytes) | 913,521,600 | 63,933,120 |
| Size | 871.2 MB | 61.0 MB |
| Events in quadrant A | 3,289,153 | 615,709 |
| Events in quadrant B | 12,121,209 | 251,767 |
| Events in quadrant C | 3,015,840 | 587,680 |
| Events in quadrant D | 14,904,703 | 44,213 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14142 | 1 |
| B | 0 | 40279 | 1 |
| C | 0 | 13294 | 1 |
| D | 0 | 48612 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6249 | 137 | 2.192351% |
| B | 6250 | 4123 | 65.968000% |
| C | 6250 | 79 | 1.264000% |
| D | 6250 | 5838 | 93.408000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

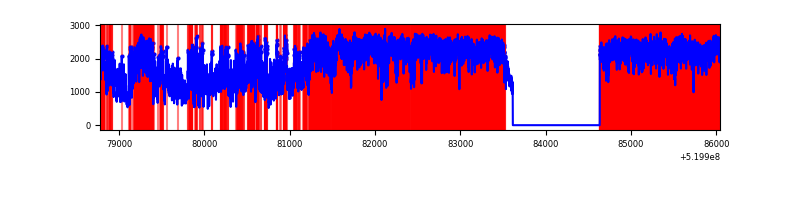

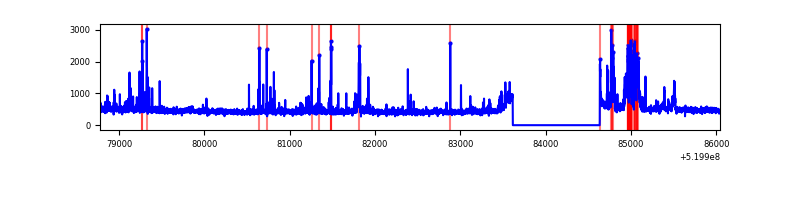

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7269 | 6249 | 44 | 44 | 0.61% | 0.70% |  |
| B | 7269 | 6249 | 3475 | 3475 | 47.81% | 55.61% |  |
| C | 7270 | 6250 | 15 | 15 | 0.21% | 0.24% |  |
| D | 7269 | 6249 | 5577 | 5577 | 76.72% | 89.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 438437 | 2498.67 | 712 | 695 | 175.2 |
| A | 3 | 245 | 22999 | 127.31 | 712 | 695 | 175.2 |
| A | 11 | 3 | 19753 | 108.78 | 712 | 695 | 175.2 |
| B | 5 | 172 | 7159407 | 62975.83 | 521 | 501 | 113.7 |
| B | 10 | 128 | 2696591 | 23717.1 | 521 | 501 | 113.7 |
| B | 4 | 171 | 52608 | 458.38 | 521 | 501 | 113.7 |
| C | 12 | 252 | 176545 | 935.62 | 688 | 681 | 188.0 |
| C | 15 | 208 | 59944 | 315.29 | 688 | 681 | 188.0 |
| C | 6 | 223 | 49789 | 261.26 | 688 | 681 | 188.0 |
| D | 12 | 110 | 12937608 | 125622.68 | 358 | 341 | 103.0 |
| D | 8 | 160 | 274772 | 2664.76 | 358 | 341 | 103.0 |
| D | 3 | 224 | 91129 | 881.56 | 358 | 341 | 103.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

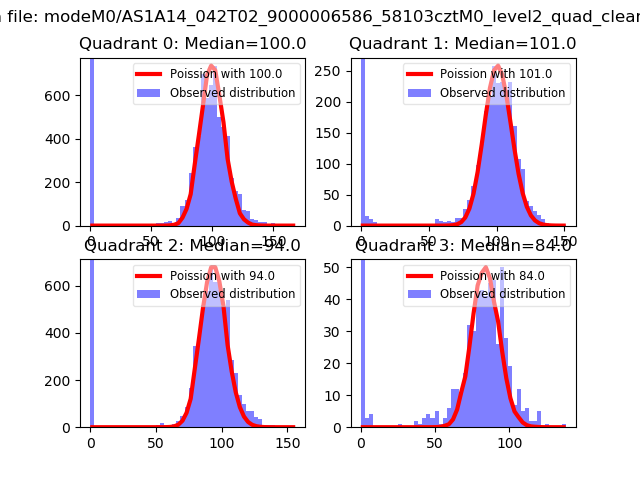

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

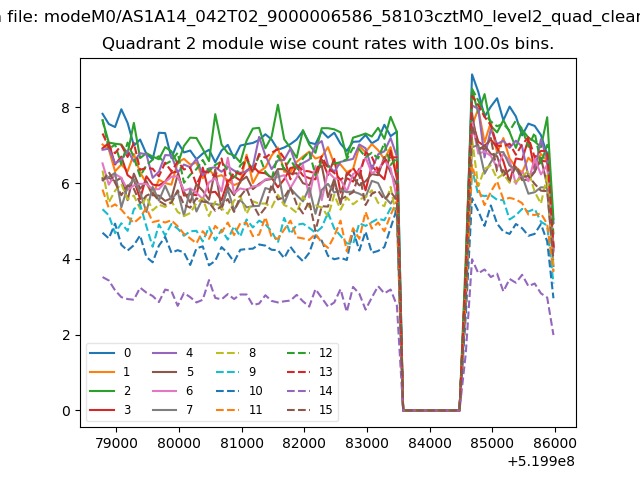

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

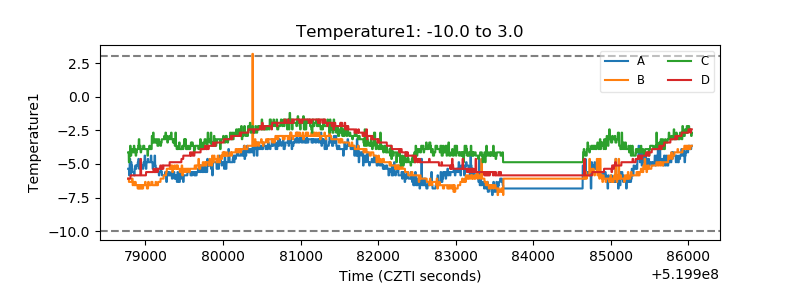

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

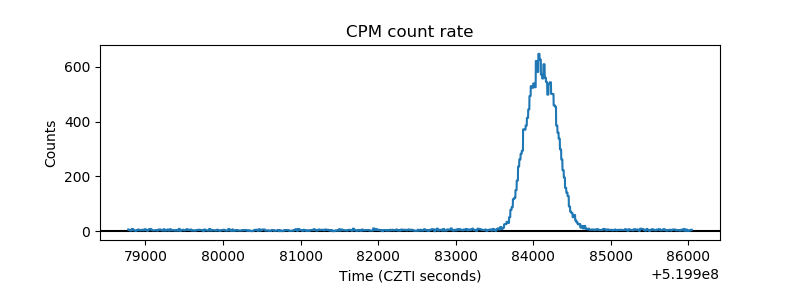

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

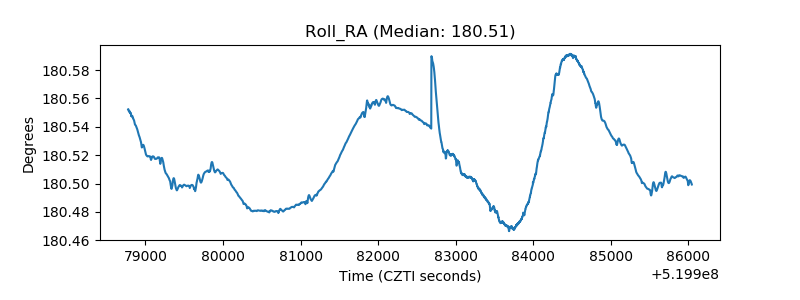

| _Roll_RA |  |
