| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58105cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58105cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,200,640 | 88,655,040 |
| Size | 675.4 MB | 84.5 MB |
| Events in quadrant A | 3,298,145 | 696,396 |
| Events in quadrant B | 8,946,598 | 569,648 |
| Events in quadrant C | 3,453,221 | 657,030 |
| Events in quadrant D | 10,004,975 | 301,344 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14182 | 2 |
| B | 0 | 31263 | 2 |
| C | 0 | 14664 | 2 |
| D | 0 | 34157 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6598 | 105 | 1.591391% |
| B | 6598 | 1934 | 29.311913% |
| C | 6598 | 103 | 1.561079% |
| D | 6597 | 3617 | 54.827952% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7763 | 6598 | 20 | 20 | 0.26% | 0.30% |  |
| B | 7763 | 6598 | 1583 | 1583 | 20.39% | 23.99% |  |
| C | 7763 | 6598 | 35 | 35 | 0.45% | 0.53% |  |
| D | 7761 | 6596 | 2836 | 2836 | 36.54% | 43.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 149207 | 761.08 | 787 | 767 | 195.0 |
| A | 3 | 61 | 31682 | 158.51 | 787 | 767 | 195.0 |
| A | 4 | 3 | 26261 | 130.71 | 787 | 767 | 195.0 |
| B | 10 | 128 | 3391166 | 22926.75 | 688 | 663 | 147.9 |
| B | 5 | 172 | 2128755 | 14390.26 | 688 | 663 | 147.9 |
| B | 2 | 249 | 291807 | 1968.73 | 688 | 663 | 147.9 |
| C | 12 | 252 | 218728 | 1060.56 | 752 | 745 | 205.5 |
| C | 9 | 38 | 119895 | 579.7 | 752 | 745 | 205.5 |
| C | 15 | 208 | 55836 | 268.04 | 752 | 745 | 205.5 |
| D | 12 | 110 | 7263137 | 47999.53 | 532 | 509 | 151.3 |
| D | 8 | 160 | 287788 | 1898.66 | 532 | 509 | 151.3 |
| D | 3 | 224 | 158086 | 1041.44 | 532 | 509 | 151.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

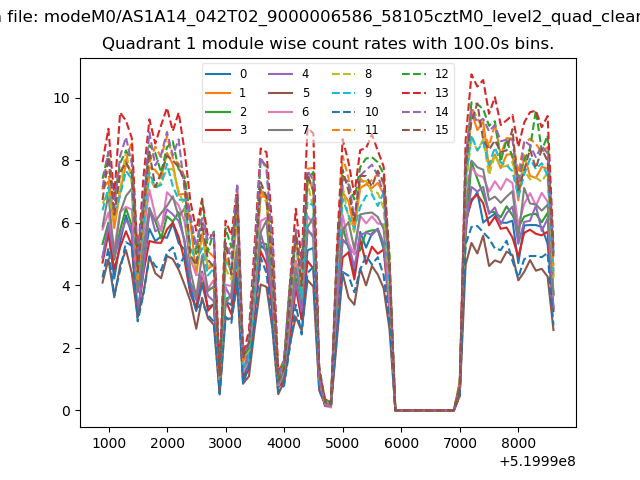

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

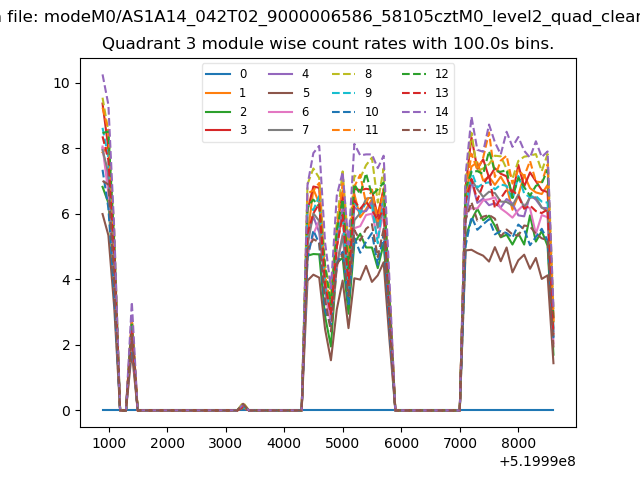

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

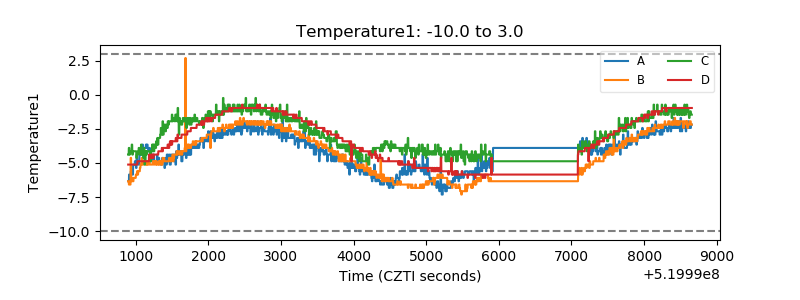

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

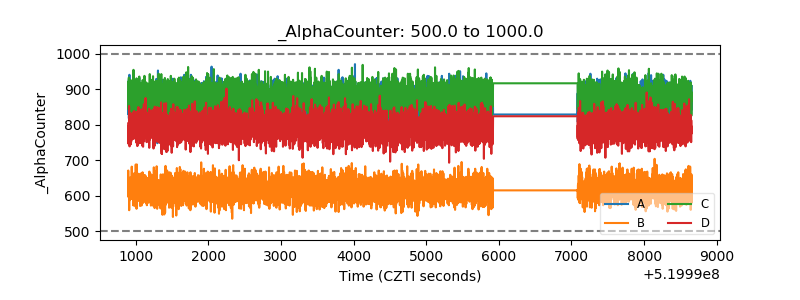

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

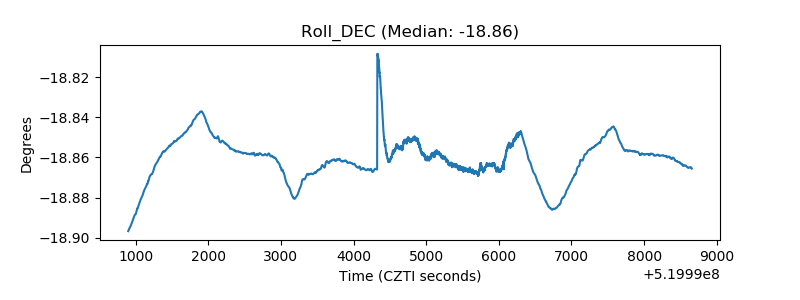

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
