| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58106cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58106cztM0_level2_quad_clean.evt |
| Size (bytes) | 569,064,960 | 90,449,280 |
| Size | 542.7 MB | 86.3 MB |
| Events in quadrant A | 3,174,837 | 641,324 |
| Events in quadrant B | 6,323,349 | 628,693 |
| Events in quadrant C | 2,816,766 | 606,708 |
| Events in quadrant D | 8,268,583 | 429,663 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13651 | 1 |
| B | 0 | 23158 | 1 |
| C | 0 | 12867 | 1 |
| D | 0 | 28783 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6201 | 140 | 2.257700% |
| B | 6201 | 713 | 11.498145% |
| C | 6201 | 74 | 1.193356% |
| D | 6201 | 1814 | 29.253346% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7340 | 6200 | 59 | 59 | 0.80% | 0.95% |  |
| B | 7340 | 6200 | 468 | 468 | 6.38% | 7.55% |  |
| C | 7340 | 6200 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7340 | 6200 | 1796 | 1796 | 24.47% | 28.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 318031 | 1783.96 | 722 | 702 | 177.9 |
| A | 4 | 3 | 11907 | 62.99 | 722 | 702 | 177.9 |
| A | 13 | 254 | 11273 | 59.43 | 722 | 702 | 177.9 |
| B | 10 | 128 | 3040085 | 20916.1 | 680 | 655 | 145.3 |
| B | 4 | 201 | 136760 | 936.62 | 680 | 655 | 145.3 |
| B | 5 | 185 | 124075 | 849.33 | 680 | 655 | 145.3 |
| C | 12 | 252 | 55433 | 288.01 | 693 | 685 | 190.1 |
| C | 12 | 250 | 17618 | 89.08 | 693 | 685 | 190.1 |
| C | 14 | 254 | 11631 | 57.58 | 693 | 685 | 190.1 |
| D | 12 | 110 | 5297953 | 29669.52 | 628 | 599 | 178.5 |
| D | 8 | 160 | 180143 | 1005.59 | 628 | 599 | 178.5 |
| D | 8 | 240 | 111234 | 619.64 | 628 | 599 | 178.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

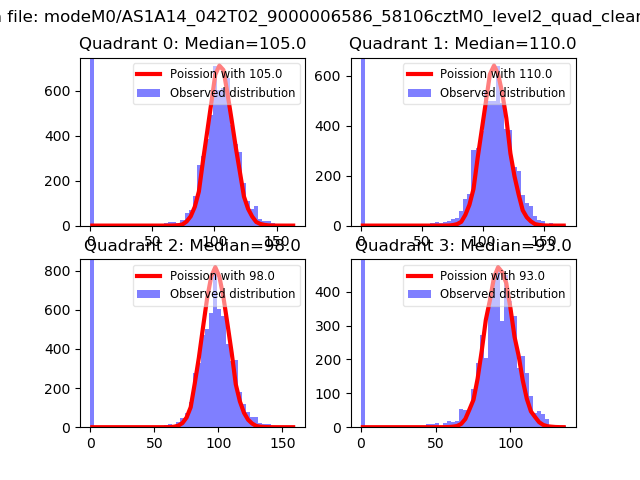

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

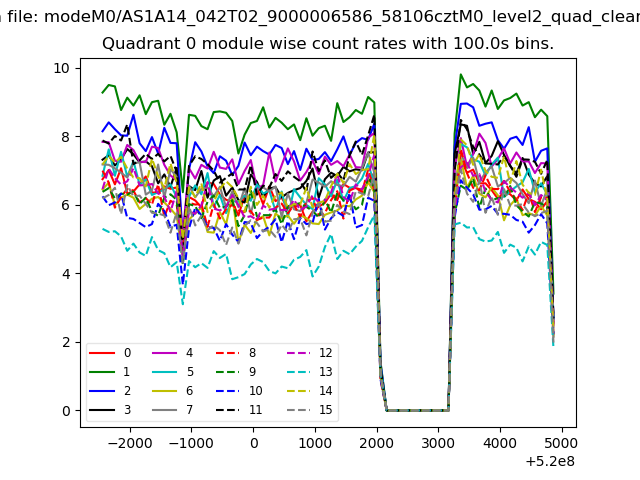

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

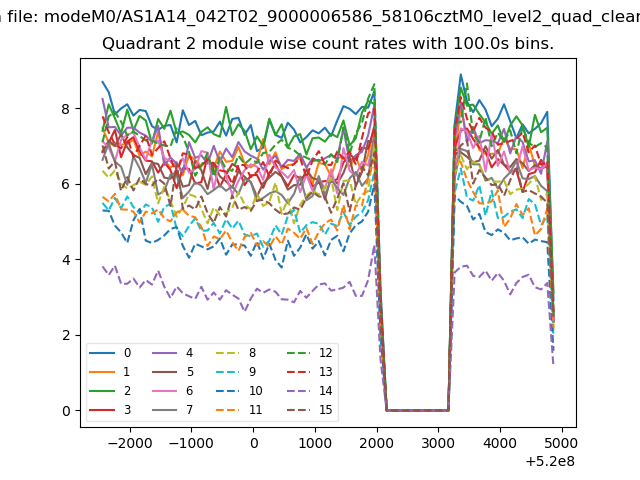

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

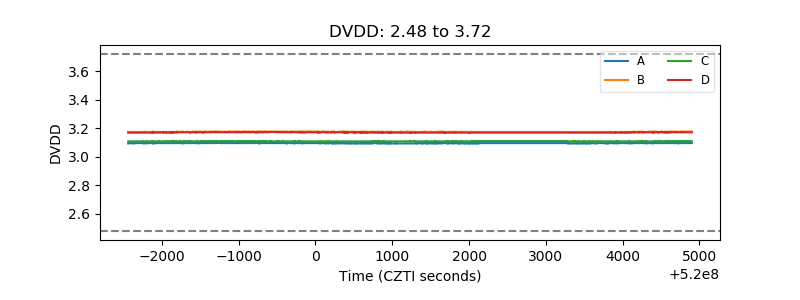

| D_VDD |  |
| Temperature 1 |  |

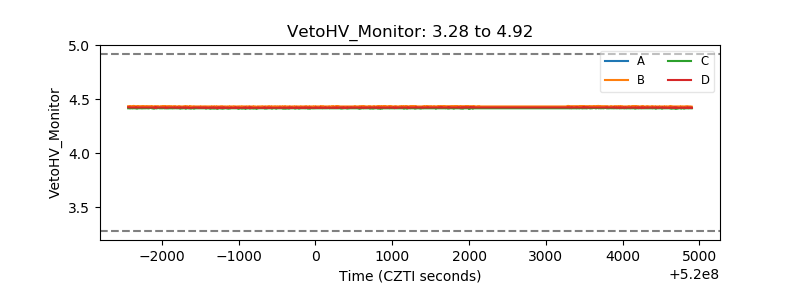

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

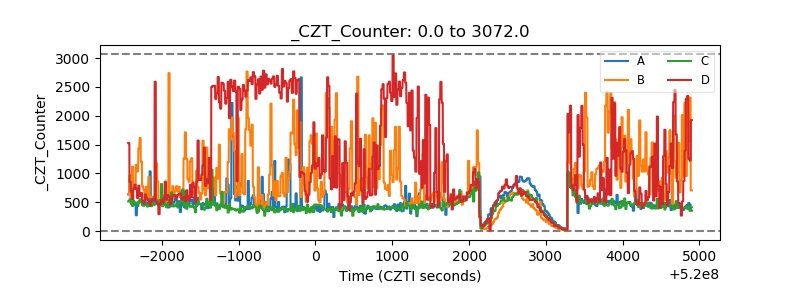

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

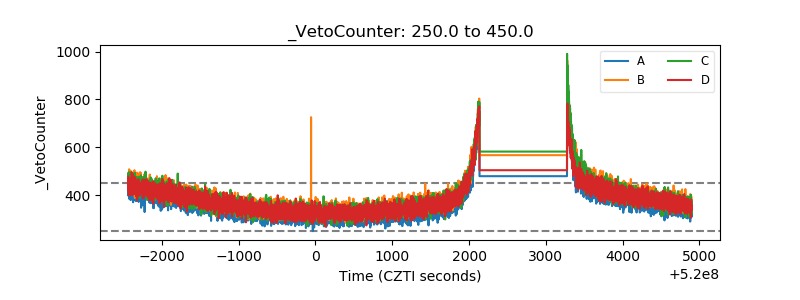

| Veto Counter |  |
