| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58108cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58108cztM0_level2_quad_clean.evt |
| Size (bytes) | 668,577,600 | 89,812,800 |
| Size | 637.6 MB | 85.7 MB |
| Events in quadrant A | 3,181,251 | 677,871 |
| Events in quadrant B | 11,211,254 | 390,549 |
| Events in quadrant C | 3,217,457 | 639,868 |
| Events in quadrant D | 6,609,186 | 535,421 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14386 | 2 |
| B | 0 | 38036 | 1 |
| C | 0 | 14615 | 1 |
| D | 0 | 24342 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6819 | 43 | 0.630591% |
| B | 6820 | 3353 | 49.164223% |
| C | 6820 | 35 | 0.513196% |
| D | 6820 | 872 | 12.785924% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7679 | 6820 | 11 | 11 | 0.14% | 0.16% |  |
| B | 7680 | 6821 | 3035 | 3035 | 39.52% | 44.49% |  |
| C | 7680 | 6821 | 21 | 21 | 0.27% | 0.31% |  |
| D | 7680 | 6821 | 920 | 920 | 11.98% | 13.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 106720 | 564.13 | 763 | 744 | 187.9 |
| A | 3 | 245 | 41216 | 215.44 | 763 | 744 | 187.9 |
| A | 3 | 61 | 29465 | 152.89 | 763 | 744 | 187.9 |
| B | 5 | 172 | 5779877 | 44234.75 | 605 | 583 | 130.7 |
| B | 10 | 128 | 2794973 | 21388.28 | 605 | 583 | 130.7 |
| B | 5 | 185 | 53044 | 401.54 | 605 | 583 | 130.7 |
| C | 15 | 208 | 164392 | 804.62 | 732 | 726 | 203.4 |
| C | 9 | 38 | 80968 | 394.49 | 732 | 726 | 203.4 |
| C | 12 | 252 | 66658 | 324.14 | 732 | 726 | 203.4 |
| D | 12 | 110 | 2719955 | 13741.75 | 699 | 670 | 197.9 |
| D | 0 | 160 | 823552 | 4158.39 | 699 | 670 | 197.9 |
| D | 8 | 160 | 106923 | 536.94 | 699 | 670 | 197.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

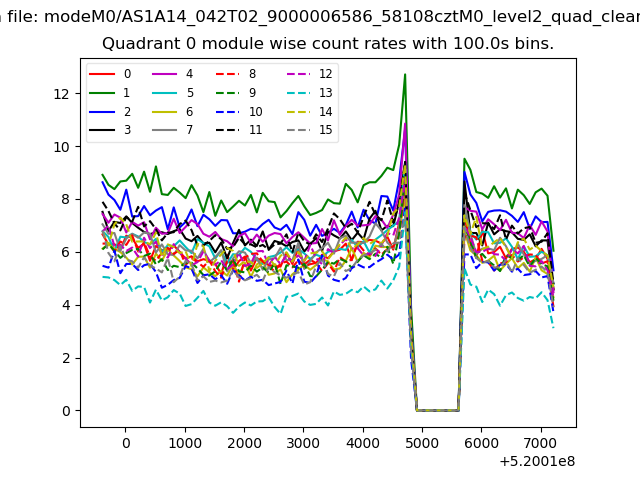

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

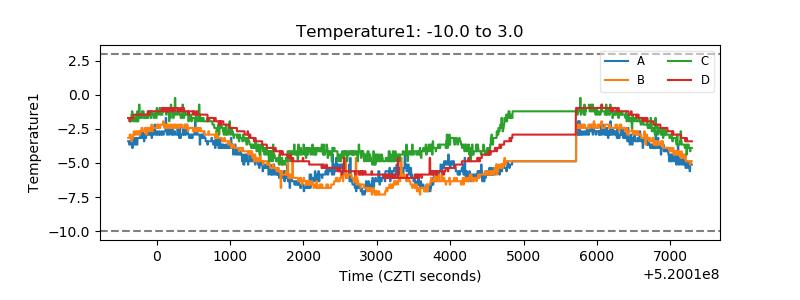

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

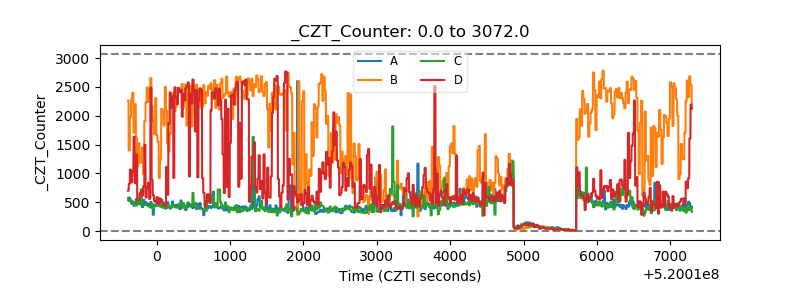

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

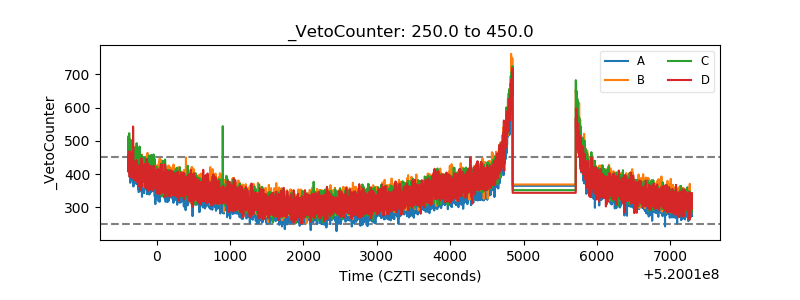

| Veto Counter |  |
