| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58110cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58110cztM0_level2_quad_clean.evt |
| Size (bytes) | 741,896,640 | 109,296,000 |
| Size | 707.5 MB | 104.2 MB |
| Events in quadrant A | 3,660,330 | 772,820 |
| Events in quadrant B | 8,236,746 | 704,388 |
| Events in quadrant C | 3,611,304 | 730,607 |
| Events in quadrant D | 11,336,845 | 546,789 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 140232410544168 | 140230682214446 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16670 | 1 |
| B | 0 | 30054 | 1 |
| C | 0 | 16620 | 1 |
| D | 0 | 39281 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7976 | 25 | 0.313440% |
| B | 7976 | 1288 | 16.148445% |
| C | 7976 | 14 | 0.175527% |
| D | 7975 | 1932 | 24.225705% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7976 | 7976 | 7 | 7 | 0.09% | 0.09% |  |
| B | 7976 | 7976 | 895 | 895 | 11.22% | 11.22% |  |
| C | 7976 | 7976 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7975 | 7975 | 1860 | 1860 | 23.32% | 23.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 74788 | 339.98 | 880 | 858 | 217.5 |
| A | 7 | 64 | 59540 | 269.86 | 880 | 858 | 217.5 |
| A | 10 | 251 | 45747 | 206.43 | 880 | 858 | 217.5 |
| B | 5 | 172 | 2792267 | 16008.67 | 812 | 783 | 174.4 |
| B | 10 | 128 | 1554284 | 8909.06 | 812 | 783 | 174.4 |
| B | 5 | 185 | 374322 | 2142.18 | 812 | 783 | 174.4 |
| C | 12 | 252 | 100027 | 423.31 | 849 | 839 | 234.3 |
| C | 11 | 244 | 43136 | 180.51 | 849 | 839 | 234.3 |
| C | 15 | 208 | 40550 | 169.48 | 849 | 839 | 234.3 |
| D | 12 | 110 | 6246186 | 27878.42 | 788 | 754 | 224.0 |
| D | 0 | 160 | 1636309 | 7300.81 | 788 | 754 | 224.0 |
| D | 2 | 249 | 173416 | 770.73 | 788 | 754 | 224.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

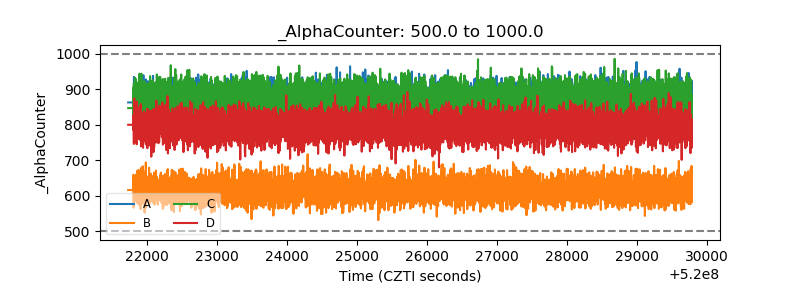

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

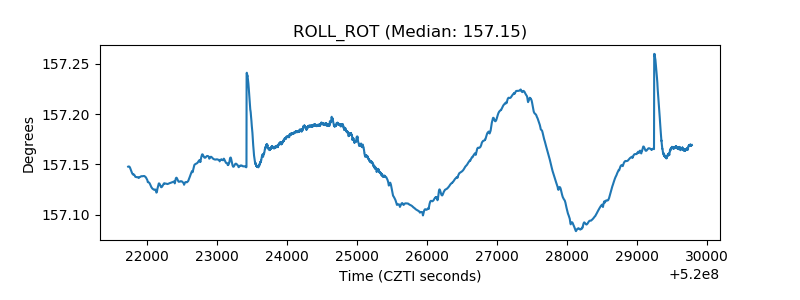

| _ROLL_ROT |  |

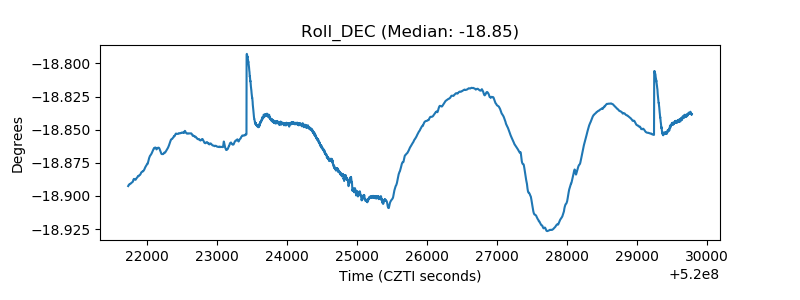

| _Roll_DEC |  |
| _Roll_RA |  |

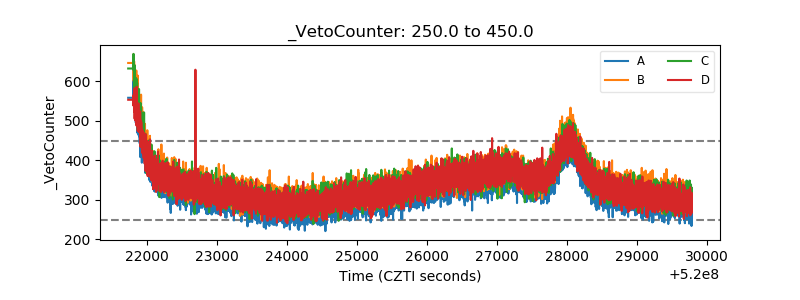

| Veto Counter |  |
