| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58114cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58114cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,446,978,240 | 275,474,880 |
| Size | 1.3 GB | 262.7 MB |
| Events in quadrant A | 8,988,383 | 1,832,140 |
| Events in quadrant B | 15,839,592 | 1,870,457 |
| Events in quadrant C | 9,043,714 | 1,756,729 |
| Events in quadrant D | 18,166,514 | 1,523,017 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 398 | 0 |
| B | 0 | 398 | 0 |
| C | 0 | 398 | 0 |
| D | 0 | 398 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41196 | 3 |
| B | 0 | 60460 | 3 |
| C | 0 | 41683 | 8 |
| D | 0 | 67380 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19714 | 255 | 1.293497% |
| B | 19715 | 1501 | 7.613492% |
| C | 19713 | 159 | 0.806574% |
| D | 19714 | 1941 | 9.845795% |

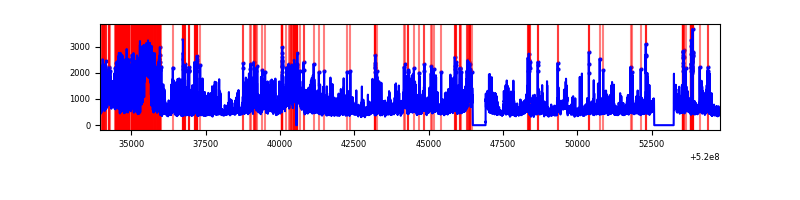

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20844 | 19717 | 26 | 26 | 0.12% | 0.13% |  |
| B | 20845 | 19718 | 796 | 796 | 3.82% | 4.04% |  |
| C | 20845 | 19717 | 28 | 28 | 0.13% | 0.14% |  |
| D | 20844 | 19717 | 1709 | 1709 | 8.20% | 8.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 160497 | 292.39 | 2202 | 2144 | 541.6 |
| A | 3 | 245 | 126570 | 229.75 | 2202 | 2144 | 541.6 |
| A | 3 | 14 | 71853 | 128.71 | 2202 | 2144 | 541.6 |
| B | 10 | 128 | 6142666 | 13547.33 | 2111 | 2021 | 453.3 |
| B | 5 | 172 | 499988 | 1098.6 | 2111 | 2021 | 453.3 |
| B | 4 | 171 | 227172 | 496.72 | 2111 | 2021 | 453.3 |
| C | 9 | 38 | 225001 | 385.87 | 2131 | 2117 | 577.6 |
| C | 12 | 252 | 180589 | 308.98 | 2131 | 2117 | 577.6 |
| C | 12 | 250 | 88738 | 149.96 | 2131 | 2117 | 577.6 |
| D | 12 | 110 | 7963217 | 13705.95 | 2054 | 1964 | 580.9 |
| D | 2 | 249 | 618035 | 1060.62 | 2054 | 1964 | 580.9 |
| D | 8 | 160 | 547760 | 939.63 | 2054 | 1964 | 580.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

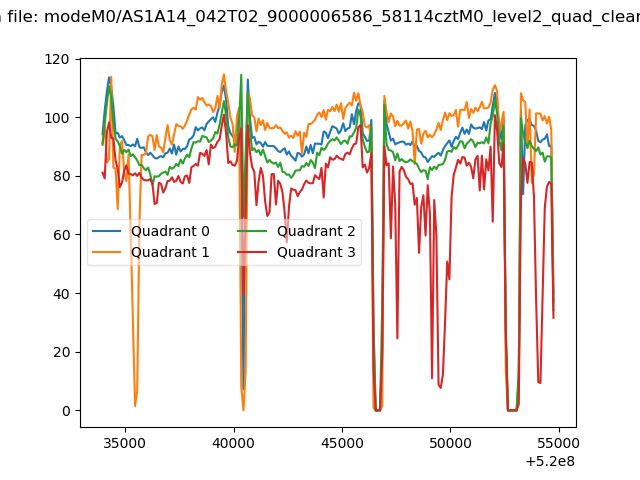

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

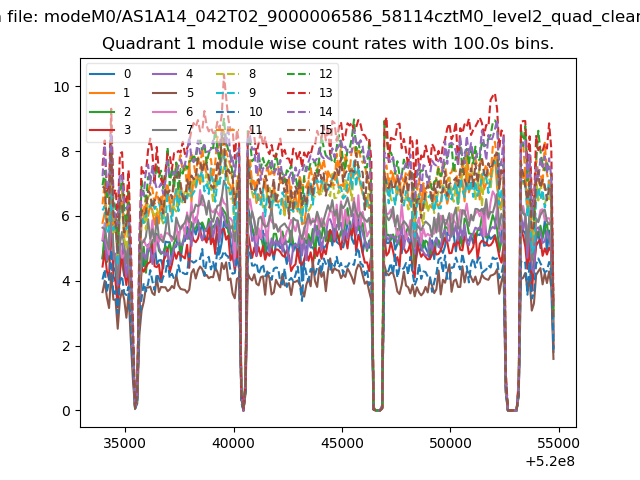

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

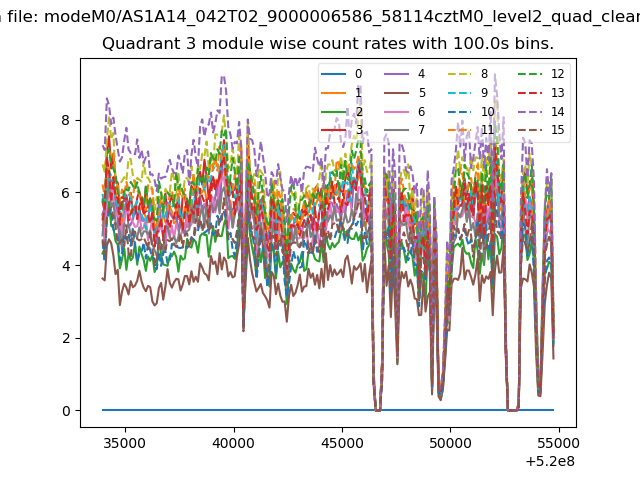

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

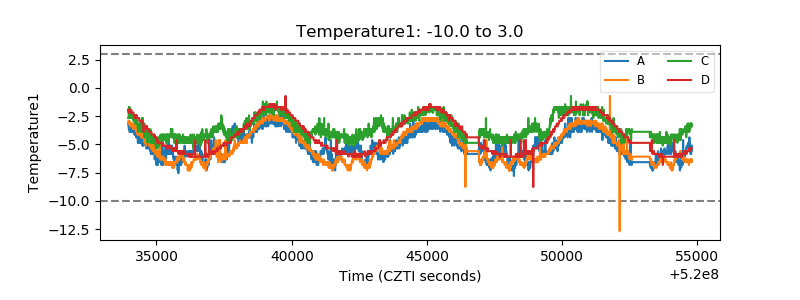

| Temperature 1 |  |

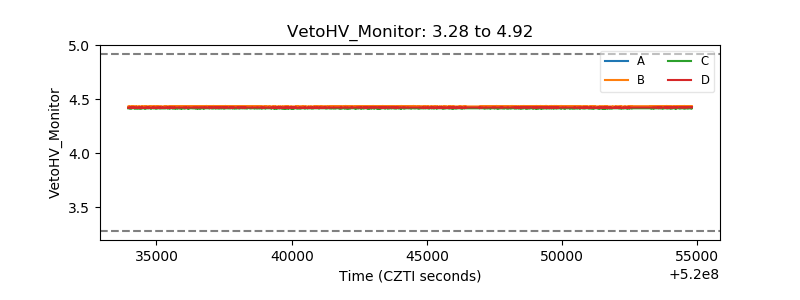

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

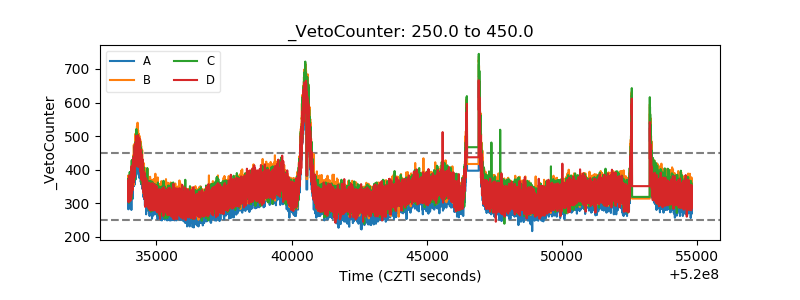

| Veto Counter |  |
