| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58117cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58117cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,559,040 | 104,074,560 |
| Size | 476.4 MB | 99.3 MB |
| Events in quadrant A | 3,297,530 | 711,533 |
| Events in quadrant B | 4,537,983 | 735,074 |
| Events in quadrant C | 3,181,027 | 670,855 |
| Events in quadrant D | 6,936,057 | 551,103 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14598 | 3 |
| B | 0 | 18013 | 2 |
| C | 0 | 14523 | 2 |
| D | 0 | 25505 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6936 | 144 | 2.076125% |
| B | 6937 | 278 | 4.007496% |
| C | 6937 | 126 | 1.816347% |
| D | 6937 | 1306 | 18.826582% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

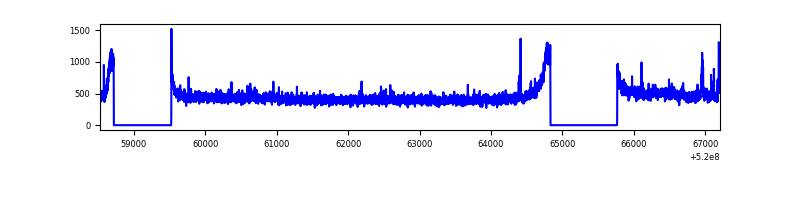

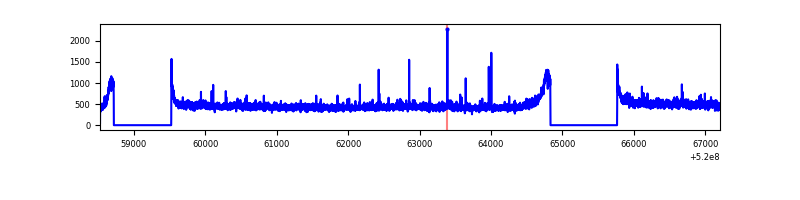

| A | 8676 | 6938 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8677 | 6939 | 35 | 35 | 0.40% | 0.50% |  |
| C | 8677 | 6939 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8677 | 6939 | 961 | 961 | 11.08% | 13.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 89619 | 439.45 | 809 | 788 | 202.1 |
| A | 3 | 14 | 19183 | 91.0 | 809 | 788 | 202.1 |
| A | 4 | 3 | 15636 | 73.45 | 809 | 788 | 202.1 |
| B | 10 | 128 | 828887 | 4892.39 | 785 | 755 | 169.3 |
| B | 5 | 172 | 326626 | 1925.16 | 785 | 755 | 169.3 |
| B | 0 | 63 | 82323 | 481.88 | 785 | 755 | 169.3 |
| C | 1 | 16 | 56874 | 258.09 | 786 | 779 | 217.3 |
| C | 13 | 3 | 30477 | 136.64 | 786 | 779 | 217.3 |
| C | 14 | 254 | 13201 | 57.15 | 786 | 779 | 217.3 |
| D | 12 | 110 | 3504635 | 16720.24 | 737 | 706 | 209.6 |
| D | 2 | 249 | 218190 | 1037.8 | 737 | 706 | 209.6 |
| D | 7 | 222 | 92492 | 437.99 | 737 | 706 | 209.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

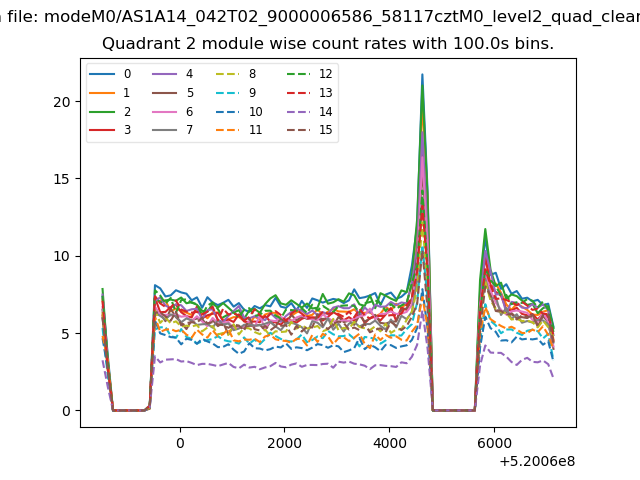

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

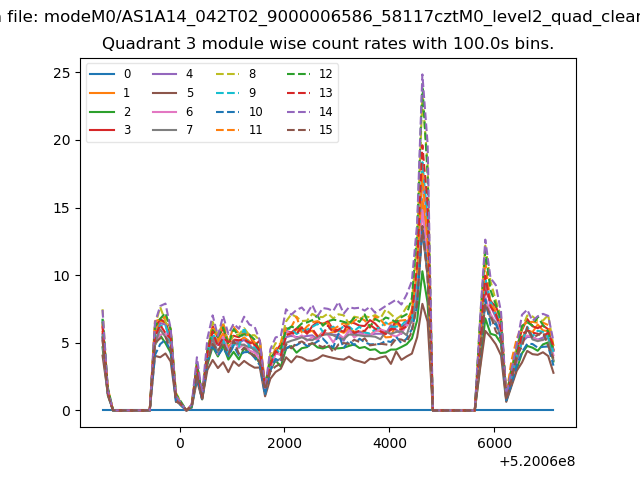

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

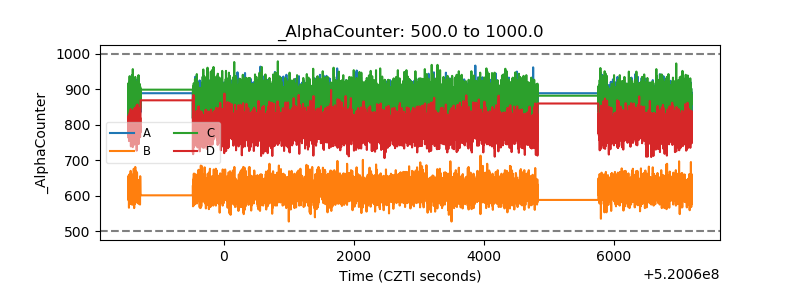

| Alpha Counter |  |

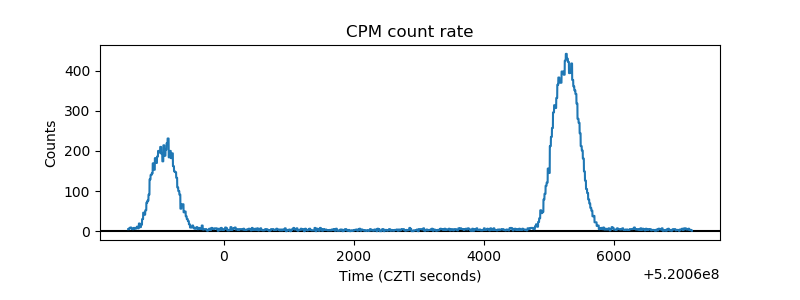

| _CPM_Rate |  |

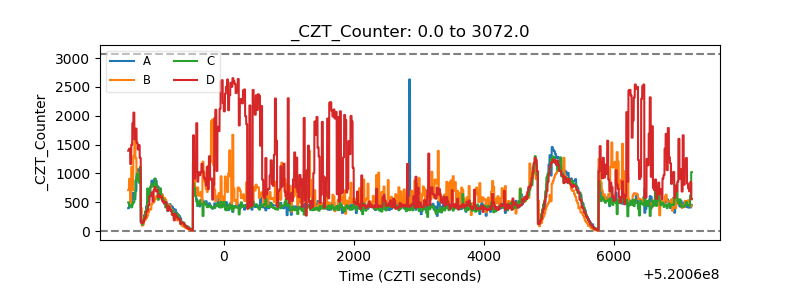

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

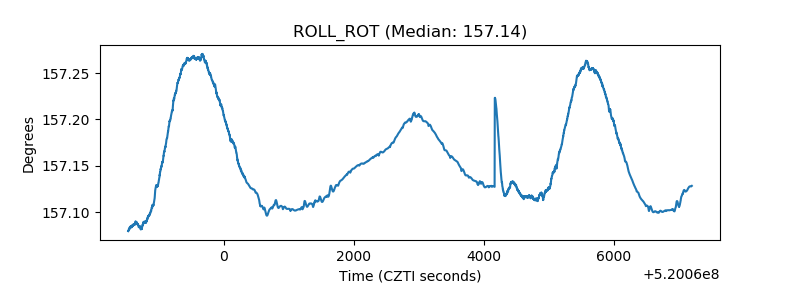

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
