| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58121cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58121cztM0_level2_quad_clean.evt |
| Size (bytes) | 742,927,680 | 77,771,520 |
| Size | 708.5 MB | 74.2 MB |
| Events in quadrant A | 3,065,612 | 635,738 |
| Events in quadrant B | 8,987,278 | 464,566 |
| Events in quadrant C | 3,087,902 | 601,705 |
| Events in quadrant D | 11,873,902 | 215,481 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13236 | 1 |
| B | 0 | 30980 | 1 |
| C | 0 | 13644 | 1 |
| D | 0 | 39616 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6261 | 130 | 2.076346% |
| B | 6262 | 2302 | 36.761418% |
| C | 6262 | 115 | 1.836474% |
| D | 6261 | 4023 | 64.254911% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7331 | 6262 | 12 | 12 | 0.16% | 0.19% |  |
| B | 7332 | 6262 | 1733 | 1733 | 23.64% | 27.67% |  |
| C | 7332 | 6263 | 21 | 21 | 0.29% | 0.34% |  |
| D | 7331 | 6262 | 3572 | 3572 | 48.72% | 57.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 98407 | 544.24 | 725 | 705 | 179.5 |
| A | 10 | 251 | 85781 | 473.91 | 725 | 705 | 179.5 |
| A | 3 | 14 | 27171 | 147.43 | 725 | 705 | 179.5 |
| B | 10 | 128 | 4376965 | 35135.83 | 581 | 559 | 124.6 |
| B | 5 | 172 | 1025488 | 8228.61 | 581 | 559 | 124.6 |
| B | 2 | 249 | 879664 | 7057.87 | 581 | 559 | 124.6 |
| C | 1 | 16 | 141805 | 741.88 | 696 | 690 | 190.2 |
| C | 12 | 252 | 88910 | 463.8 | 696 | 690 | 190.2 |
| C | 13 | 3 | 45237 | 234.2 | 696 | 690 | 190.2 |
| D | 12 | 110 | 8531223 | 61042.18 | 492 | 469 | 139.8 |
| D | 3 | 224 | 650356 | 4650.29 | 492 | 469 | 139.8 |
| D | 7 | 222 | 252386 | 1802.6 | 492 | 469 | 139.8 |

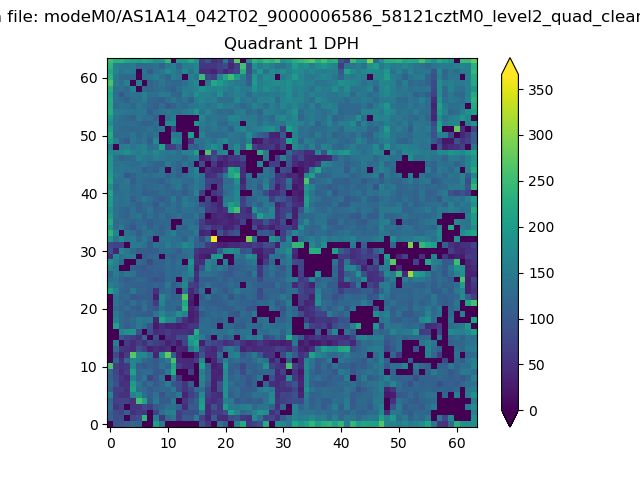

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

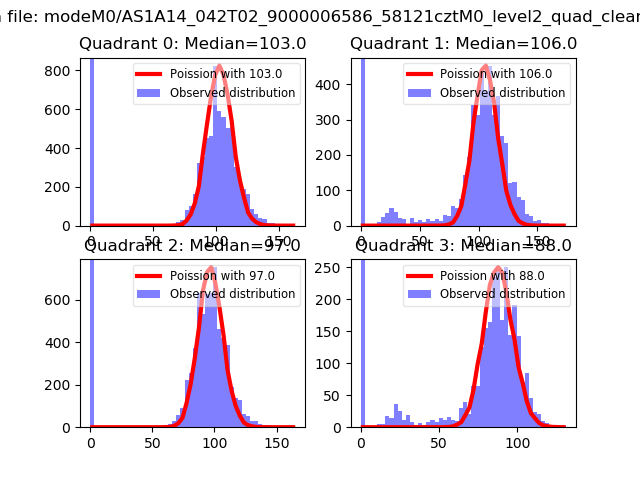

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

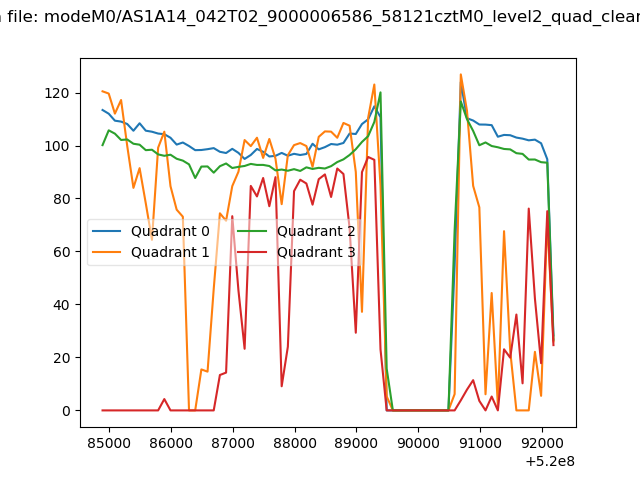

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

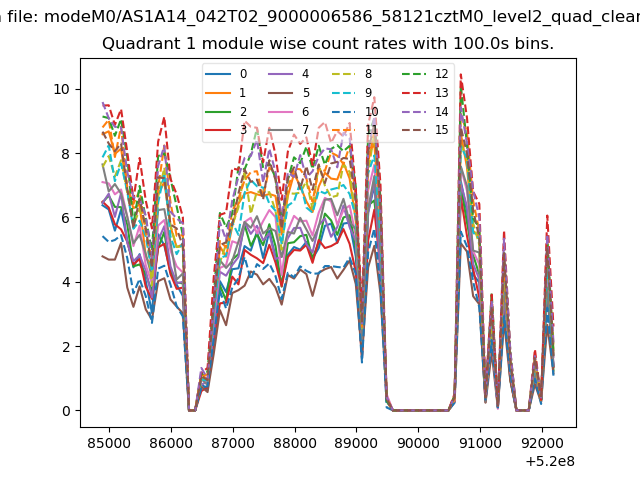

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

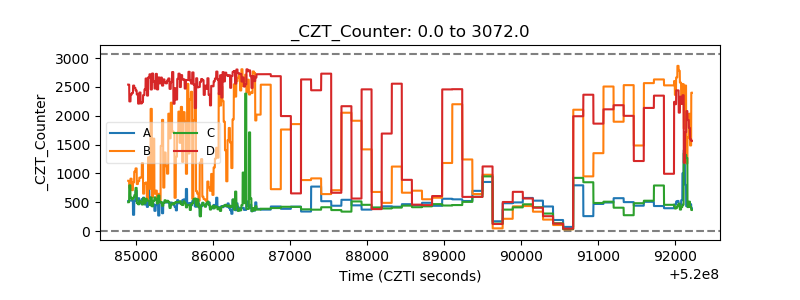

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

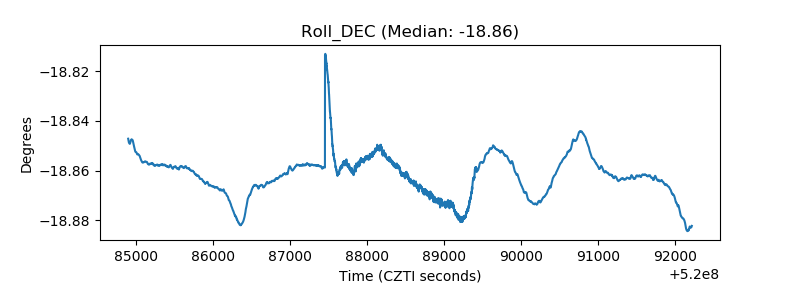

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

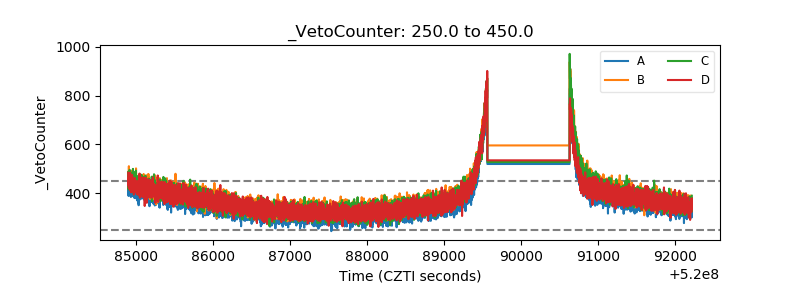

| Veto Counter |  |
