| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58122cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58122cztM0_level2_quad_clean.evt |
| Size (bytes) | 777,651,840 | 73,710,720 |
| Size | 741.6 MB | 70.3 MB |
| Events in quadrant A | 2,984,443 | 617,956 |
| Events in quadrant B | 8,282,015 | 487,751 |
| Events in quadrant C | 2,899,716 | 588,363 |
| Events in quadrant D | 14,135,486 | 102,551 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13254 | 1 |
| B | 0 | 29002 | 4 |
| C | 0 | 13353 | 1 |
| D | 0 | 46162 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6239 | 99 | 1.586793% |
| B | 6239 | 1831 | 29.347652% |
| C | 6239 | 72 | 1.154031% |
| D | 6239 | 5238 | 83.955762% |

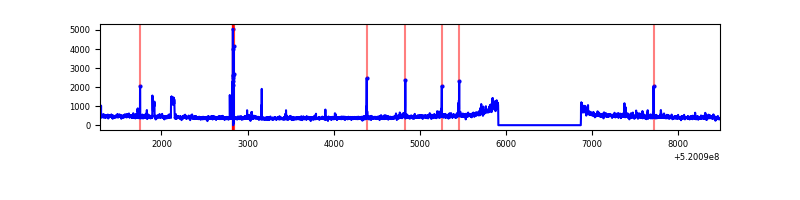

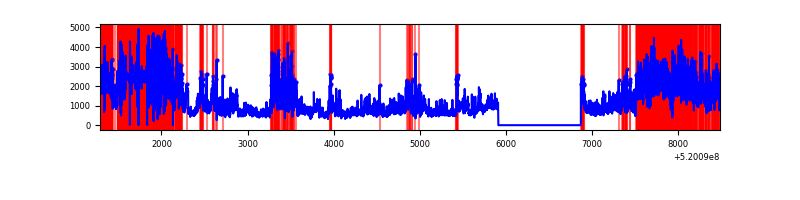

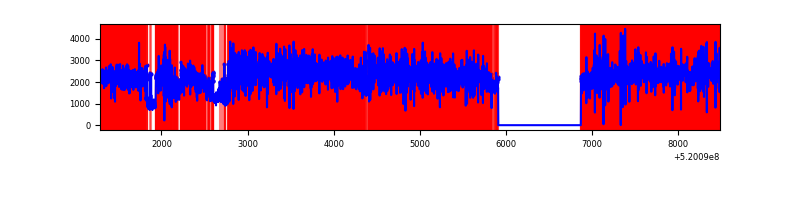

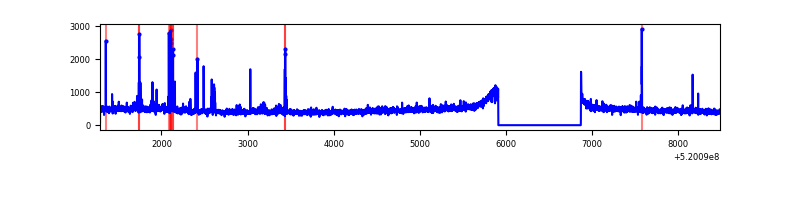

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7199 | 6240 | 14 | 14 | 0.19% | 0.22% |  |
| B | 7199 | 6239 | 1415 | 1415 | 19.66% | 22.68% |  |
| C | 7199 | 6239 | 15 | 15 | 0.21% | 0.24% |  |
| D | 7199 | 6240 | 4821 | 4821 | 66.97% | 77.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 91696 | 521.54 | 705 | 686 | 174.5 |
| A | 11 | 3 | 66985 | 379.93 | 705 | 686 | 174.5 |
| A | 3 | 14 | 47518 | 268.37 | 705 | 686 | 174.5 |
| B | 10 | 128 | 3080088 | 23898.98 | 595 | 574 | 128.9 |
| B | 5 | 172 | 2243950 | 17410.02 | 595 | 574 | 128.9 |
| B | 5 | 185 | 305436 | 2365.92 | 595 | 574 | 128.9 |
| C | 1 | 16 | 130734 | 697.49 | 676 | 669 | 186.5 |
| C | 12 | 252 | 56925 | 301.68 | 676 | 669 | 186.5 |
| C | 1 | 60 | 39527 | 208.38 | 676 | 669 | 186.5 |
| D | 12 | 110 | 11639837 | 92924.15 | 430 | 410 | 125.3 |
| D | 8 | 160 | 585184 | 4668.58 | 430 | 410 | 125.3 |
| D | 8 | 240 | 108764 | 865.05 | 430 | 410 | 125.3 |

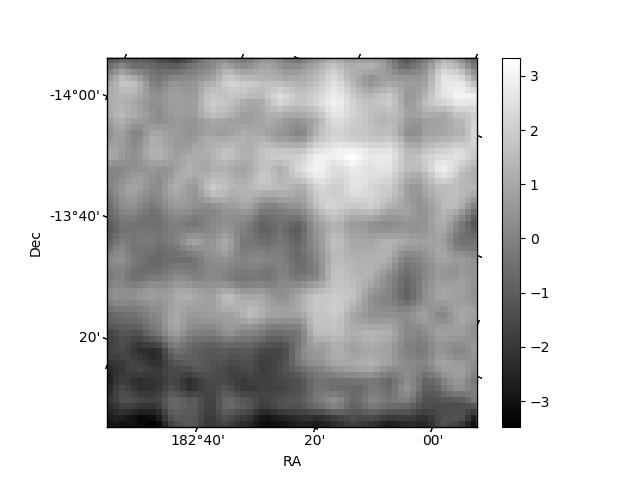

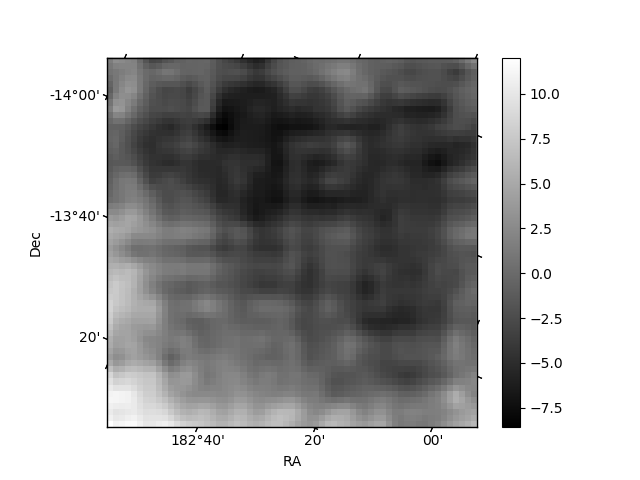

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

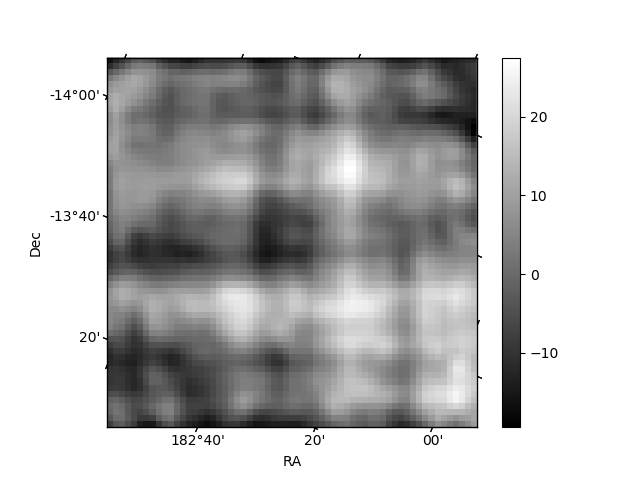

| Plot type | Count rate plots | Images |
|---|---|---|

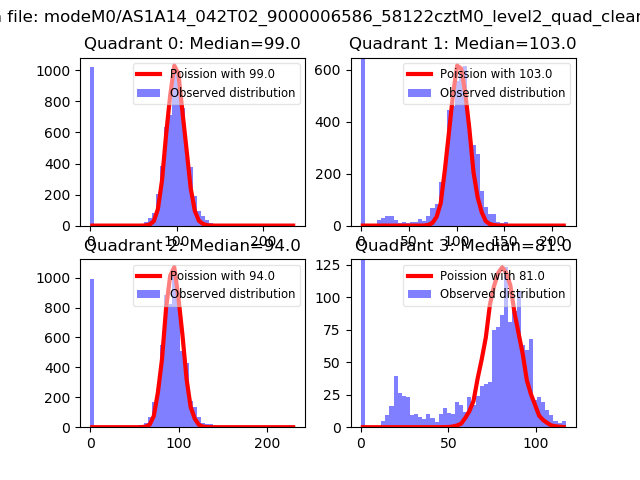

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

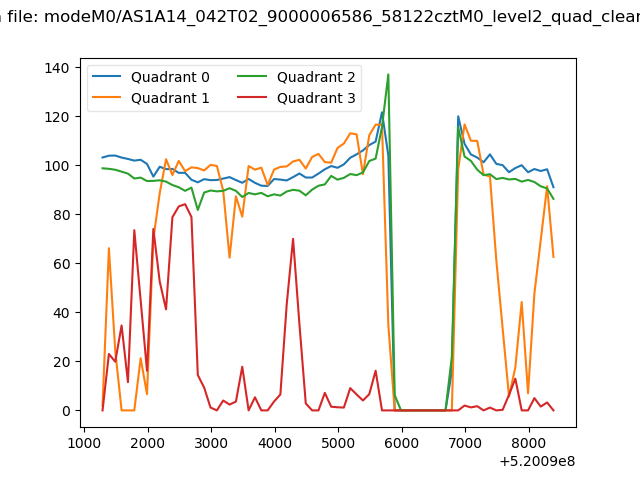

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

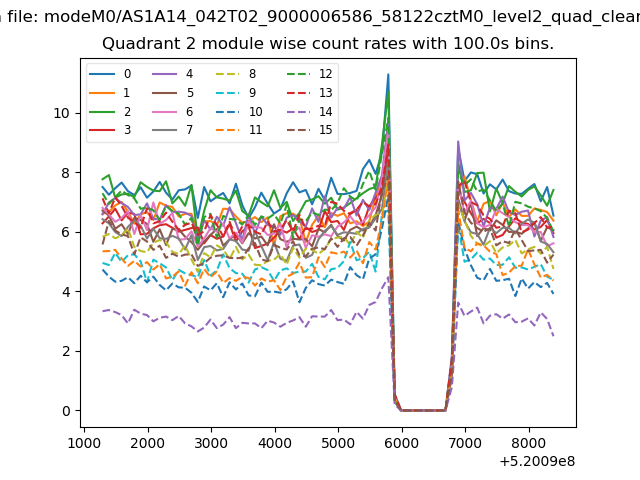

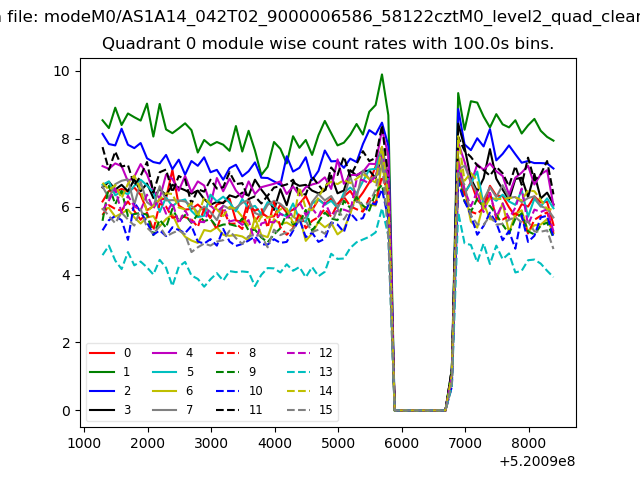

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

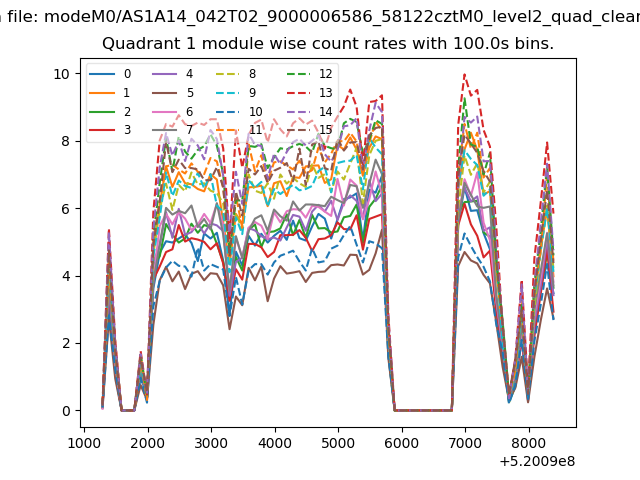

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

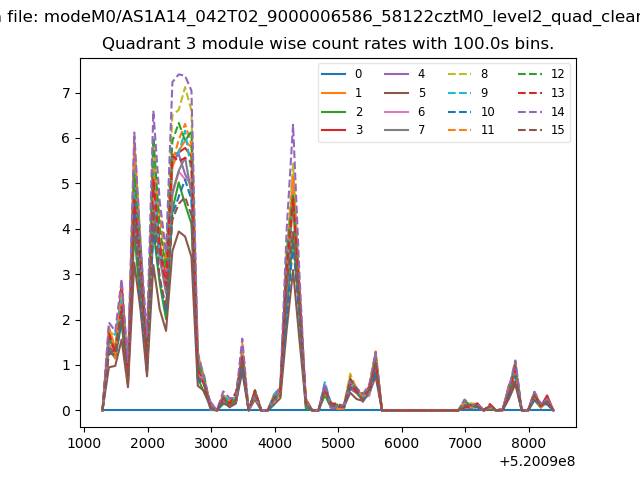

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

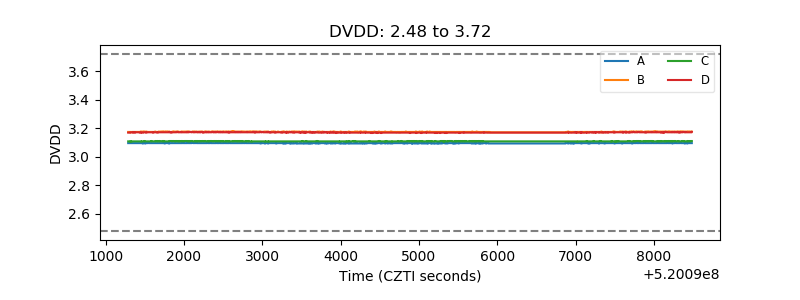

| D_VDD |  |

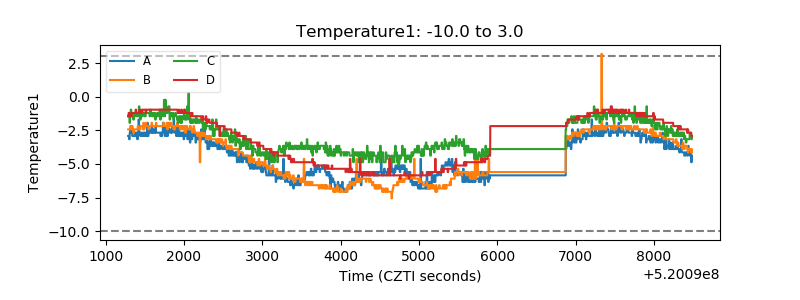

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

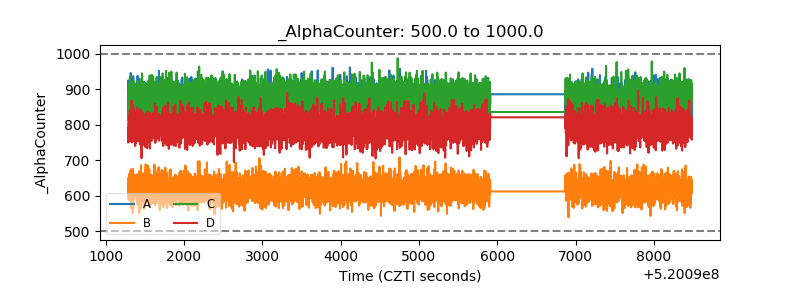

| Alpha Counter |  |
| _CPM_Rate |  |

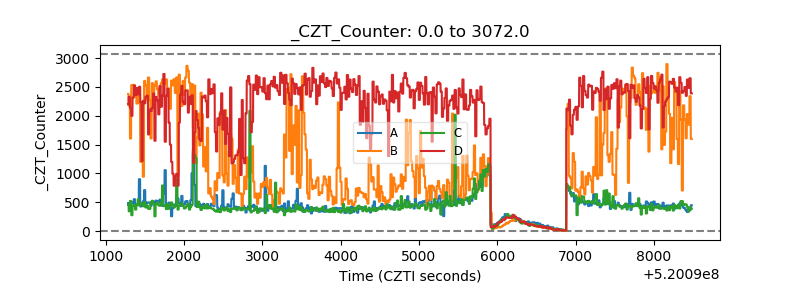

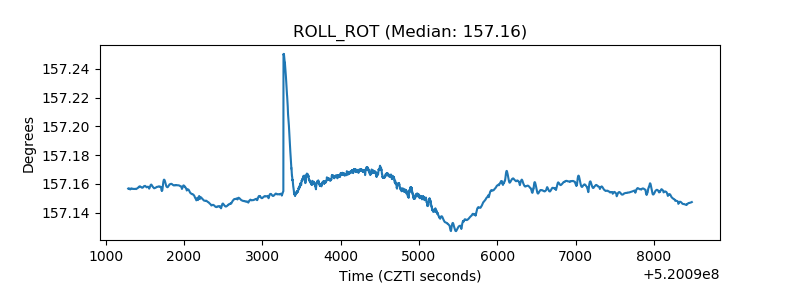

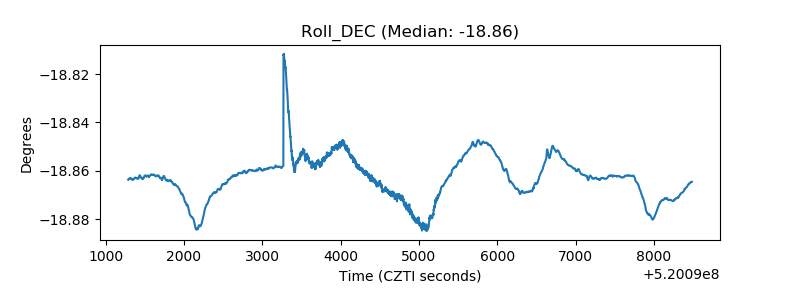

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

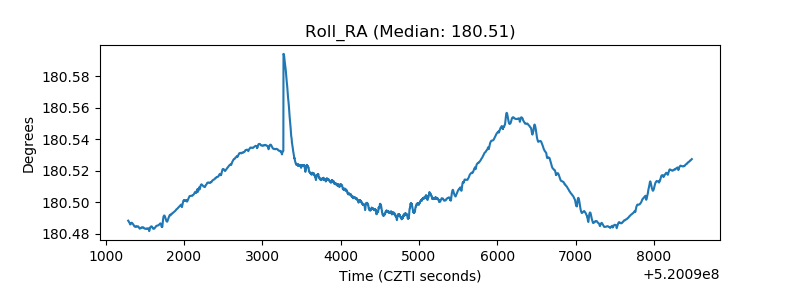

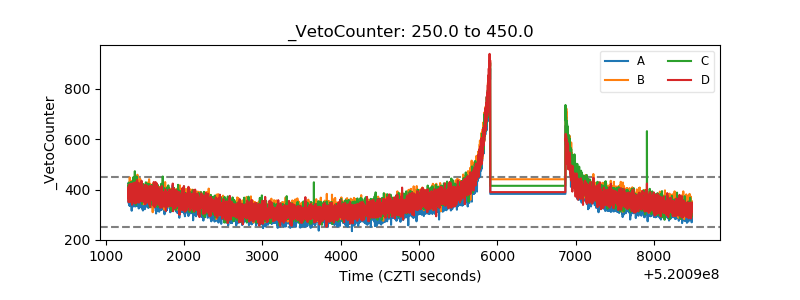

| _Roll_RA |  |
| Veto Counter |  |
