| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58124cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58124cztM0_level2_quad_clean.evt |
| Size (bytes) | 965,620,800 | 92,350,080 |
| Size | 920.9 MB | 88.1 MB |
| Events in quadrant A | 3,572,853 | 774,952 |
| Events in quadrant B | 9,958,241 | 629,485 |
| Events in quadrant C | 3,869,014 | 731,168 |
| Events in quadrant D | 17,732,148 | 112,406 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16419 | 1 |
| B | 0 | 34994 | 1 |
| C | 0 | 17436 | 1 |
| D | 0 | 57931 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7889 | 34 | 0.430980% |
| B | 7889 | 2029 | 25.719356% |
| C | 7889 | 51 | 0.646470% |
| D | 7889 | 6754 | 85.612879% |

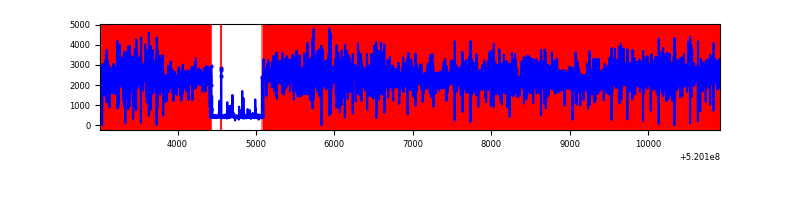

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7904 | 7890 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7904 | 7890 | 1322 | 1322 | 16.73% | 16.76% |  |
| C | 7904 | 7890 | 32 | 32 | 0.40% | 0.41% |  |
| D | 7904 | 7889 | 6286 | 6286 | 79.53% | 79.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 43744 | 192.69 | 891 | 867 | 222.5 |
| A | 10 | 251 | 31599 | 138.11 | 891 | 867 | 222.5 |
| A | 4 | 3 | 24470 | 106.07 | 891 | 867 | 222.5 |
| B | 10 | 128 | 3397217 | 20088.68 | 783 | 750 | 169.1 |
| B | 5 | 172 | 2707415 | 16008.79 | 783 | 750 | 169.1 |
| B | 10 | 247 | 187247 | 1103.05 | 783 | 750 | 169.1 |
| C | 6 | 223 | 234665 | 999.97 | 855 | 846 | 233.8 |
| C | 15 | 208 | 112079 | 475.71 | 855 | 846 | 233.8 |
| C | 9 | 38 | 78393 | 331.64 | 855 | 846 | 233.8 |
| D | 12 | 110 | 15369112 | 106326.07 | 503 | 482 | 144.5 |
| D | 8 | 160 | 131878 | 909.05 | 503 | 482 | 144.5 |
| D | 8 | 240 | 73906 | 507.98 | 503 | 482 | 144.5 |

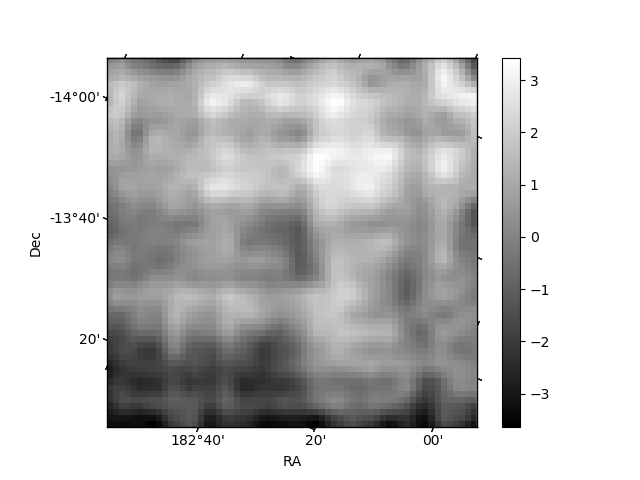

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

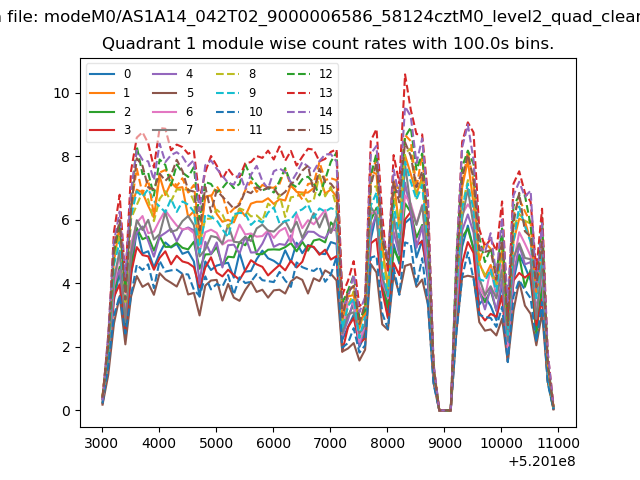

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

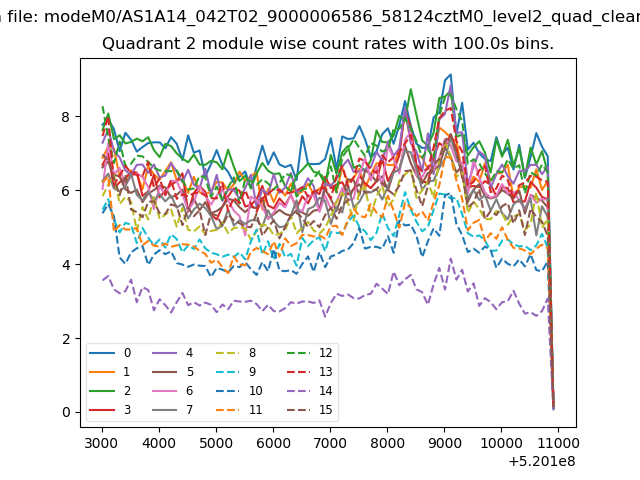

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

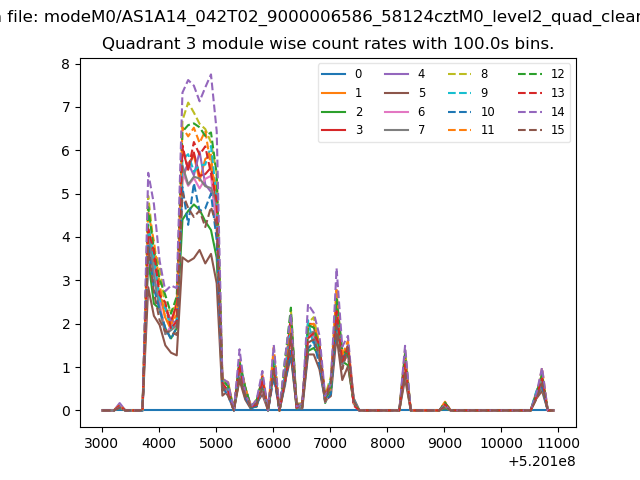

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

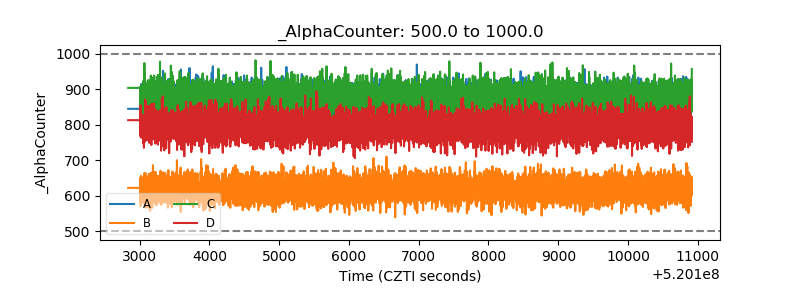

| Alpha Counter |  |
| _CPM_Rate |  |

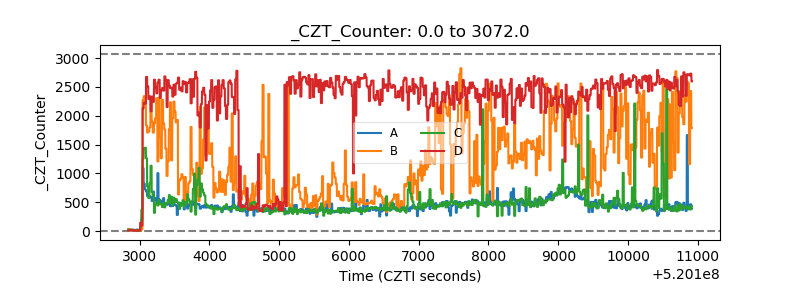

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

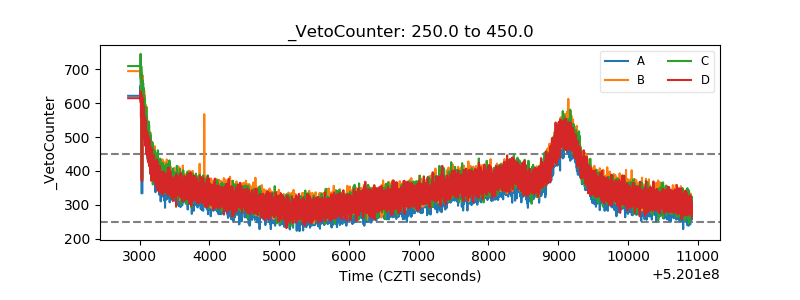

| Veto Counter |  |
