| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58125cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58125cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,022,503,680 | 80,115,840 |
| Size | 975.1 MB | 76.4 MB |
| Events in quadrant A | 3,827,286 | 690,526 |
| Events in quadrant B | 11,845,637 | 509,411 |
| Events in quadrant C | 3,803,847 | 663,841 |
| Events in quadrant D | 17,799,125 | 46,141 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16774 | 0 |
| B | 0 | 40290 | 0 |
| C | 0 | 16807 | 0 |
| D | 0 | 57706 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7407 | 248 | 3.348184% |
| B | 7407 | 2869 | 38.733630% |
| C | 7407 | 123 | 1.660591% |
| D | 7407 | 6973 | 94.140678% |

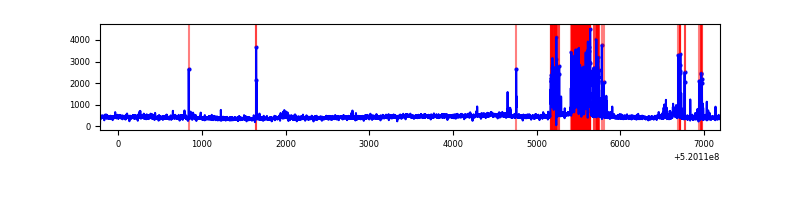

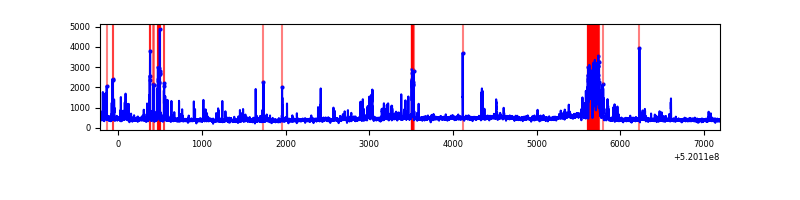

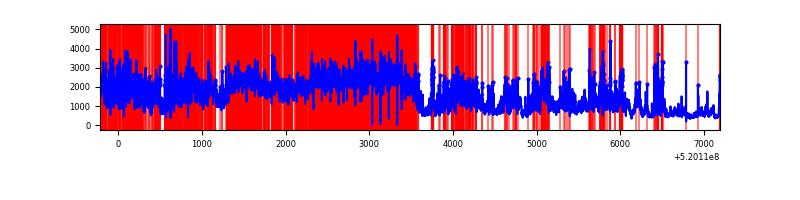

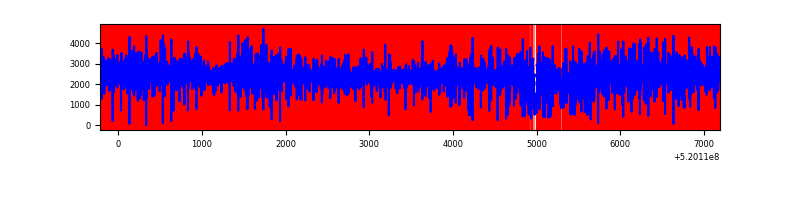

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7407 | 7407 | 159 | 159 | 2.15% | 2.15% |  |
| B | 7407 | 7407 | 2458 | 2458 | 33.18% | 33.18% |  |
| C | 7407 | 7407 | 114 | 114 | 1.54% | 1.54% |  |
| D | 7407 | 7406 | 6443 | 6443 | 86.99% | 87.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 563276 | 2863.42 | 789 | 768 | 196.4 |
| A | 3 | 245 | 47940 | 240.13 | 789 | 768 | 196.4 |
| A | 2 | 79 | 43634 | 218.21 | 789 | 768 | 196.4 |
| B | 10 | 128 | 8258733 | 55816.52 | 680 | 652 | 148.0 |
| B | 5 | 172 | 335384 | 2262.46 | 680 | 652 | 148.0 |
| B | 2 | 249 | 201528 | 1357.72 | 680 | 652 | 148.0 |
| C | 15 | 208 | 430516 | 2039.04 | 766 | 762 | 210.8 |
| C | 6 | 223 | 211114 | 998.05 | 766 | 762 | 210.8 |
| C | 12 | 252 | 121341 | 572.11 | 766 | 762 | 210.8 |
| D | 12 | 110 | 15839795 | 139407.88 | 397 | 379 | 113.6 |
| D | 8 | 240 | 193535 | 1700.03 | 397 | 379 | 113.6 |
| D | 2 | 249 | 71401 | 625.09 | 397 | 379 | 113.6 |

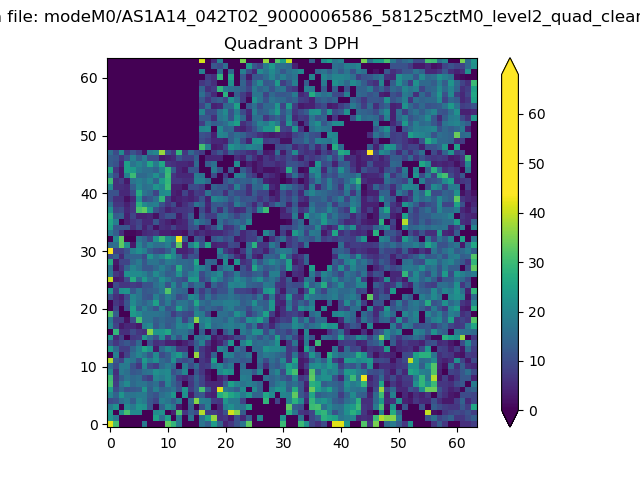

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

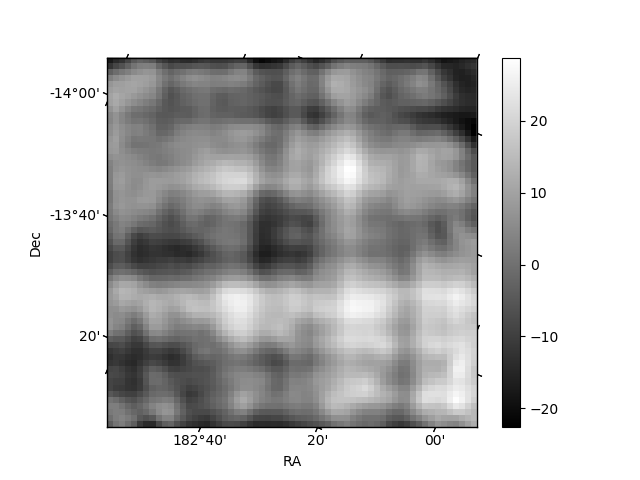

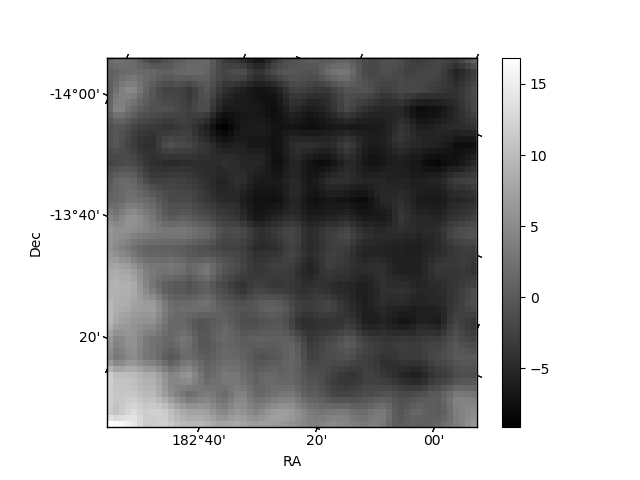

| Plot type | Count rate plots | Images |
|---|---|---|

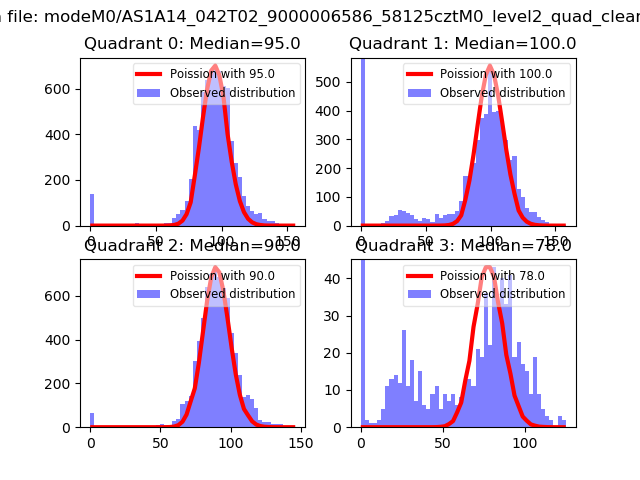

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

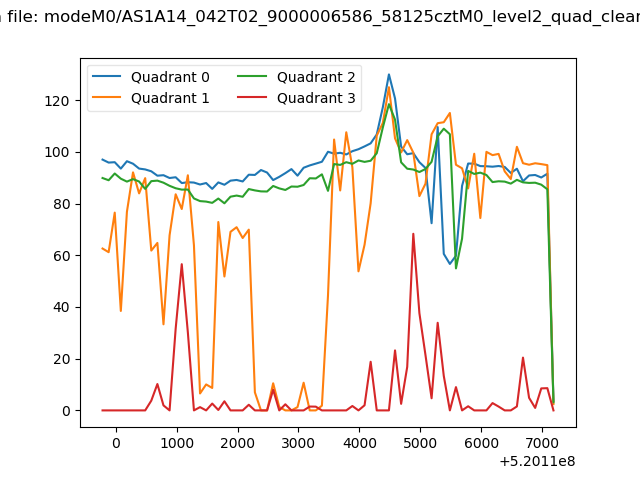

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

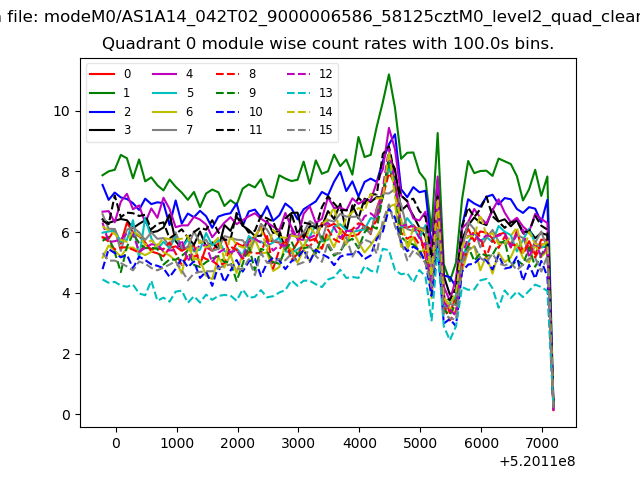

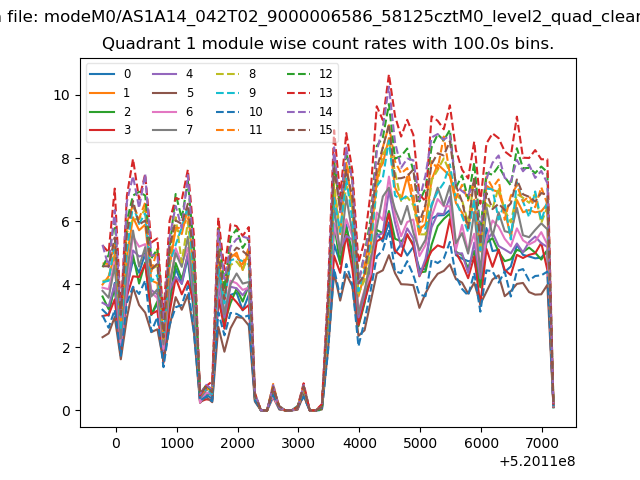

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

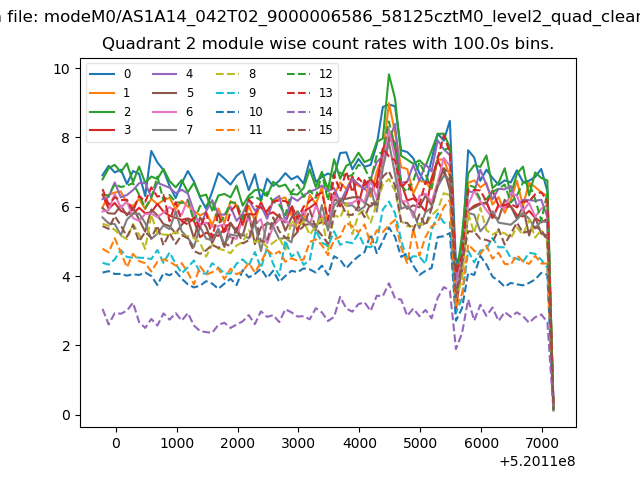

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

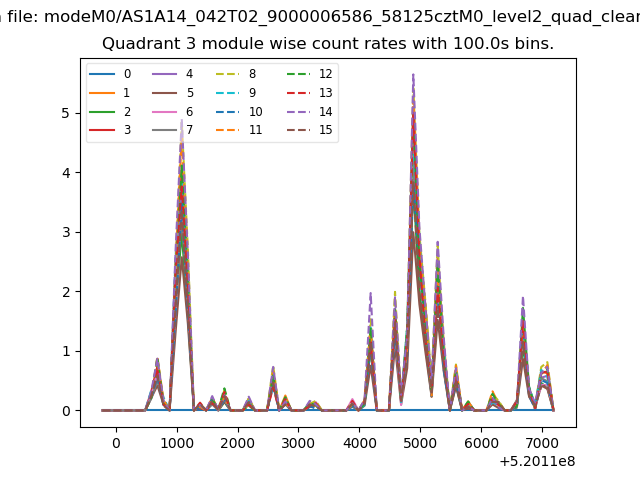

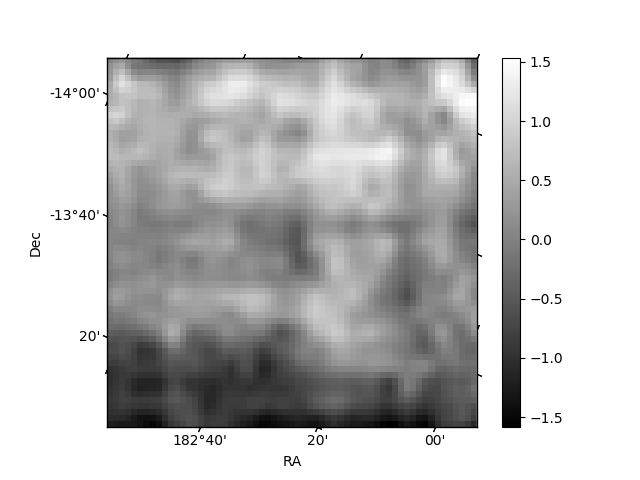

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

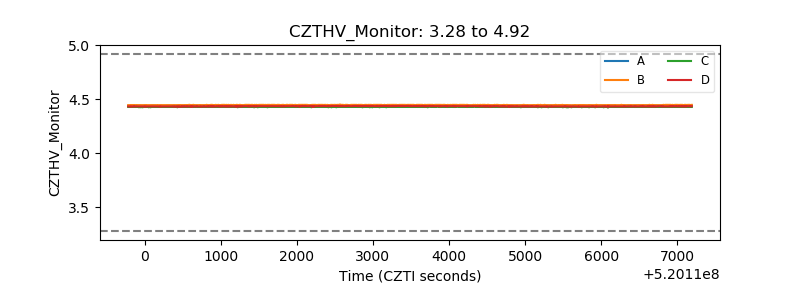

| CZT HV Monitor |  |

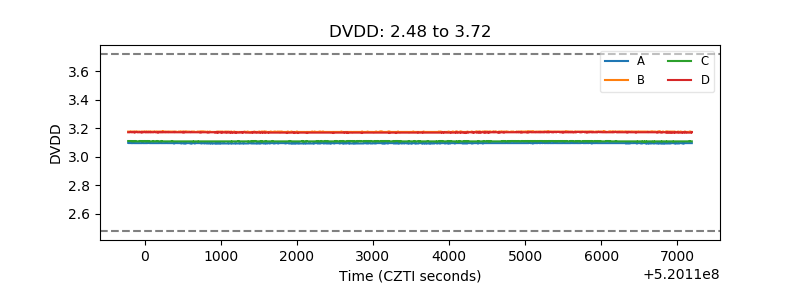

| D_VDD |  |

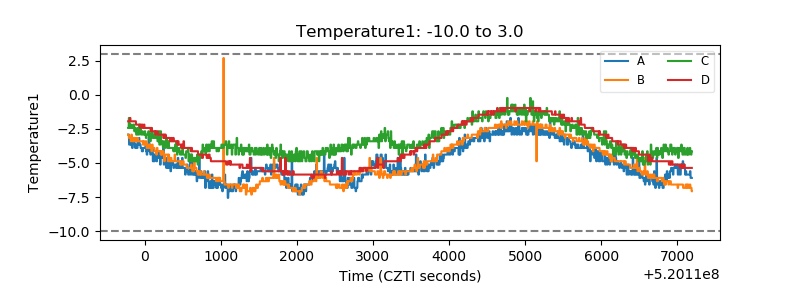

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

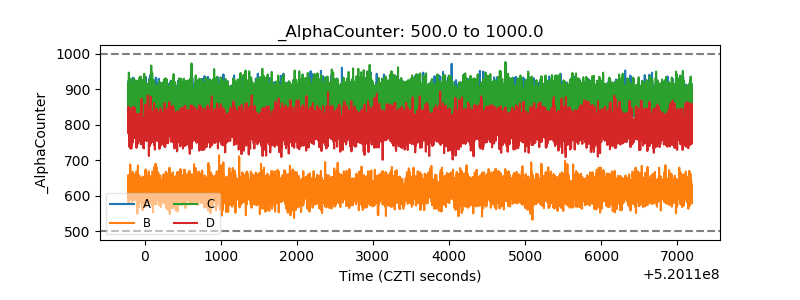

| Alpha Counter |  |

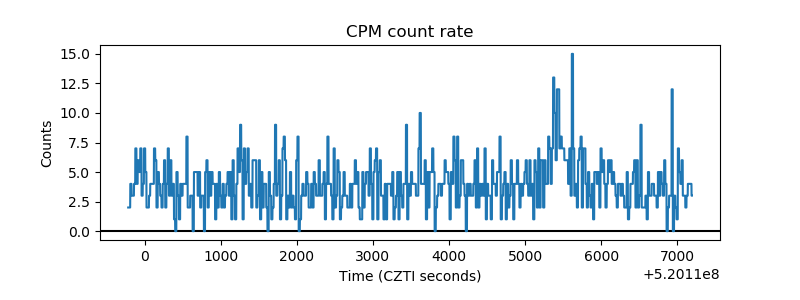

| _CPM_Rate |  |

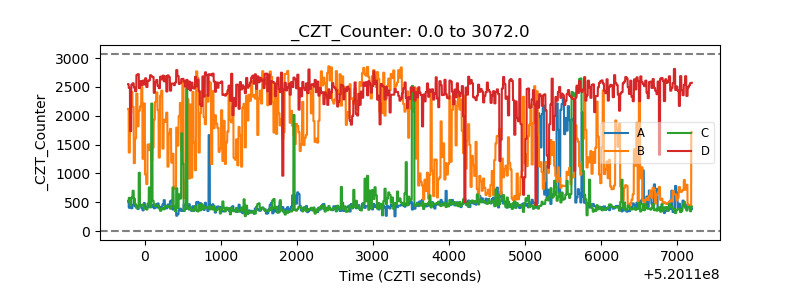

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

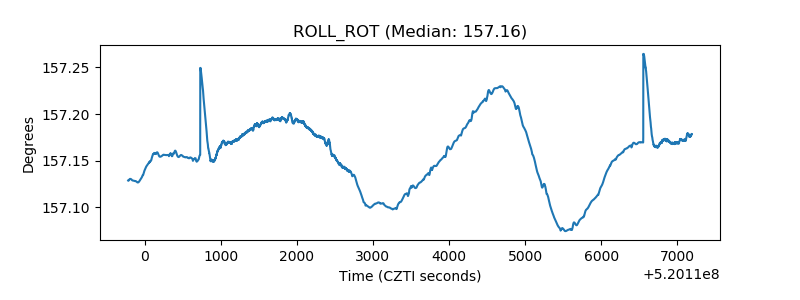

| _ROLL_ROT |  |

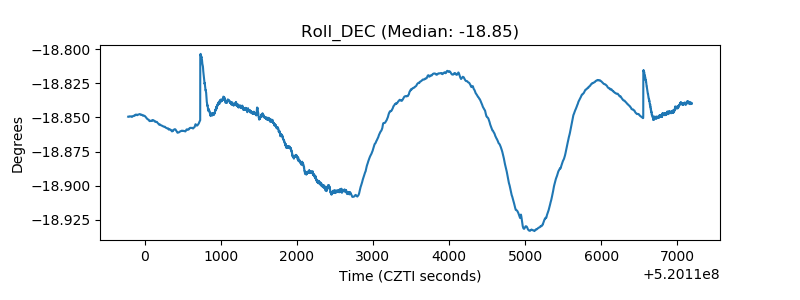

| _Roll_DEC |  |

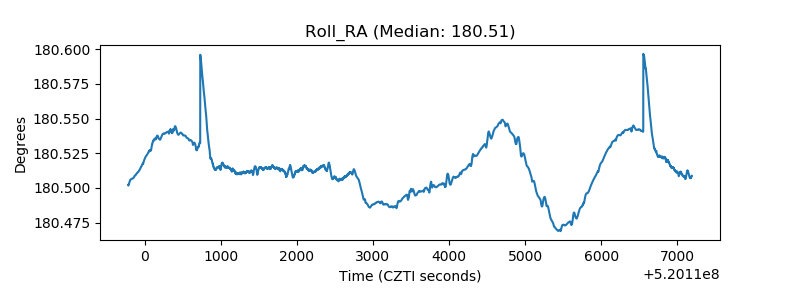

| _Roll_RA |  |

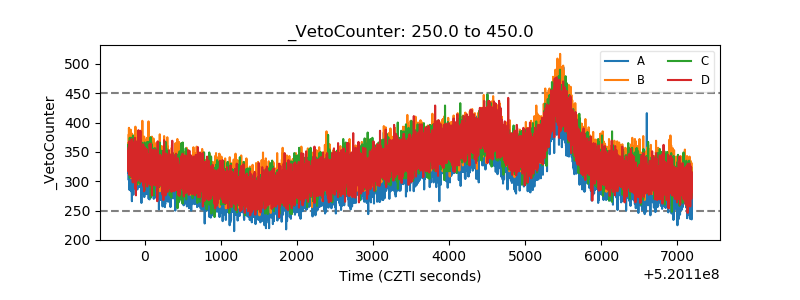

| Veto Counter |  |
