| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_042T02_9000006586_58126cztM0_level2.fits | modeM0/AS1A14_042T02_9000006586_58126cztM0_level2_quad_clean.evt |
| Size (bytes) | 976,697,280 | 98,219,520 |
| Size | 931.5 MB | 93.7 MB |
| Events in quadrant A | 4,442,926 | 786,060 |
| Events in quadrant B | 6,555,103 | 794,319 |
| Events in quadrant C | 4,261,401 | 754,954 |
| Events in quadrant D | 20,241,926 | 54,599 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19369 | 0 |
| B | 0 | 25133 | 0 |
| C | 0 | 18794 | 0 |
| D | 0 | 65576 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8404 | 263 | 3.129462% |
| B | 8404 | 753 | 8.960019% |
| C | 8404 | 116 | 1.380295% |
| D | 8404 | 7916 | 94.193241% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8404 | 8404 | 165 | 165 | 1.96% | 1.96% |  |
| B | 8404 | 8404 | 474 | 474 | 5.64% | 5.64% |  |
| C | 8404 | 8404 | 99 | 99 | 1.18% | 1.18% |  |
| D | 8404 | 8404 | 7087 | 7087 | 84.33% | 84.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 662946 | 2900.5 | 920 | 894 | 228.3 |
| A | 2 | 79 | 98513 | 427.68 | 920 | 894 | 228.3 |
| A | 3 | 245 | 56087 | 241.8 | 920 | 894 | 228.3 |
| B | 10 | 128 | 1899642 | 9908.4 | 883 | 848 | 191.6 |
| B | 5 | 185 | 478531 | 2492.67 | 883 | 848 | 191.6 |
| B | 4 | 201 | 269870 | 1403.83 | 883 | 848 | 191.6 |
| C | 15 | 208 | 306205 | 1253.37 | 894 | 884 | 243.6 |
| C | 12 | 252 | 180322 | 736.61 | 894 | 884 | 243.6 |
| C | 6 | 223 | 88355 | 359.08 | 894 | 884 | 243.6 |
| D | 12 | 110 | 17997423 | 141236.35 | 449 | 428 | 127.4 |
| D | 1 | 3 | 179493 | 1405.26 | 449 | 428 | 127.4 |
| D | 3 | 224 | 66008 | 514.66 | 449 | 428 | 127.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

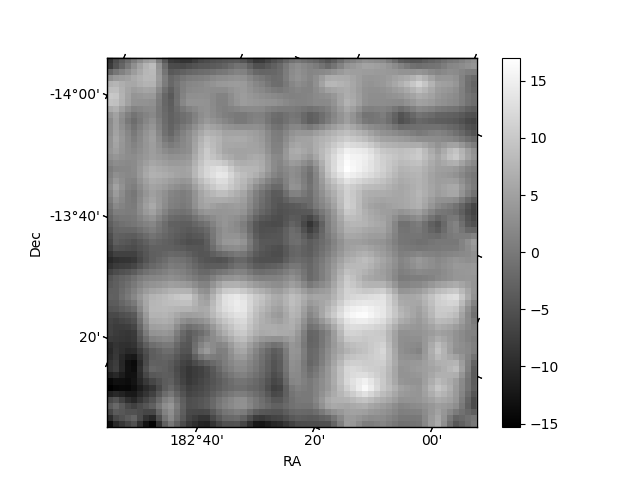

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

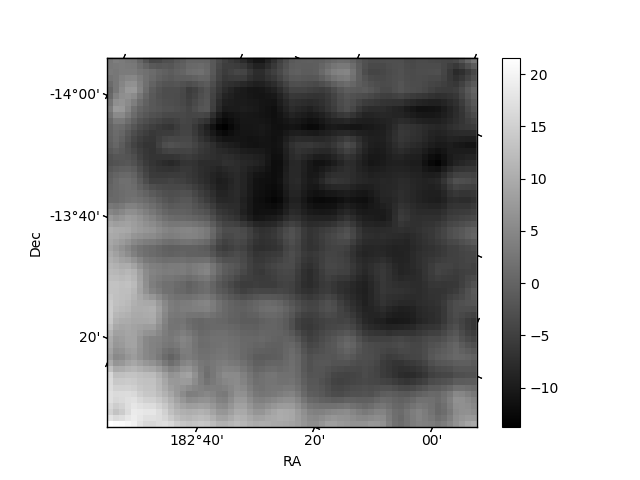

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

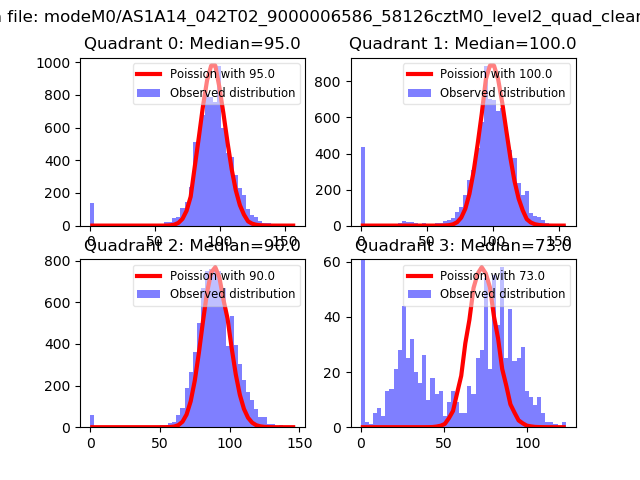

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

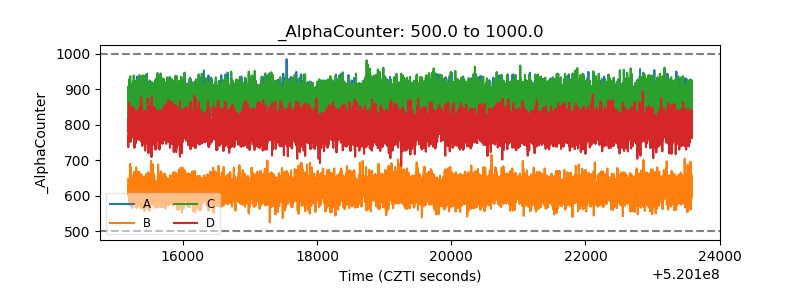

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

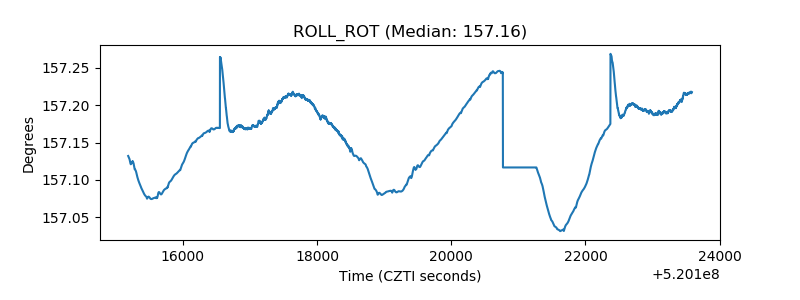

| _ROLL_ROT |  |

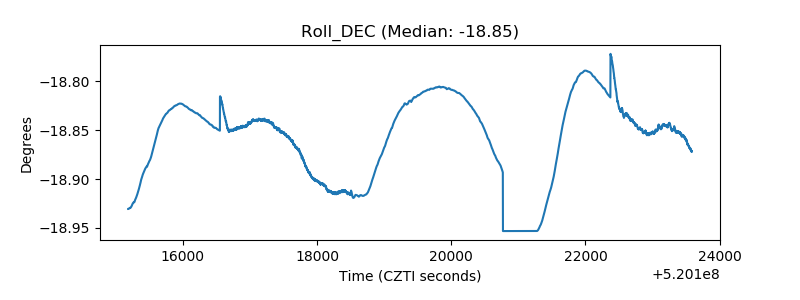

| _Roll_DEC |  |

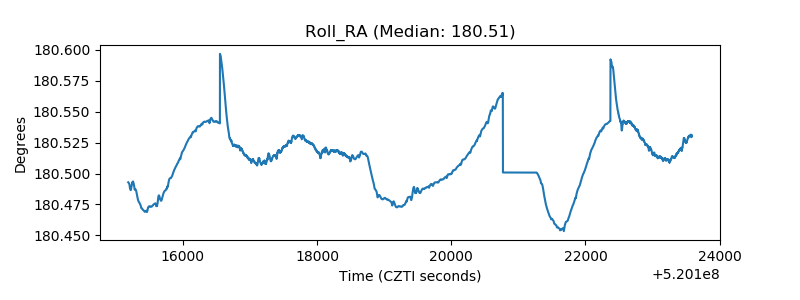

| _Roll_RA |  |

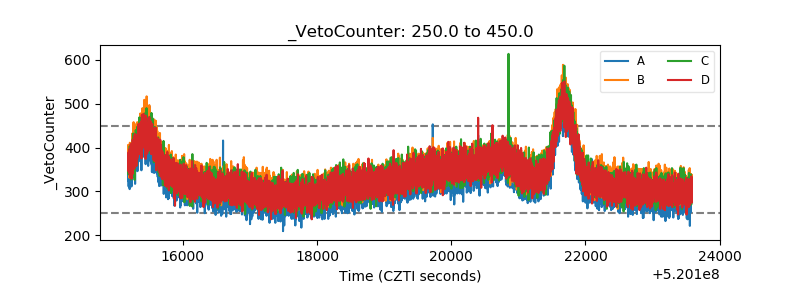

| Veto Counter |  |
